Varenr.: 13-1024-50
På lager hos vores leverandør

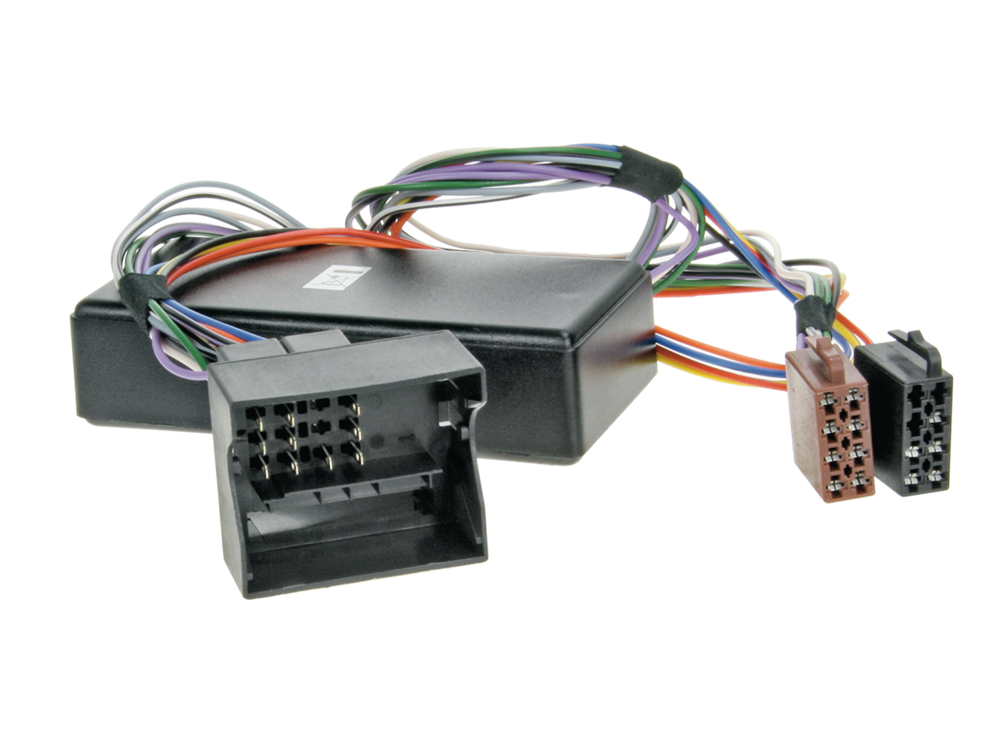

Active system adapter BMW
Active system adapters maintain the function of an OEM amplified system.
This allows the connection of an aftermarket HU to an OEM amplified system while retaining the OEM amplifier and connected speakers by adapting, matching or converting the output signals of the signal source to the signal input of the OEM amplifier.
Depending on the vehicle and the installed OEM amplified system, various functions such as fader, sound or subwoofer settings might be lost.
In individual cases, depending on the OEM system and the retrofit radio, increased noise or a switch-on or switch-off noise may occur.
Check functionality before final assembly.
connector: 40 Pin BMW Quadlock plug > ISO plug
vehicles with OEM Hifi System amplifier SA676A
vehicles without Harman Kardon DSP OEM system amplifier SA677A
input power 4 x 20 Watt max.
Vehicle applictation:
BMW 3er (E46) 07/1998 - 02/2007
BMW 5er (E39) 01/1996 - 05/2004
BMW X5 (E53) 03/2000 - 10/2003
vehicles with 17 Pin round connector and OEM amplified system > item: 13-1020-50
vehicles without DSP OEM amplified system I Bus controlled
