Universal (+PIONEER TYPE2) adapterkabel til CTS Ratbetjenings interface

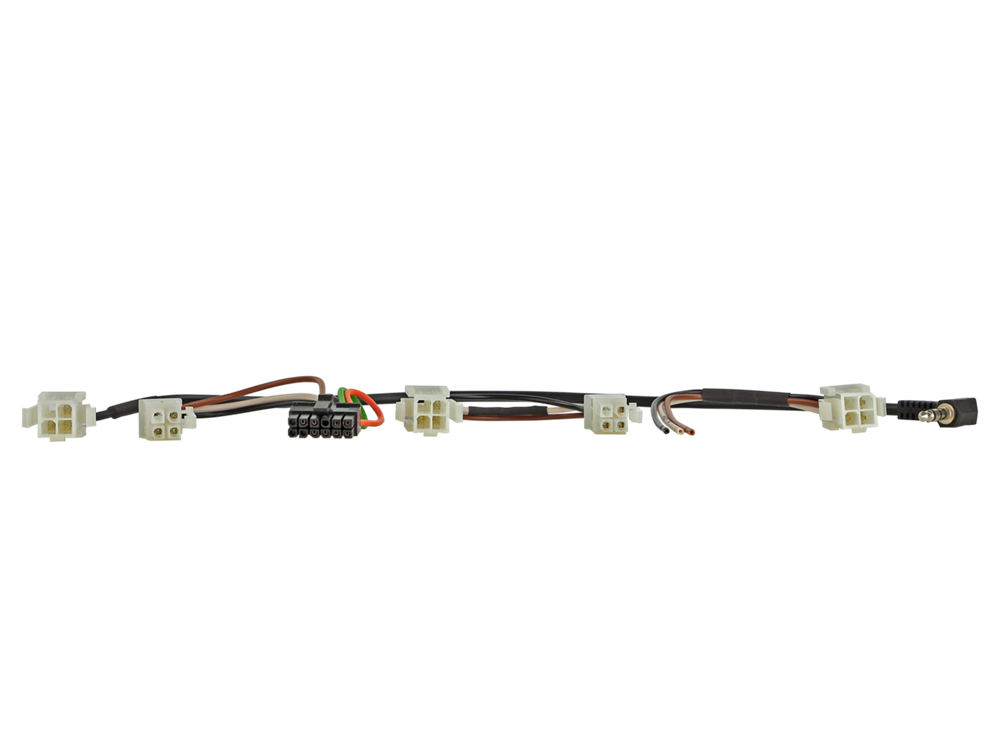

Adapterkabel til CTS (SWC.2) ratbetjeningsinterfaces.

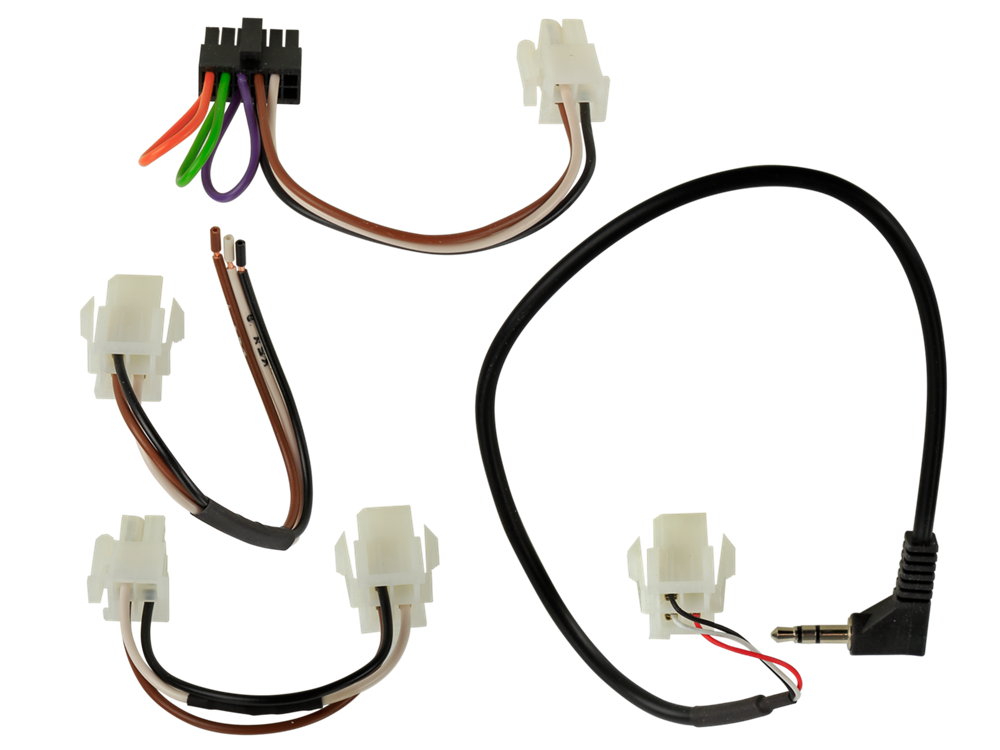

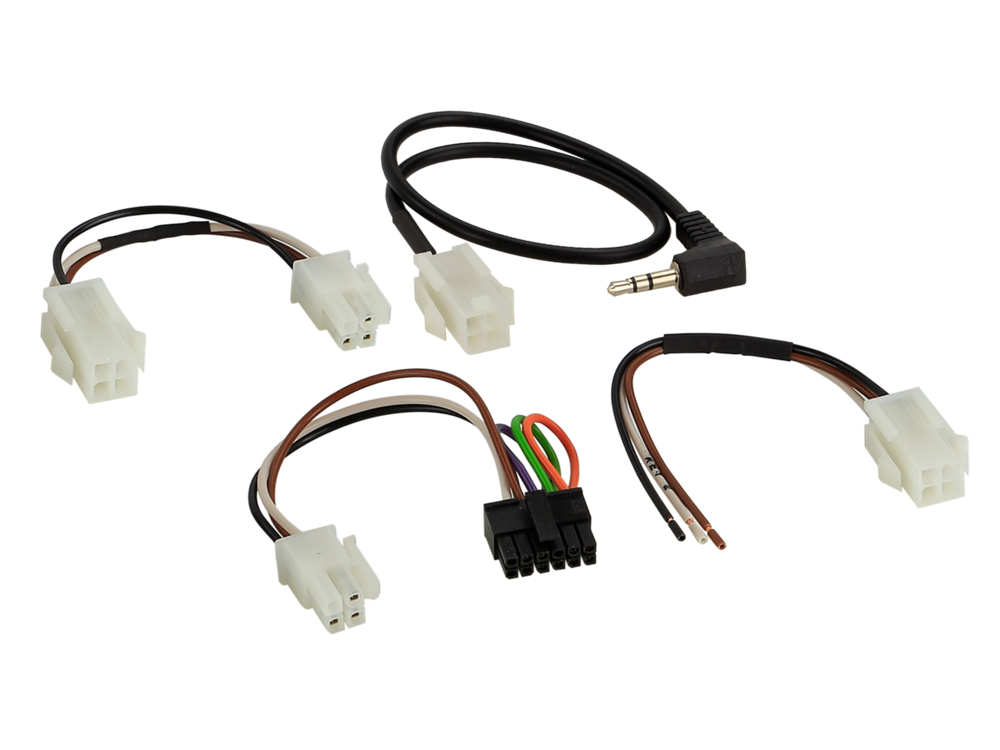

connector: 12 Pin Micro Fit > Molex Mini Fit

Molex Mini Fit > Key1 / Key2 / GND
Molex Mini Fit > 3,5mm Jack
Molex Mini Fit > Molex Mini Fit > Molex Mini Fit > 3,5mm Jack Pioneer AVH/DMH/SPH*

SWC radio specific lead ACV SWC interface 42sxx-xxx
SWC radio specific lead Infodapter

Usecase:

Alpine 3,5mm jack connector
Beat single wire connector
Blaupunkt 2010> Key1 / Key2 / (GND) connector
Blaupunkt 2010> 3,5mm Jack connector
China HU Key1 / Key2 / (GND) connector
Clarion 3,5mm Jack connector
ESX Key 1 / Key 2 connector
JVC 3,5mm Jack
JVC single wire connector
Kenwood single wire connector
Kenwood 2017> 3,5mm Jack connector
Kenwood 2020> Key1 / Key2 / GND connector
Nakamichi single wire connecto
Philips single wire connector
Panasonic single wire connector
Pioneer 3,5mm Jack connector
Pioneer AVH/DMH/SPH 3,5mm Jack connector
Snooper Key 1 / Key 2 connector
Sony 3,5mm Jack connector
XZent single wire connector
XZent Key1 / Key2 / GND connector
Zenec single wire connector

*Pioneer units 2021/2022> with flat glossy metallic back panel

Pioneer AVH
Pioneer AVH-A240BT
Pioneer AVH-A240DAB

Pioneer DMH
Pioneer DMH-A240BT
Pioneer DMH-A241BT
Pioneer DMH-A340DAB
Pioneer DMH-A245BT

Pioneer SPH
Pioneer SPH-DA160DAB
Pioneer SPH-DA360DAB
