Varenr.: CTSMC013.2
På lager hos vores leverandør
Download manual

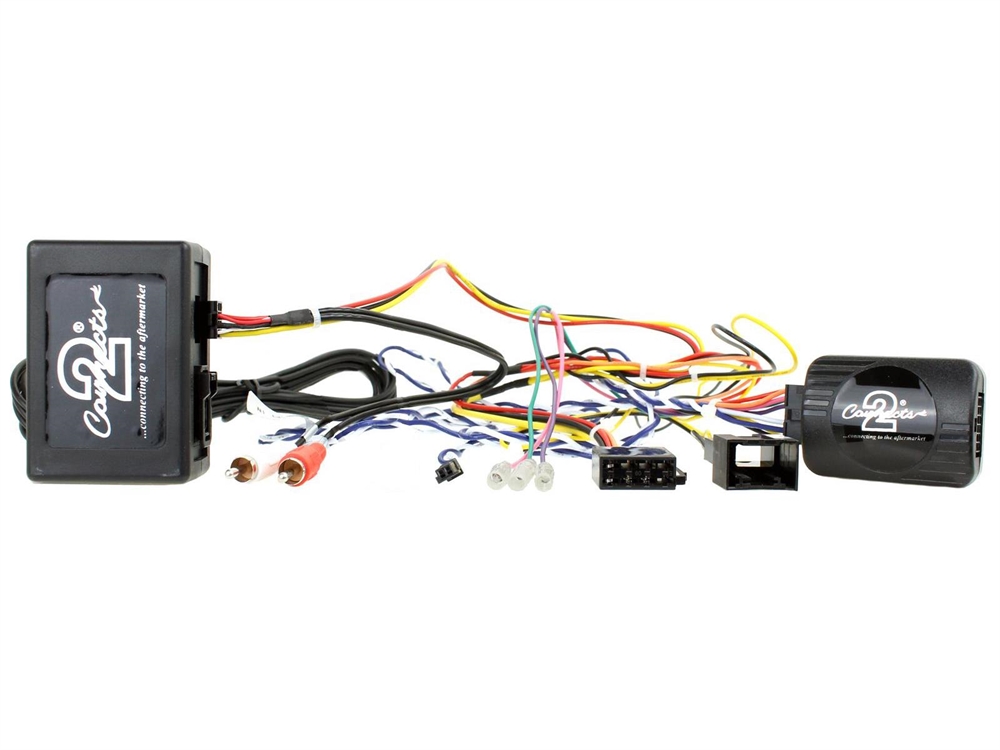

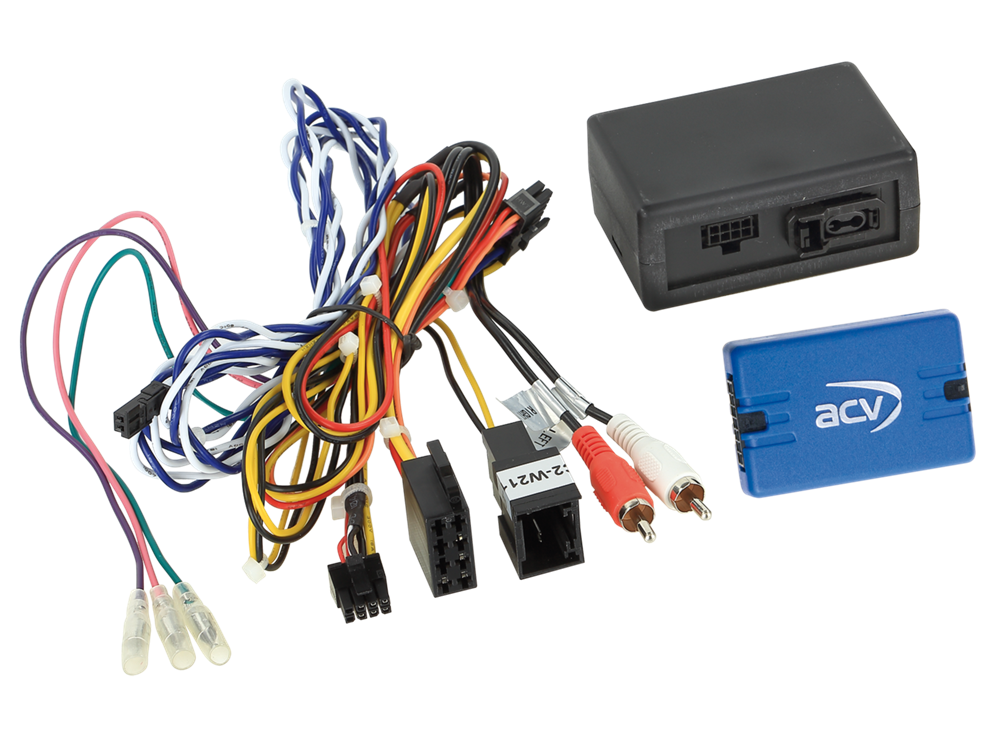

Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening.
Det gør det muligt at styre primær funktioner på radioen.
Ratinterface til MERCEDES Hvor der er MOST 25 FIBER OPTISK NAVIGATION i forvejen.
Mercedes E-Class W211, Fibre Amp Vehicles with Factory Navigation. 2002 > 2009
Mercedes SLK R171. Fibre Amp Vehicles 2004 > 2010
Mercedes CLS W219. Fibre Amp Vehicles 2004 > 2010
CAN Bus
connector: 2 Pin Mercedes
connector. 2 Pin CAN Bus distributor
connector: OEM amplified system MOST > RCA(m) red/white
vehicles with Harman Kardon OEM amplified system*
vehicles with MOST25 OEM amplified system*
vehicles with Audiogateway*
vehicles with Command APS NTG1 OEM Sat Nav*
vehicles without Command 2.0 / 2.5 OEM Sat Nav
vehicles without D2B Optical Bus
RCA > front preamp output retrofit HU
fader not supported
antenna cable extention not in scope of delivery
Vehicle application:
Mercedes CLS-class (W219) 10/2004 - 06/2008
Mercedes E-class (W211) 03/2002 - 02/2008***
Mercedes SLK-class (R171) 03/2004 - 03/2008
Following signals are provided:
Reimported vehicles or vehicles with different software may be incompatible in functions.
red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse signal
pink: speed pulse signal
green: GND park brake signal
load capacity total outputs: 100 mA max.
current requirement more than 100 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.
SWC
*in individual cases, depending on the OEM system and the retrofit radio, increased noise or a switch-on or switch-off noise may occur
*OEM units > CD-Changer / TV-Tuner / Phone Modul must be bypassed from the MOST ringsystem
*Fibre optic connector Most-ring > item: 771000-2100
*Fibre optic loop (f) MOST-ring > item: 771000-2101
***function of the electrical compartment not supported
Der skal bruges et af nedennævnte kabler
