Varenr.: 1230-60
På lager hos os

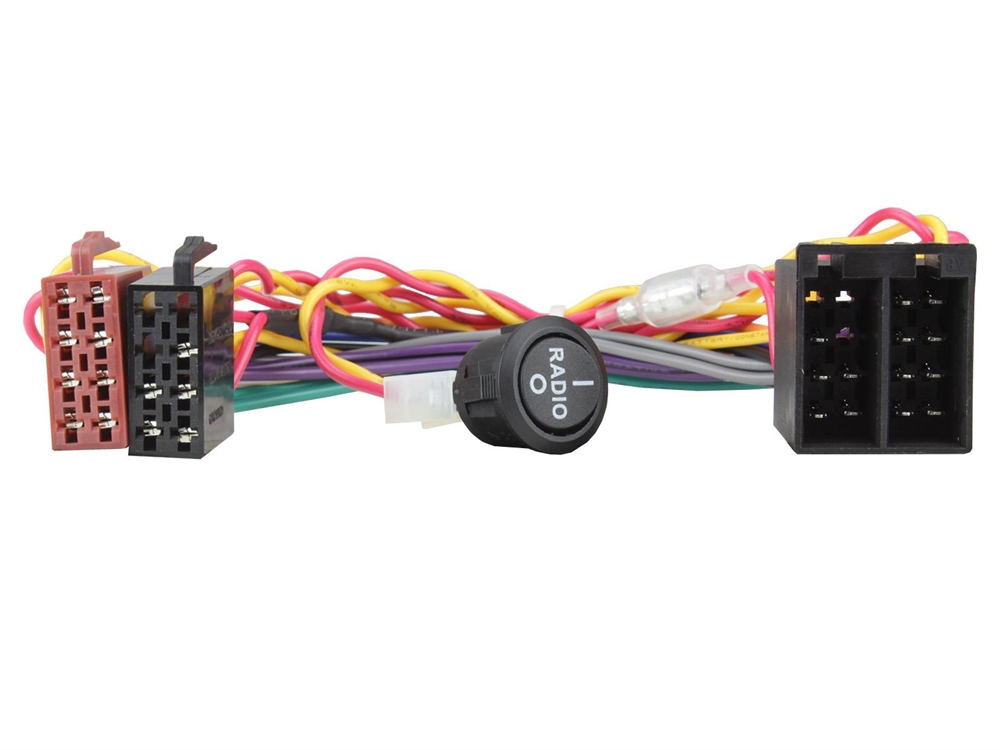

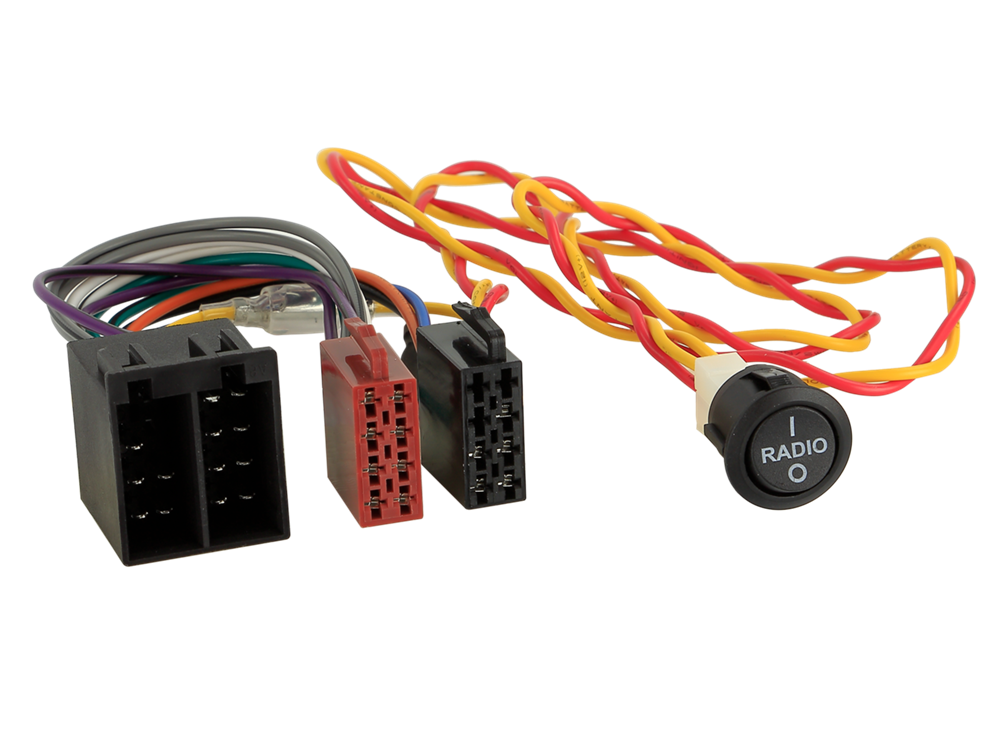

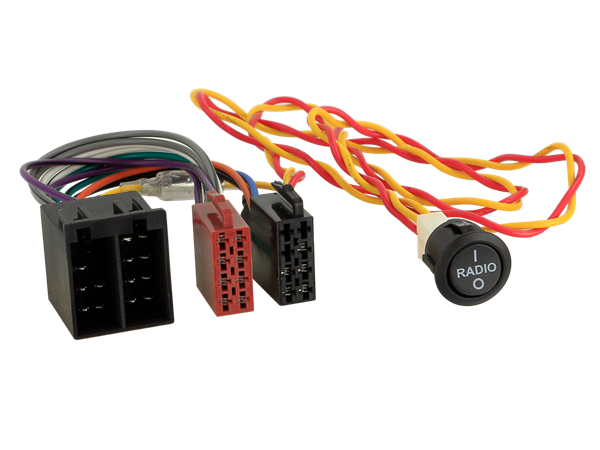

ISO extension harness Camper Van / Motor Home
ISO connector and switch for manually switching on a device without ignition current activation
ISO(m) > ISO(f) power
ISO connection length: 20 cm
switch connection length: 80 cm
Note:
connector: ISO Pin 7 / Pin 4 variable
vehicles with standard/reversed +12V continious power/+12V ignition supply connection
check OEM connection +12V ignition (clamp 15) before installation
check maxi. load capacity of +12V continuous power supply (clamp 30) on vehicle side before installation
continuous current operation of the connected device without recharging by alternator or external chargers discharges the battery
Use case:
ISO extension for different installation options
Switch for manually switching on a device without ignition current activation
Feeding +12V continous current (terminal 30) at the ISO plug to the connected device
A blocking diode prevents the continuous current from being fed back into the vehicle system
Features:
Switch
Type: ON-OFF
Rocker: black imprint RADIO I/O
connector: 4.8mm
Drilling: 20 mm
Space: 23.5 mm
Mounting depth: 38 mm
Technical data:
Switching capacity: 10A/125V 5A/230V
