GARMIN adapterkabel til CTS Ratbetjenings interface

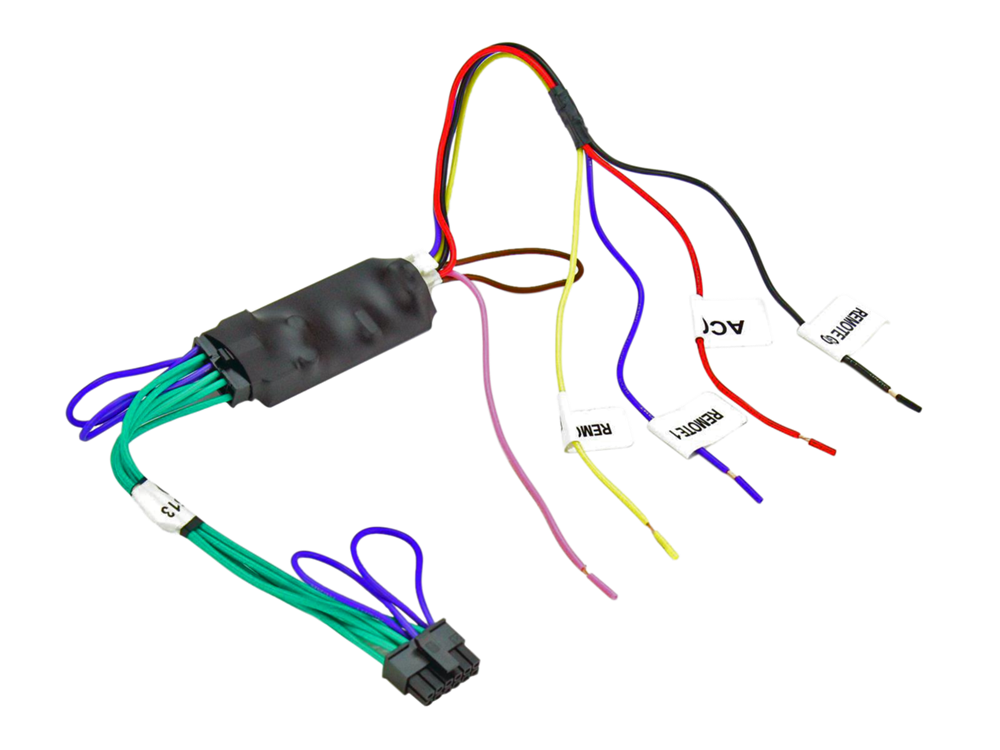

Adapterkabel til CTS (SWC.2) ratbetjeningsinterfaces.Passer til Garmin Vieo" RV52 Stereo Dock

connector: 12 Pin Microfit > Remote1 / Remote2 / Remote GND

connection: red: +12 ignition clamp 15 fused
connection: loose wires > Garmin 14 Pin

blue: Remote1 > green analog input 1
yellow: Remote2 > green analog input 1
black: Remote GND > black analog input GND

pink: not connected / not used
purple: Garmin analog input 2 not used

SWC radio specific lead acv SWC interface 42s xxxxx
SWC radio specific lead Infodapter 43u xxxx

Use case:

Garmin analog input 1 / analog input GND
