RAT INTERFACE TIL AUDI/MAN/SEAT/SKODA/VW 40 PIN QUADLOCK

Husk tilkøb radiokabel som findes under produktet.

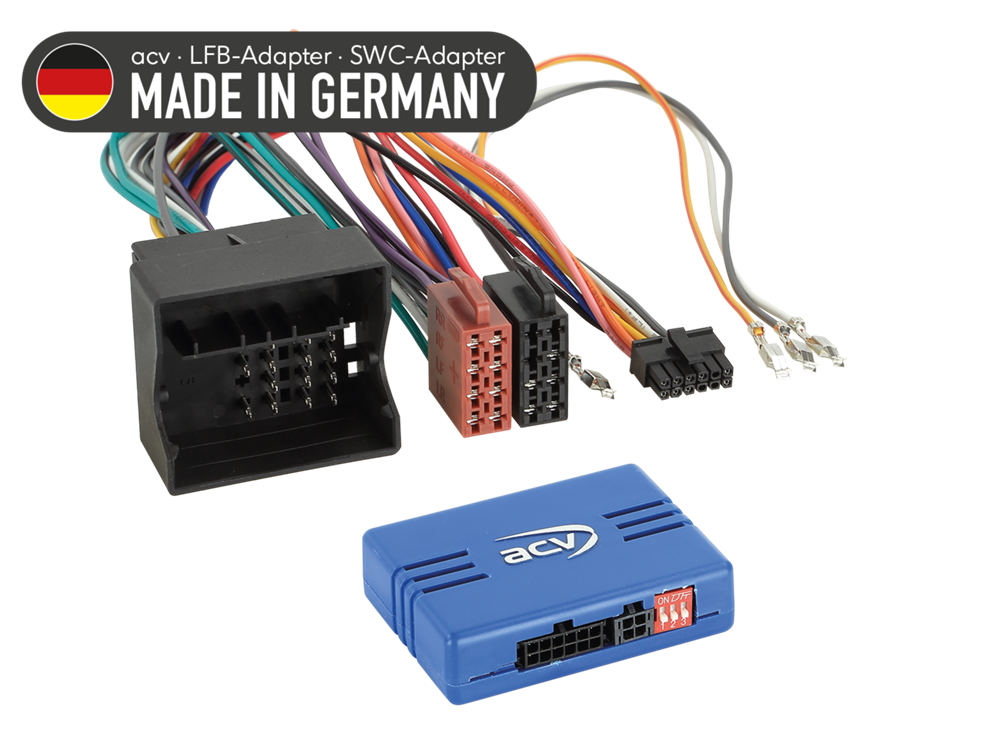

Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening.
Det gør det muligt at styre primær funktioner på radioen.

Passer til følgende modeller:
Note:

CAN-Bus

connector: 40 Pin Quadlock VAG 42cx25

check dip switches for retrofit HU

CAN Bus activation OEM amplified system supported

vehicles Audi / Seat Exeo with Blaupunkt / Matsushita / Grundig Chorus II / Concert II / Symphony II 2 DIN OEM HU
vehicles Audi / Seat Exeo with BNS 5.0 OEM monochrome Sat Nav
vehicles Audi / Seat Exeo with RNS-E 16:9 OEM Nav Sat

vehicles Audi / Seat Exeo with OEM amplified system:
SWC Audi vehicles/Seat Exeo QuadlockAmp 2/4 channel RCA > item: 42a-1321-002
SWC Audi vehicles/Seat Exeo Quadlock Amp 2/4 channel Pro > item: 42a-1321-006
Active system adapter Audi/VW Quadlock MQS-housing > item: 13-1424-25

vehicles Skoda with Bolero / Stream OEM HU
vehicles Skoda with Amundson / Columbus OEM Sat Nav

vehicles Skoda without Technisat OEM HU

vehicles VW with RCD200 / RCD210 / RCD300 / RCD310 / RCD500 / RCD510 OEM HU
vehicles VW with RNS315 / RNS510 OEM Sat Nav

vehicles VW without RCD320 OEM HU with ISO connector

vehicles VW with DynAudio OEM amplified system:
+12V Amp remote connector D(A) Pin 11 grey > check by measuring with OEM HU before connecting

vehicles VW Caravelle / Multivan / T5 Transporter / Touareg with OEM amplified system:
Active system adapter VWT5/Touareg Quadlock MQS-housing > item: 13-1424-26

vehicles without 52 Pin Quadlock
vehicles Audi without MMI system

diagnostic LED:
blue flashing > CAN Bus search
blue constant > CAN Bus active
red > +12V ignition current active

Vehicle application:

Audi
Audi A1 (8X) 07/2010 - 04/2018*
Audi A3 (8P) 05/2003 - 04/2005***
Audi A3 (8P) 10/2004 - 04/2013***
Audi A4 B6 (8E) 11/2000 - 10/2005***
Audi A4 B7 (8E) 11/2004 - 02/2009***
Audi A5 (8T/8F) 06/2007 - 10/2011***
Audi A6 (C5/B4) 05/2001 - 03/2006***
Audi Q3 (8U) 10/2011 - 11/2014*
Audi Q3 (8U) 02/2015 - 06/2018***
Audi Q5 (8R) 09/2008 - 05/2012***
Audi Q5 (8R) 09/2012 - 01/2017***
Audi R8 (42) 04/2007 - 05/2015***
Audi TT (8J) 04/2006 - 04/2010***/*****
Audi TT (8J) 08/2010 - 03/2014***/*****

Seat
Seat Alhambra (7N) 10/2010 - 04/2015
Seat Altea (5P) 06/2004 - 03/2009
Seat Altea (5P) 04/2009 - 07/2015
Seat Exeo (3R) 03/2009 - 05/2013***
Seat Ibiza (6J) 06/2008 - 02/2012
Seat Ibiza (6J) 03/2012 - 06/2015
Seat Leon (1P) 09/2005 - 03/2009
Seat Leon (1P) 04-2009 - 11/2012
Seat Mii (AA) 12/2011 - 06/2019****
Seat Toledo (5P) 01/2005 - 10/2009
Seat Toledo (NH) 03/2013 - 05/2015

Skoda
Skoda Citigo (AA) 06/2012 - 05/2017****
Skoda Fabia (5J) 03/2007 - 04/2010
Skoda Fabia (5J) 06/2010 - 06/2014
Skoda Octavia (1Z) 06/2004 - 05/2009
Skoda Octavia (1Z) 01/2009 - 03/2013
Skoda Rapid (NH) 10/2012 - 04/2015
Skoda Roomster (5J) 09/2006 - 04/2010
Skoda Roomster (5J) 06/2010 - 02/2015
Skoda Superb (3T) 07/2008 - 05/2013
Skoda Superb (3T) 06/2013 - 05/2015
Skoda Yeti (5L) 08/2009 - 10/2013

VW
VW Amarok (2H) 07/2010 - 08/2016
VW Beetle (16) 11/2011 - 06/2016
VW Caddy III (2K) 10/2003 - 08/2010
VW Caddy III (2K) 09/2010 - 04/2015
VW Caddy IV (DU) 06/2015 - 09/2020******
VW Caravelle (7H) 10/2004 - 09/2009**
VW Caravelle (7H) 09/2009 - 05/2015**
VW CC (3C/35) 06/2008 - 11/2011
VW CC (3C/35) 02/2012 - 08/2016
VW Eos (1F) 05/2006 - 10/2010
VW Eos (1F) 10/2010 - 04/2015
VW Fox (5Z) 04/2005 - 06/2011
VW Golf V (1K) 11/2003 - 09/2008
VW Golf V (1KM) 06/2007 - 10/2009
VW Golf V Plus (1KP) 01/2005 - 02/2009
VW Golf VI (1K) 11/2008 - 09/2012
VW Golf VI (1KM) 11/2009 - 04/2013
VW Golf VI (1K) 06/2011 - 07/2016
VW Golf VI Plus (1KP) 03/2009 - 01/2014
VW Jetta III (1K5/1KM) 09/2005 - 10/2010
VW Jetta IV (162) 01/2011 - 08/2014
VW Multivan (7H) 02/2003 -09/2009**
VW Multivan (7H) 09/2009 - 05/2015**
VW Passat B6 (3C2) 11/2005 - 07/2010
VW Passat B6 (3C5) 08/2005 - 07/2010
VW Passat B7 (3C/362) 11/2010 - 10/2014
VW Phaeton (3D) 05/2007 - 05/2010
VW Polo IV (9N) 03/2005 - 03/2009
VW Polo V (6R) 06/2009 - 01/2014
VW Scirocco III (13) 08/2008 - 04/2014
VW Sharan II (7N) 08/2010 - 04/2015
VW T5 Transporter (7H) 08/2003 - 09/2009**
VW T5 Transporter (7H) 09/2009 - 05/2015**
VW T6 (7HC) 07/2015 - 08/2019******
VW Tiguan I (5N) 10/2007 - 02/2011
VW Tiguan I (5N) 06/2011 - 04/2016
VW Touareg I (7L) 06/2003 - 11/2006**
VW Touareg I (7L) 11/2006 - 02/2010**
VW Touran (1T) 01/2003 - 09/2006
VW Touran (1T) 11/2006 - 04/2010
VW Touran (1T) 08/2010 - 04/2015
VW UP! (AA) 12/2011 - 06/2016****

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

pink: +12V ignition clamp 15 1,5A max.
orange: +12V illumination clamp 58 0,1A max.
white: +12V reverse gear signal 1,5A max.
yellow/green yellow/red: speed pulse signal
grey: interface n.c.
grey: 40 Pin Quadlock +12V Amp remote DynAudio OEM amplified system

SWC

CAN Bus activation OEM amplified system supported

*vehicles with Chorus OEM HU with monochrome display
**vehicles with OEM amplified system > item: 13-1424-26
***vehicles with 2-DIN OEM Gerät
***vehicles with OEM amplified system > item: 13-1424-25
****vehicles without OEM amplified system
*****OEM amplified system CAN activation
******vehicles with Composition Audio MIB Entry OEM HU with front AUX/SD/USB
