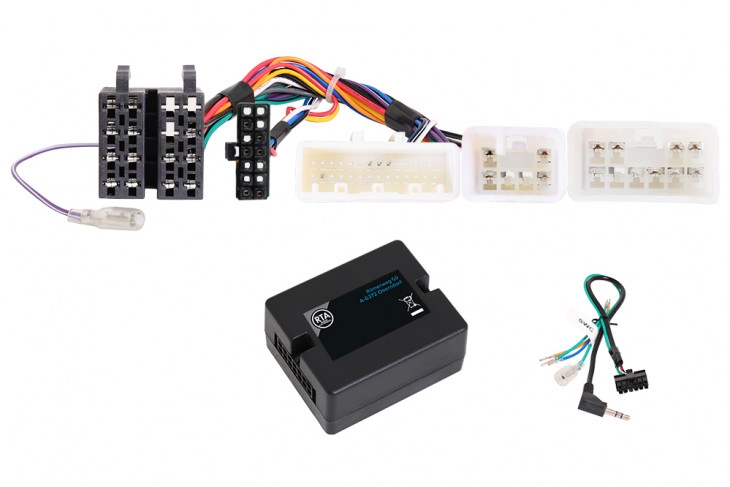

RAT INTERFACE TIL TOYOTA 2009 > 2020 MED 10/6/28 PIN STIK

Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening. Det gør det muligt at styre primær funktioner på radioen.
Note:

analog

connector: 10Pin / 6Pin / 28Pin Toyota

vehicles on year of construction limit > item: 42sty00c with 20 Pin and 28 Pin wiring harness

vehicles with Matsushita / Fujitsu Ten OEM HU
vehicles with OEM rear view camera*

vehicles without 360° OEM camera system**

Vehicle application:

Toyota Auris (E150) 03/2010 - 01/2013
Toyota Avensis (T27) 01/2012 - 06/2015
Toyota Corolla (E170) 04/2014 - 12/2016
Toyota Fortuner 2011 - 2015
Toyota Hilux (N25) 12/2011 - 08/2016
Toyota Hilux (AN1P) 11/2016 - 09/2020
Toyota Innova 2011 - 2015
Toyota Prius ZVW30/ZVW35 (XW3) 04/2012 - 02/2016
Toyota Prius+ (XW3/XW4) 06/2012 - 01/2015
Toyota RAV4 (XA3) 04/2009 - 05/2010
Toyota RAV4 (XA3) 05/2010 - 02/2013
Toyota RAV4 (XA3/XA4) 04/2013 - 01/2016
Toyota RAV4 (XA3/XA4) 01/2016 - 12/2018**
Toyota Verso (AR2) 04/2009 - 01/2013
Toyota Verso (AR2) 04/2013 - 06/2018
Toyota Verso-S (XP12) 03/2011 - 07/2014
Toyota Verso-S (XP12) 07/2014 - 12/2015
Toyota Yaris (XP13) 11/2011 - 08/2014
Toyota Yaris (XP13) 09/2014 - 03/2017
Toyota Yaris (XP13) 04/2017 - 08/2020

The following signals are provided:

SWC

*vehicles with rear view camera SWC Toyota different vehicles 28Pin USB/antenne/camera > item: 42sty015
**vehicles with 360° OEM camera system SWC Toyota different vehicles 10Pin/6Pin/28Pin/24Pin > item 42sty019
Der skal bruges et af nedennævnte kabler
