ISO STIK TOYOTA/SUZUKI 2019>

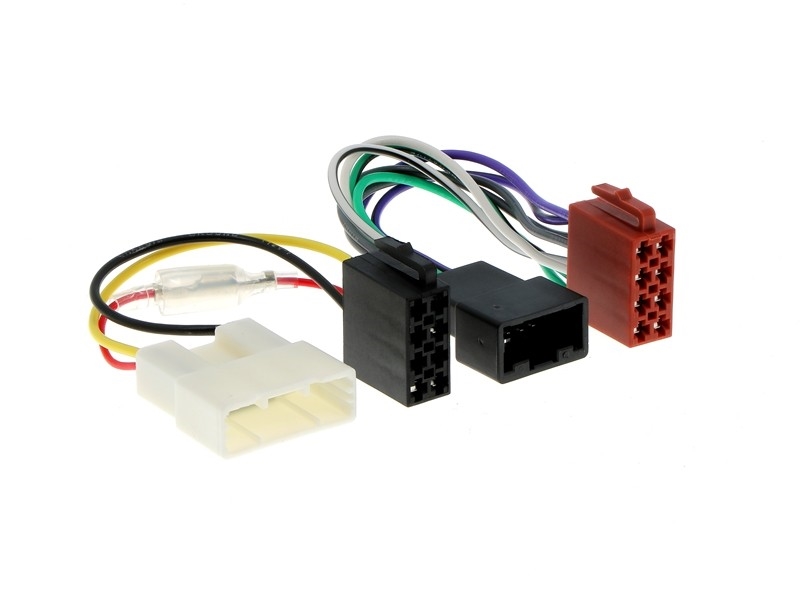

ISO Harness Adapter Suzuki / Toyota

ISO adapter cables are used for the passive connection of retrofit devices to the factory plugs present in the radio installation slot.

Depending on the vehicle and equipment, the following signals are provided:

+12V continuous current clamp 30
+12V ignition clamp 15
GND clamp 31
Speaker connection for front and rear speakers

For vehicles with different equipment, signals that are not available may have to be connected to suitable tapping points in the vehicle or additional adaptations/interfaces may have to be used:

CAN bus interfaces
LFB interfaces
Amplified system adapter
Camera adapter

The signals must be checked before connection.

Note:

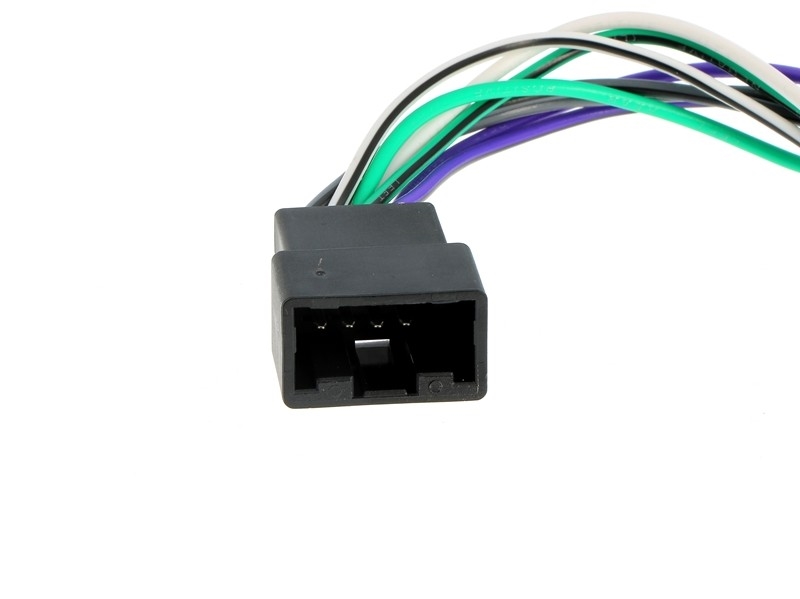

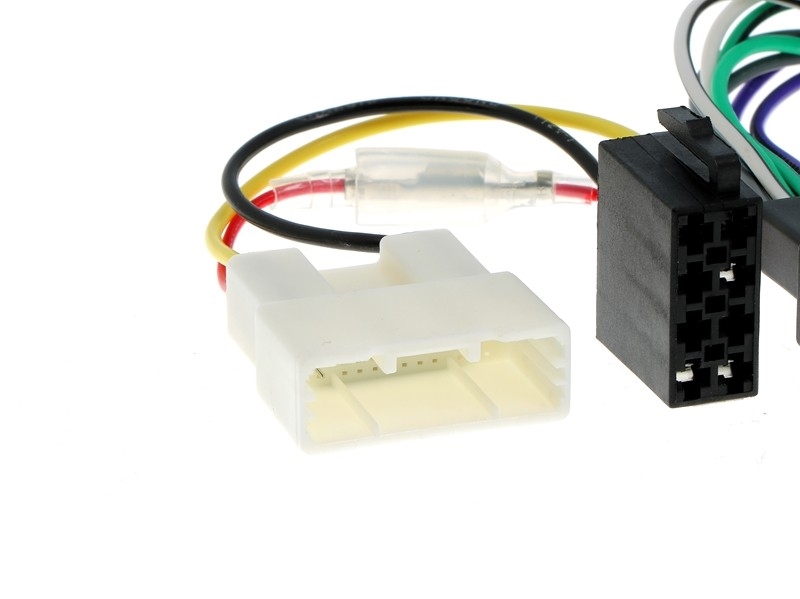

connector: 28 Pin / 10 Pin Toyota

Usecase:

HU connector power / speaker

Vehicle application:

Suzuki
Suzuki Across (XA5P) 11/2020 - 2022

Toyota
Toyota Aygo X (AB7) 04/2022 - 2023
Toyota Corolla (E210) 04/2019 - 2023
Toyota Hilux (AN1P) 10/2020 - 2023
Toyota RAV4 (XA5) 01/2019 - 2023
Toyota Yaris (XP21) 09/2020 - 2023
