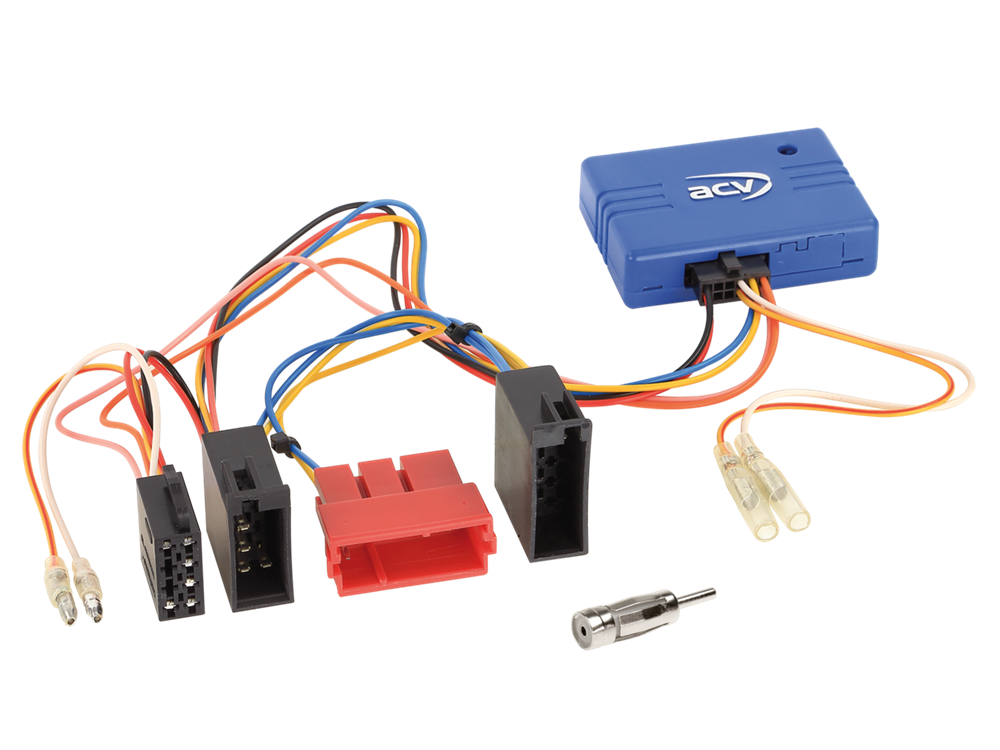

ISO/CAN-BUS KIT MERCEDES ISO (FM-RADIO/TÆNDNING/LYS/BAK-GEAR/SPEED)

Varenr.: 12-1190-46-15

PRIS ER PR. Stk

Pris ved køb af 1 Stk,0,00 DKK

Bygges først ved bestilling. Op til 1 måneds levering.
Beløbet hæves som forudbetaling og kan ikke returneres.
14 dages retur ret frasiges derfor også.

Pakken indeholder

1 stk.

Indlæser.. 1 stk.

Indlæser..

Note:

CAN-Bus

connector: ISO / 10 pin ISO / Mini ISO
connector OEM Antenna ISO(m) > DIN(M)

vehicles Mercedes with Audio 5 / Audio 10 1-DIN OEM HU
vehicles Mercedes with Audio 30 APS 1-DIN OEM Sat Nav

vehicles VW Crafter with RCD 2001 1-DIN OEM HU

vehicles Mercedes / VW with open dash > check connection and assignment before installation with OEM HU:

brown-red twisted: CAN high
brown twisted: CAN low

CAN Bus in CAN Bus distributor under sill cover
CAN Bus at climatronic
CAN Bus in Mini ISO connector: Pin 1 Can low / Pin 2 Can high
CAN Bus in 8 Pin power connector: Pin 7 CAN High / Pin 6 CAN low
CAN Bus in 18 Pin AMP connector: Pin 8 CAN low / Pin 9 CAN high / not Robert Bosch CAN

OEM HU with ISO block connector:
ISO extension harness speaker 10cm> iitem: 1322-02

vehicles with 10 Pin ISO / ISO speaker connector OEM amplified system without B2B optical system OEM amplified system:
Active system adapter different vehicles ISO>ISO > item: 13-1190-50

Vehicle application:

Mercedes A-class (W169) 10/2004 - 04/2012
Mercedes A-class (C169) 11/2004 - 07/2011
Mercedes B-class (T245) 06/2005 - 06/2011
Mercedes C-class (W203) 03/2000 - 01/2005
Mercedes CLK-class (C208) 07/1999 - 03/2003
Mercedes CLK-class (C209) 03/2002 - 05/2005
Mercedes E-class (W210) 06/1999 - 12/2002
Mercedes SL-class (R230) 08/2001 - 02/2006
Mercedes SLR (C199) 13/2003 - 12/2009
Mercedes Sprinter (W906) 04/2006 - 08/2013
Mercedes Sprinter (W906) 08/2013 - 05/2018
Mercedes Vito/Viano (W639) 07/2003 - 08/2010
Mercedes Vito/Viano (W639) 09/2010 - 03/2014

VW
VW Crafter I (2EC/2EK/2F) 03/2006 - 07/2011
VW Crafter I (2EC/2EK/2F) 07/2011 - 11/2016

The following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

pink: +12V ignition clamp 15 1,5A max.
orange: +12V illumination clamp 58 0,1A max.
white: +12V reverse gear signal 1,5A max.
yellow/green yellow/red: speed pulse signal
