INBAY® UNIVERSAL KIT 3 COIL 12V 10W QI TRÅDLØS OPLADNING MED STATUS LYSLEDER

INBAY® Kit 3 coil 12V/light conductor Kit

10 Watt*

This universal solution supports the wireless inductive charging from smartphones with INBAY® in suitable installation locations depending of vehicle equipment.

INBAY® products use the Qi standard
This is the worldwide standard for wireless charging
That is why all smartphones which uses the Qi standard are compatible with INBAY

INBAY® meets the following technical specification:
QI-certification
ECE mark of conformity 10R - 05 15197
EMV Norm FMC 1278
FOD - "foreign object detection"

No interferences of radio / DAB audio reception
No disruption of the bus system
No harzard for other electronics in vehicle

Note:

mounting options in/under shelves or storage compartments (look manual)
between the charging coil and the smartphone must not be any metal objects

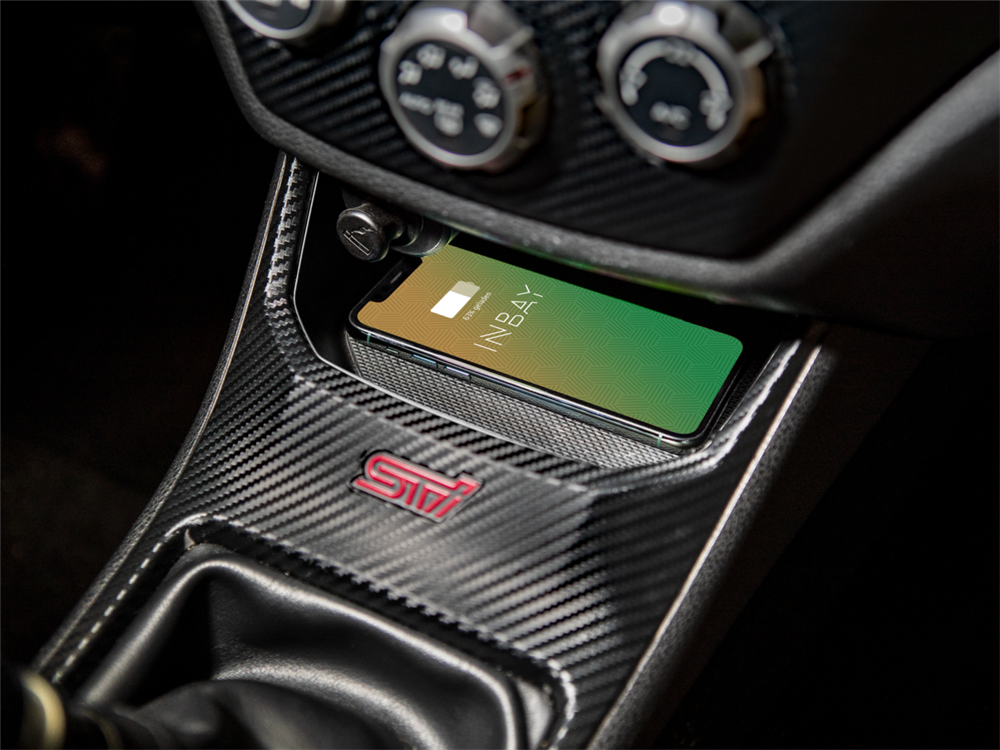

item image 3: installation example Subaru WRX Sti

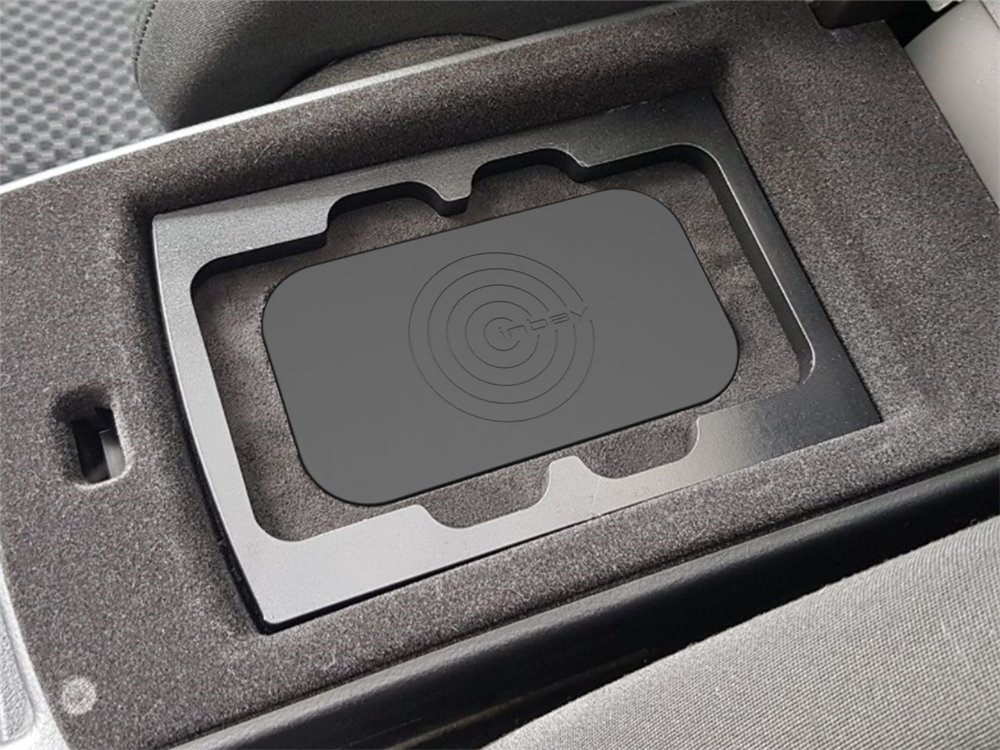

item image 5: installation example Audi A4 center console
Connector:

universal harness 12V

Dimensions:

L = 165,3mm / W = 76mm / H = 14,7mm

pad L = 135 / W = 76mm

Charging current:

DC5 - 9V / 1 - 1.2A (5W, 7.5W, 10W)
