INBAY® QI TRÅDLØS OPLADNING 15W VW T6.1 2019>

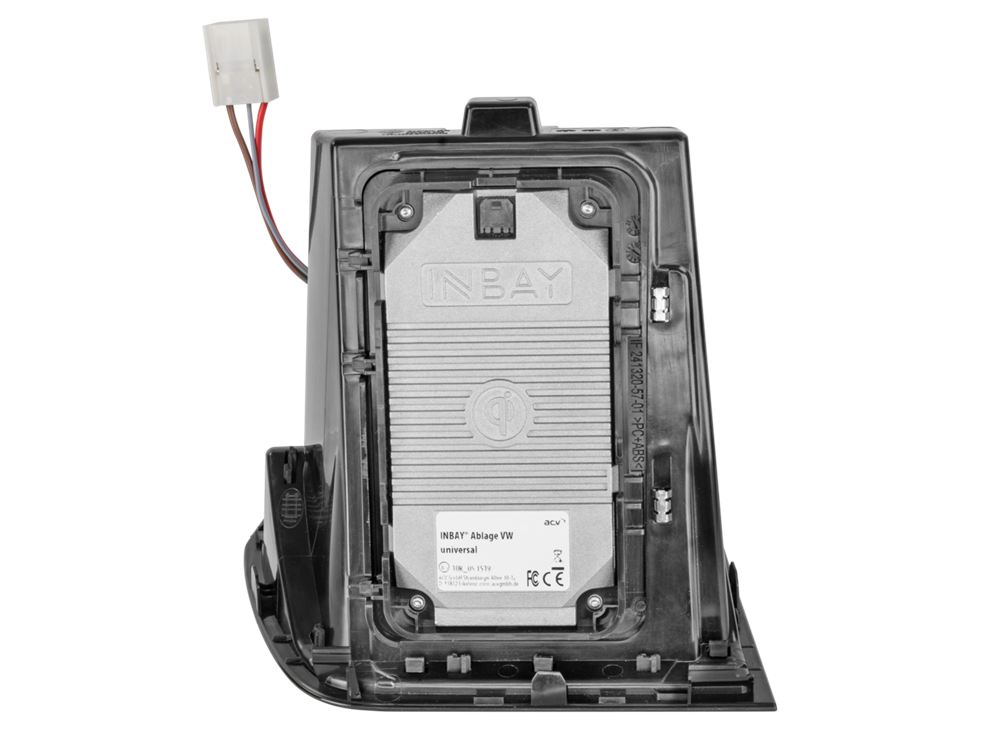

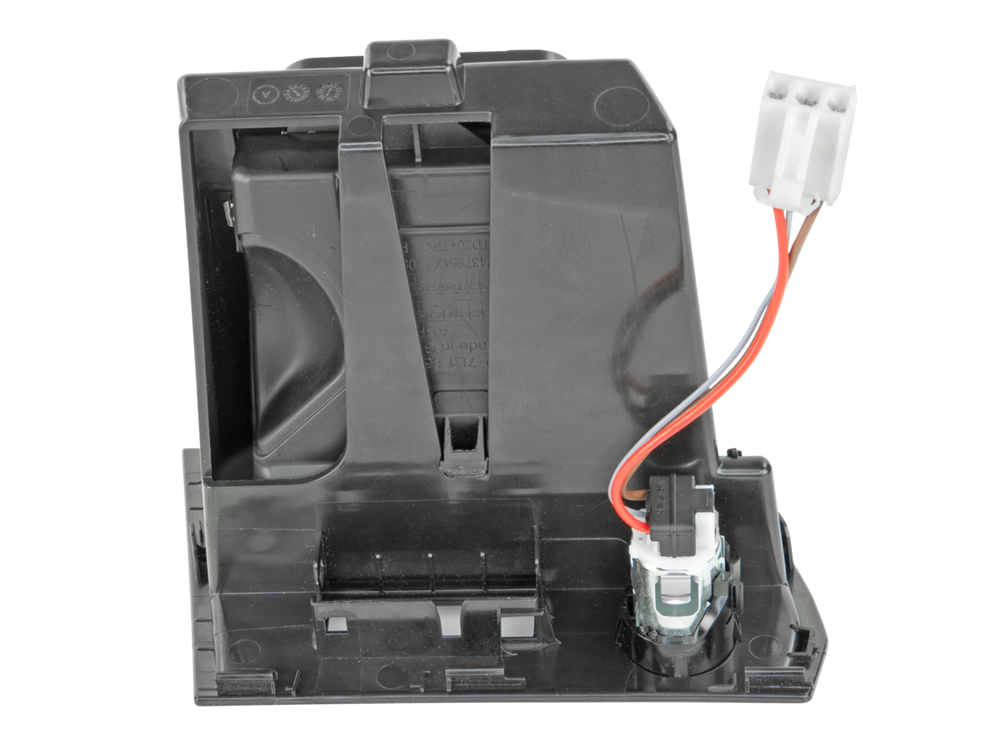

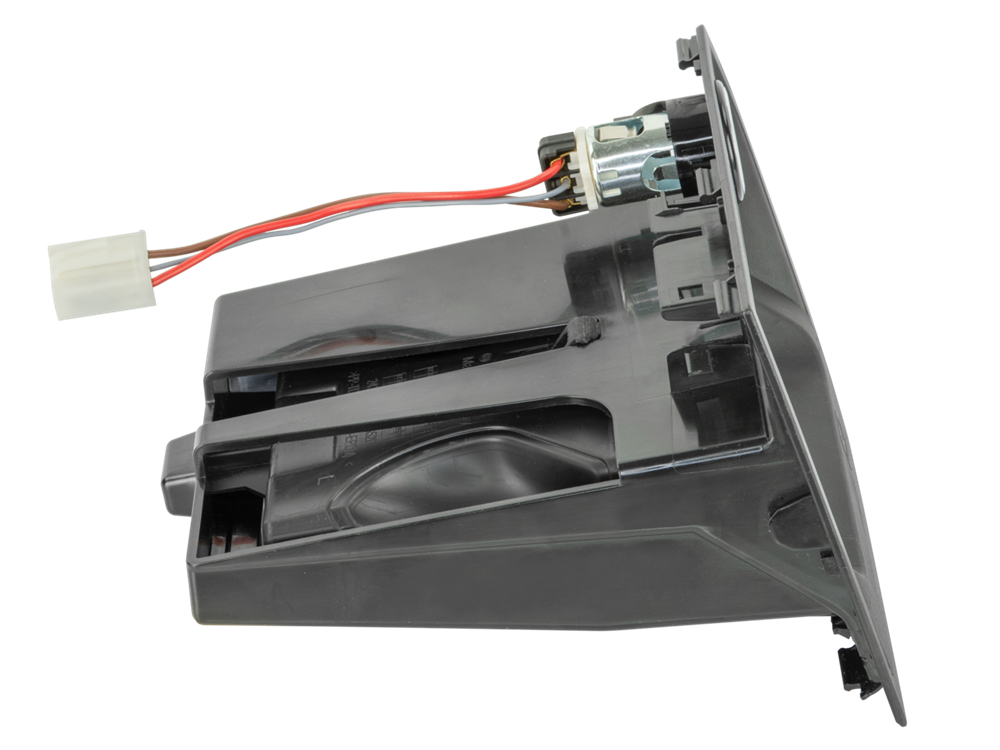

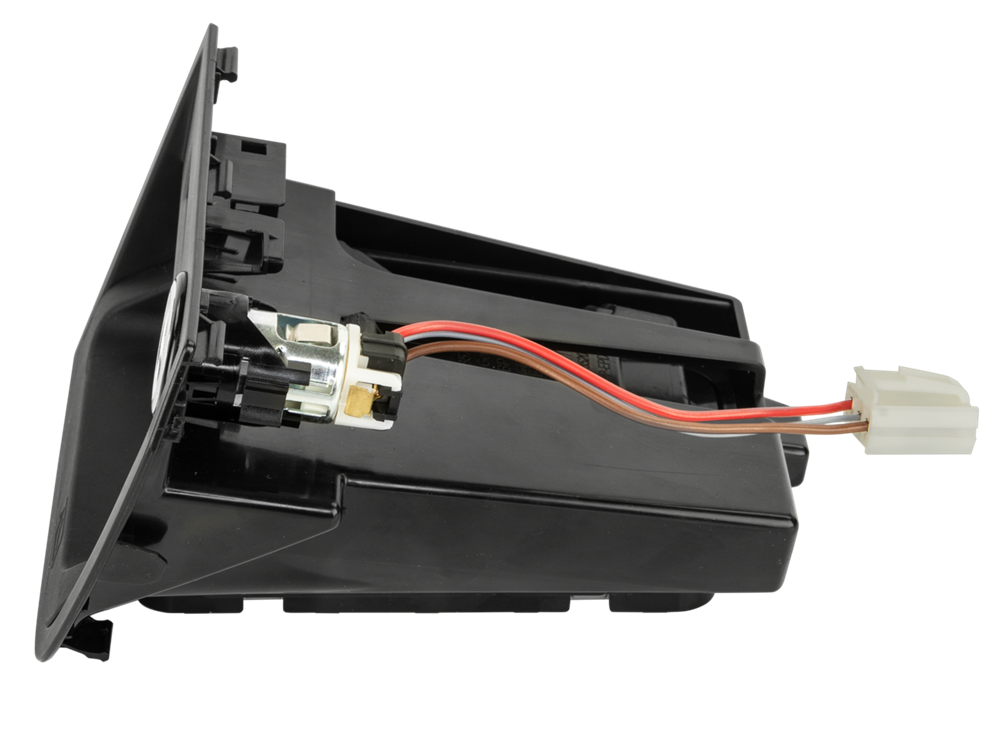

INBAY® pocket Volkswagen

Made in Germany 15 Watt

This pocket supports wireless inductive charging of smartphones using INBAY®

All INBAY® products work with the worldwide established Qi-standard for wireless charging.

All smartphones certified by the international Wireless Power Consortium are compatible with INBAY®.

Compatible smartphones with charging power at the following link:

https://www.wirelesspowerconsortium.com/products

INBAY® meets the following technical specifications:

Qi certified by the Wireless Power Consortium
ECE mark of conformity > 10R - 05 15197
EMV Norm > FMC 1278
FOD - "foreign object detection"

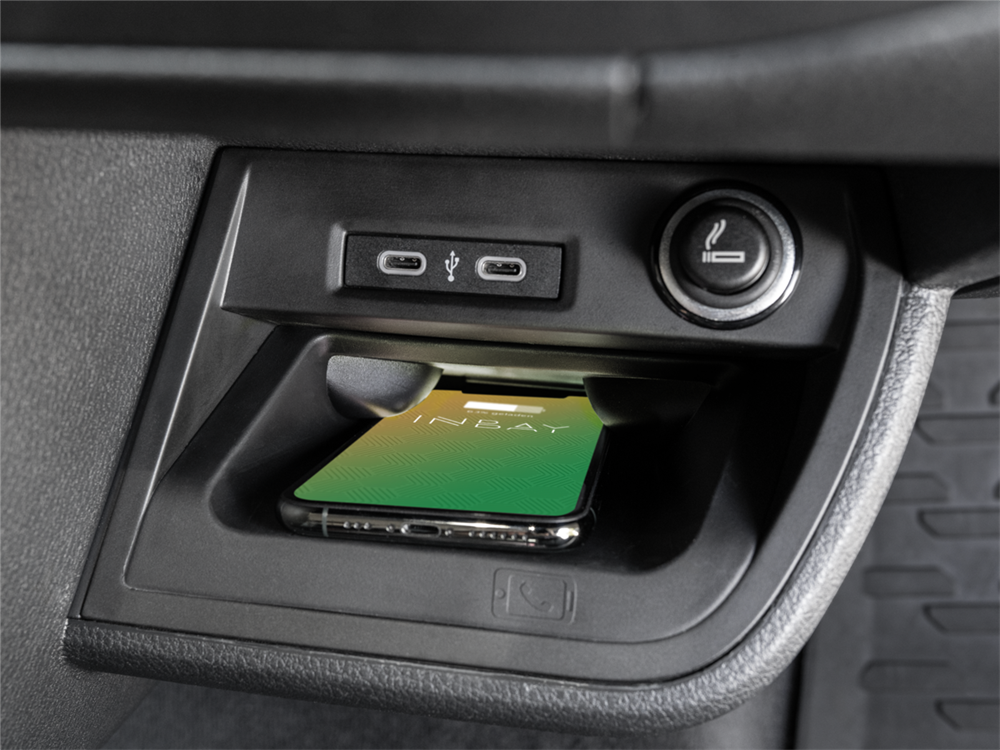

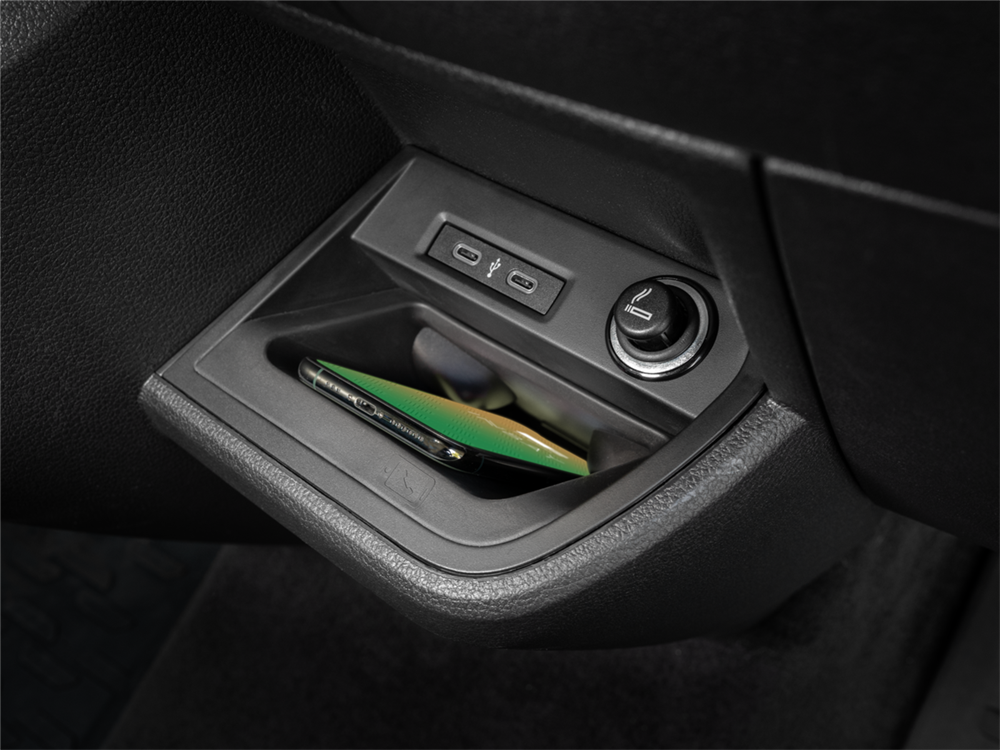

INBAY® in the vehicle:

No interferences with the vehicle bus system
No inteferences with the vehicle electronics
No interferences with audio reception AM/FM/DAB+

Note:

vehicles with storage shelf blind cover under the OEM rubber mat (look into the manual)

vehicles without blind cover and a one-pice solid storage shelf*

there must be no metallic objects between the charging unit and the smartphone

protective covers must not contain any metallic components

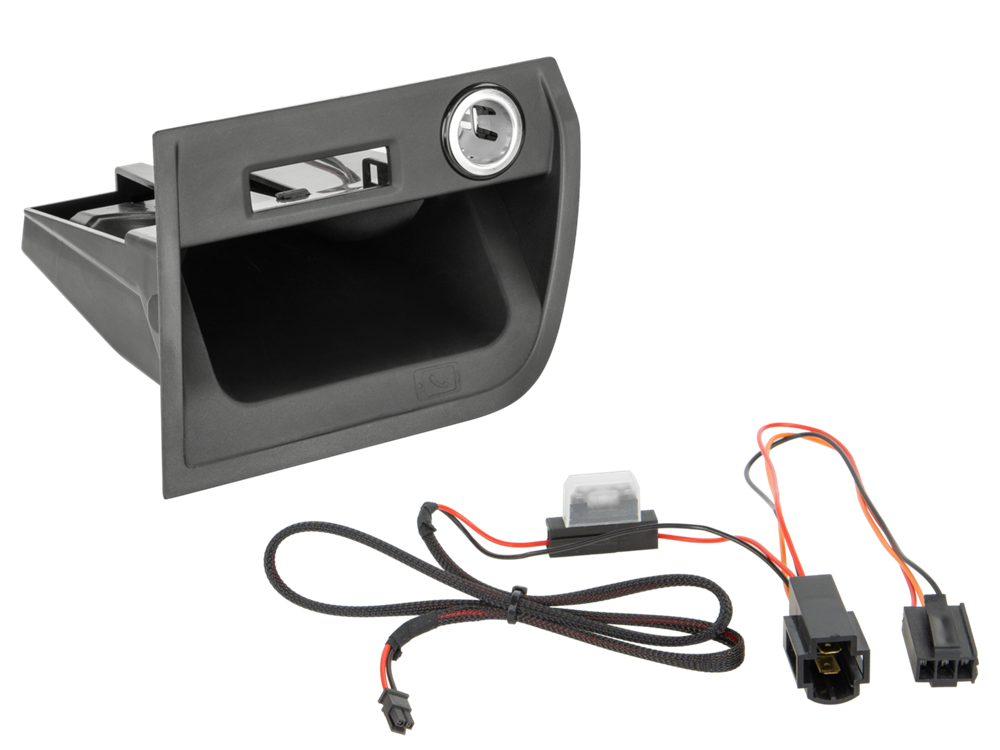

Connector:

power supply > VW specific Y-cable Plug & Play
Vehicle application:

VW T6.1 Caravelle (7HC) 10/2019 - 04/2023
VW T6.1Mulitvan (7HC) 10//2019 - 12/2022
VW T6.1 California (7HC) 09/2019 - 2024
VW 6.1 Panel Van (7HC) 10/2019 - 12/2022
VW T6.1 Estate (7HC) 10/2019 - 04/2023

Colour:
black

Dimensions of the smartphone with protective cover:
160mm x 80mm x 9mm

Input voltage:
+12V DC

Output voltage:
5V
9V

Output current:
1,6A max.

Output power:
5W compatible Smartphones > 5W max.
7,5W compatible Smartphones > 7,5W max.
10W compatible Smartphones > 10W max.

Apple iPhone > 7,5W max.
