INBAY® QI TRÅDLØS OPLADNING 15W FORD TRANSIT 2019 >

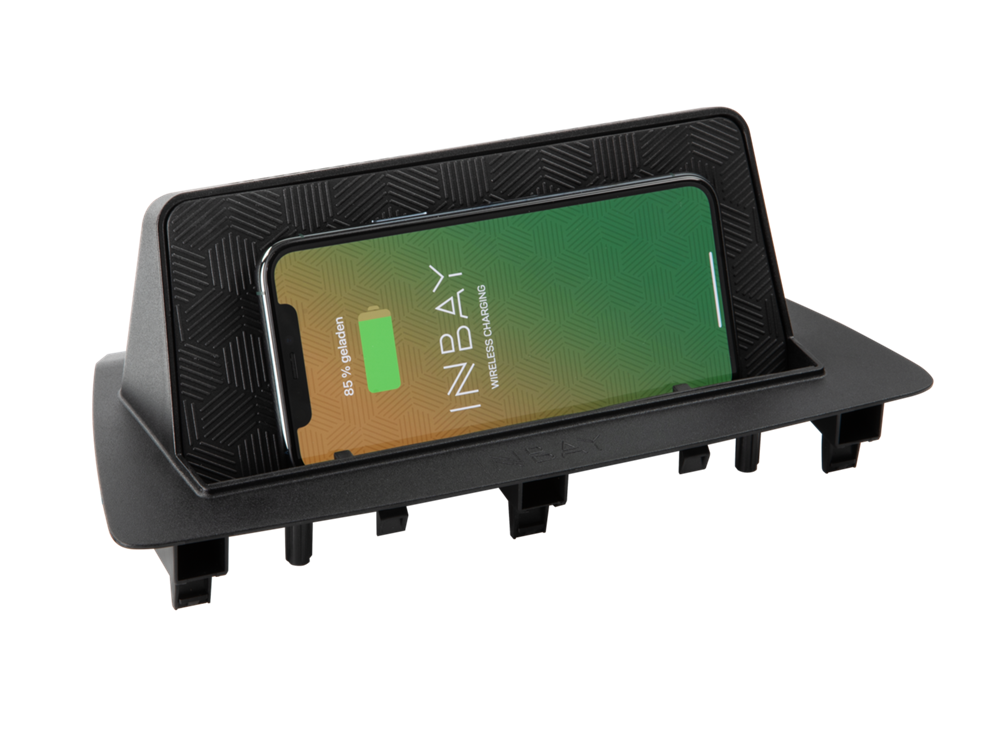

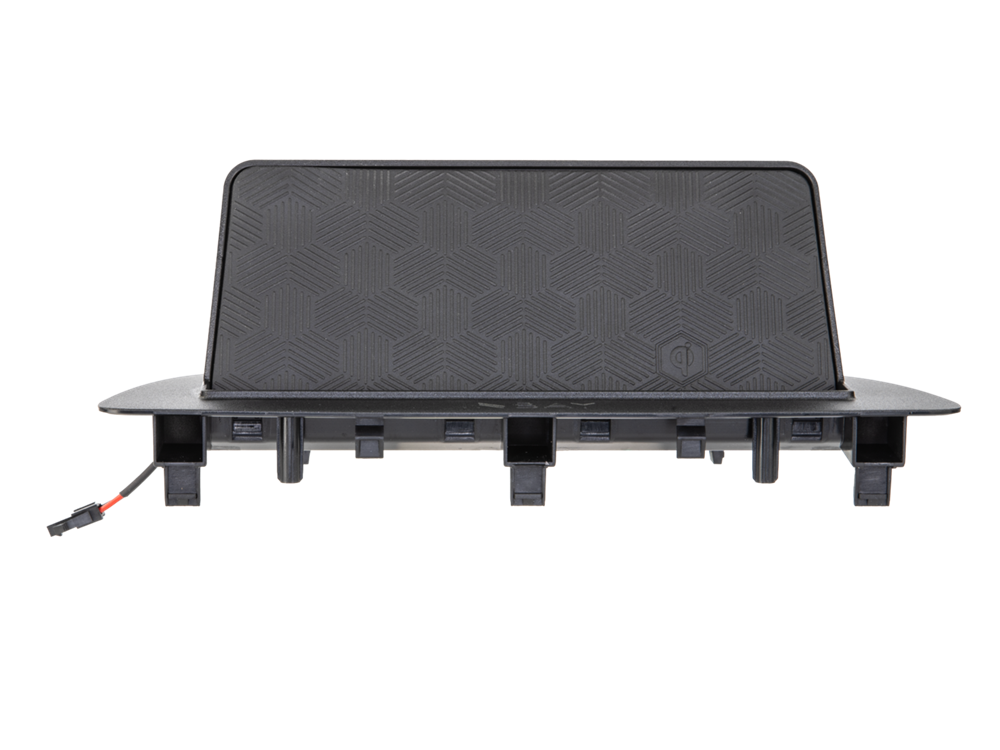

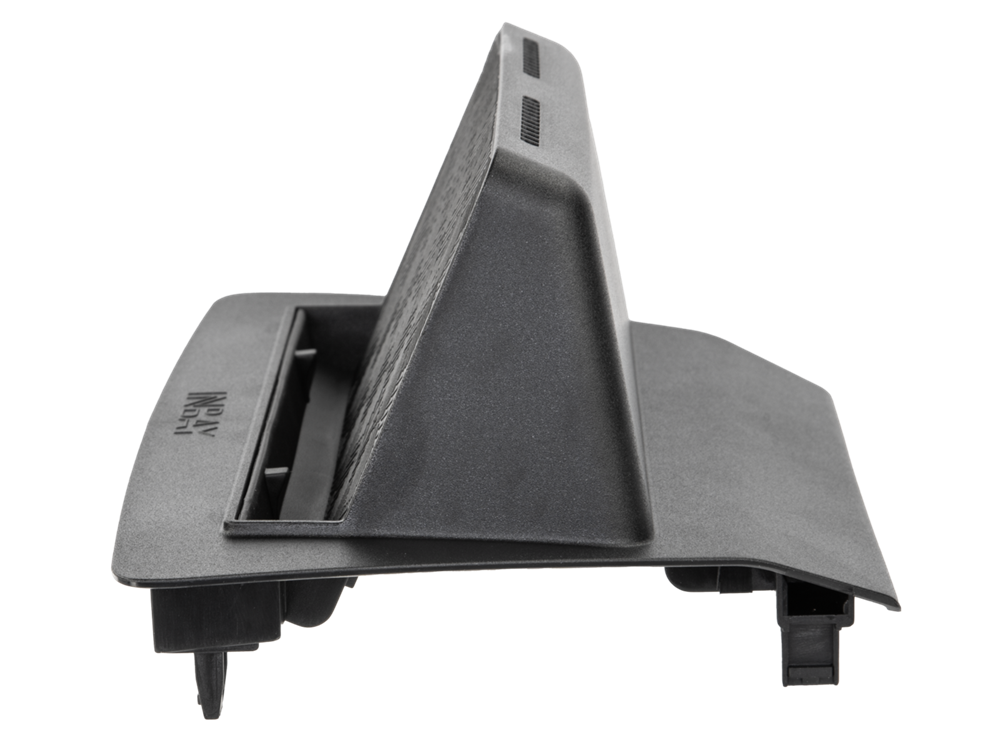

INBAY® pocket Ford

Made in Germany 15 Watt

This pocket supports wireless inductive charging of smartphones using INBAY®

All INBAY® products work with the worldwide established Qi-standard for wireless charging.

All smartphones certified by the international Wireless Power Consortium are compatible with INBAY®.

Compatible smartphones with charging power at the following link:

https://www.wirelesspowerconsortium.com/products

INBAY® meets the following technical specifications:

QI-certification
ECE mark of conformity 10R - 05 15424
EMV Norm FMC 1278
FOD - "foreign object detection"

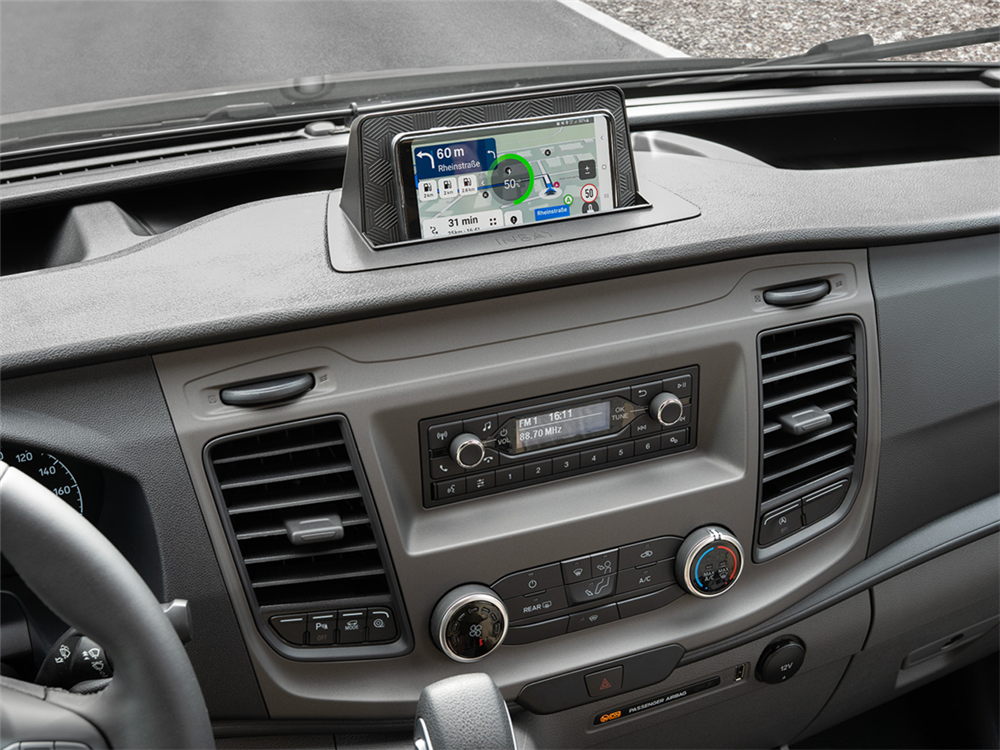

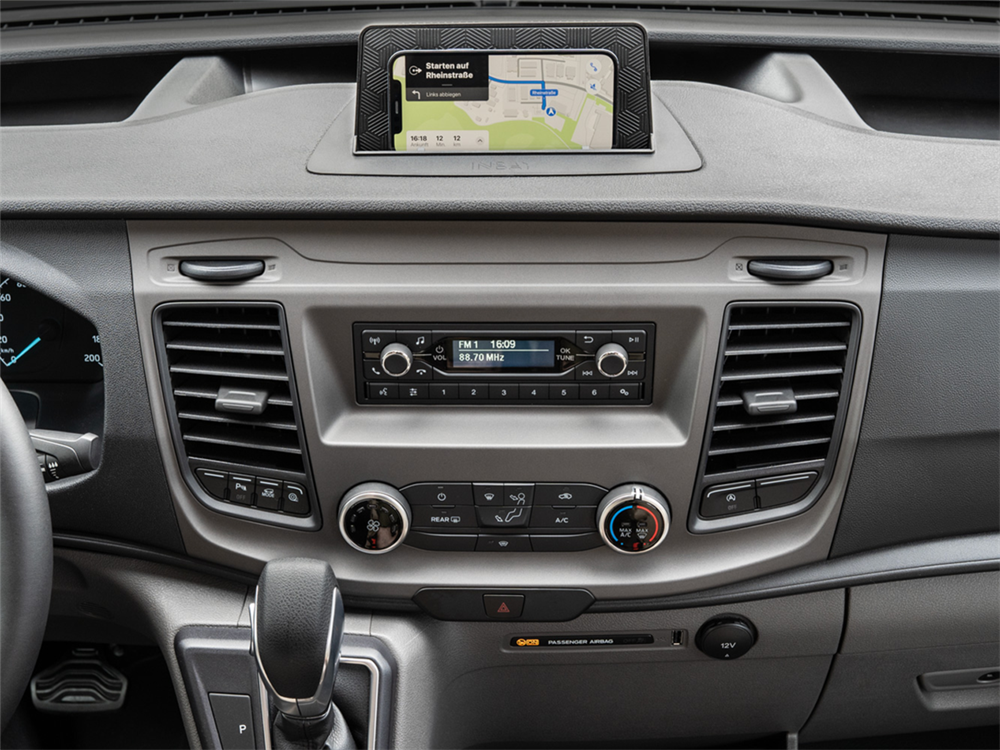

INBAY® in the vehicle:

No interferences with the vehicle bus system
No inteferences with the vehicle electronics
No interferences with audio reception AM/FM/DAB+

Note:

there must be no metallic objects between the charging unit and the smartphone

protective covers must not contain any metallic components

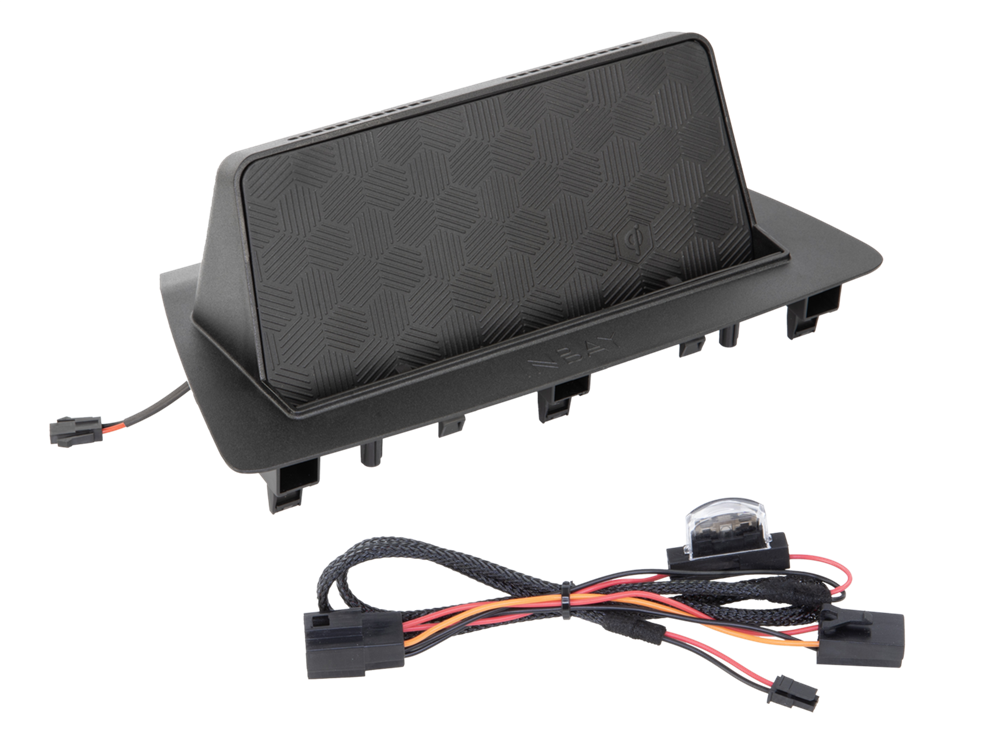

Connector:

power supply > Ford specific Y-cable Plug & Play

Vehicle application:

Ford Transit Estate (FD) 06/2019 - 2023
Ford Transit Panel Van (FD) 06/2019 - 2023
Ford E-Transit Panel Van (FD) 05/2022 - 2023

Colour:
black

Dimensions of the smartphone with protective cover:
174mm x 82mm x 8,40mm

Input voltage:
+12V DC

Output voltage:
5V
9V

Output current:
1,6A max.

Output power:
5W compatible Smartphones > 5W max.
7,5W compatible Smartphones > 7,5W max.
10W compatible Smartphones > 10W max.
15W compatible Smartphones > 15W max.

Apple iPhone > 7,5W max.
