INBAY® QI TRÅDLØS OPLADNING 15W FIAT DUCATO 2006>

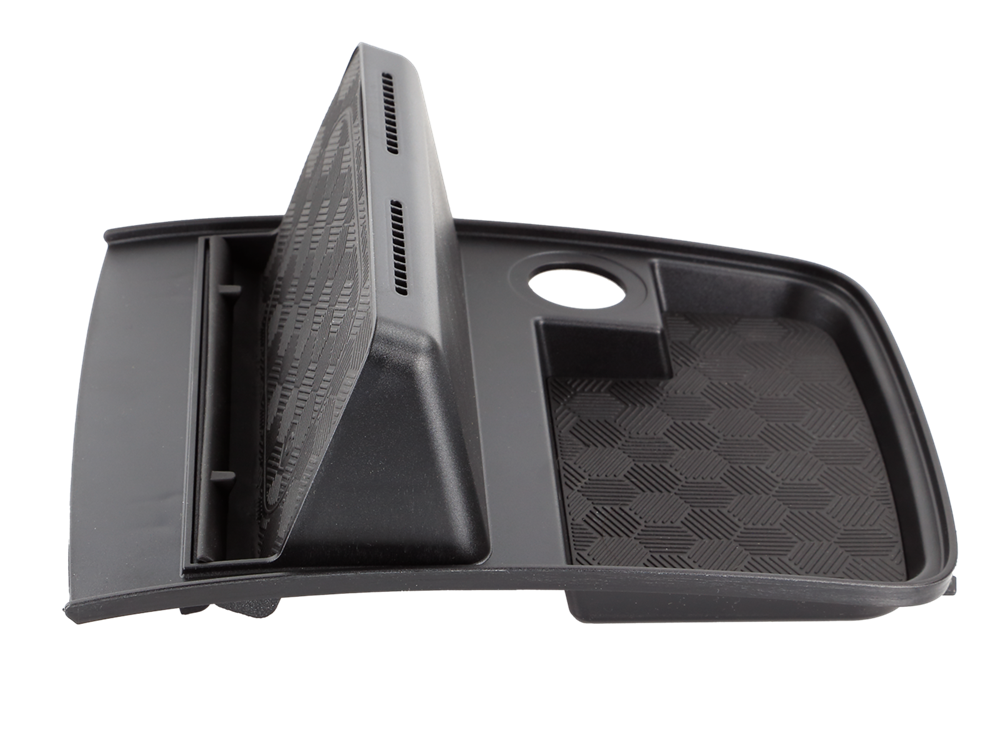

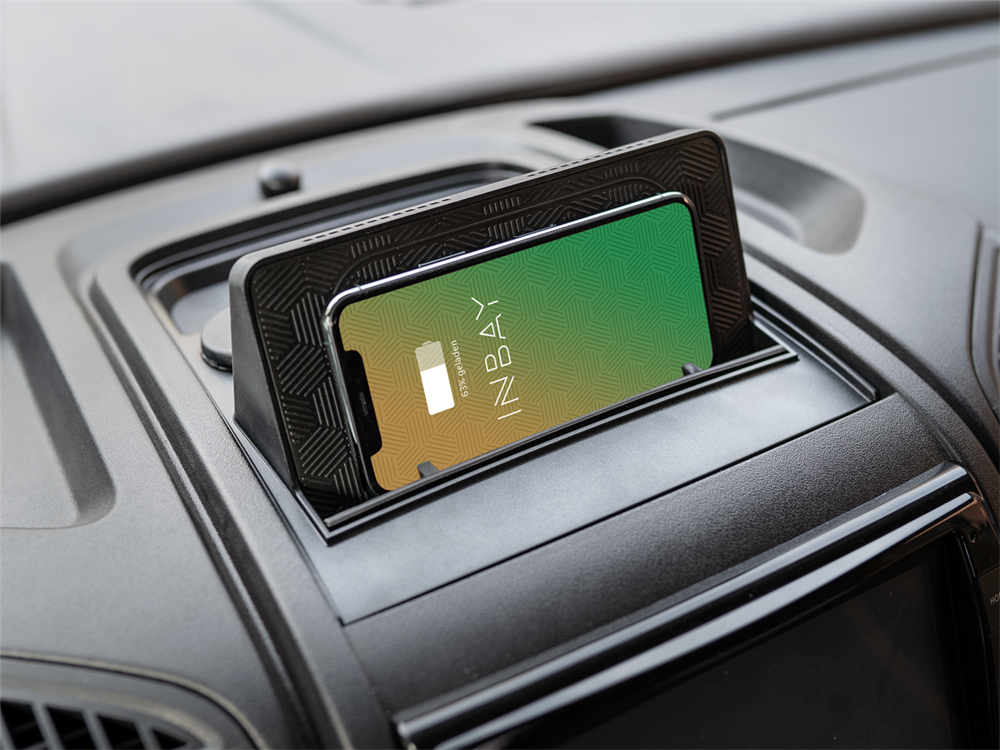

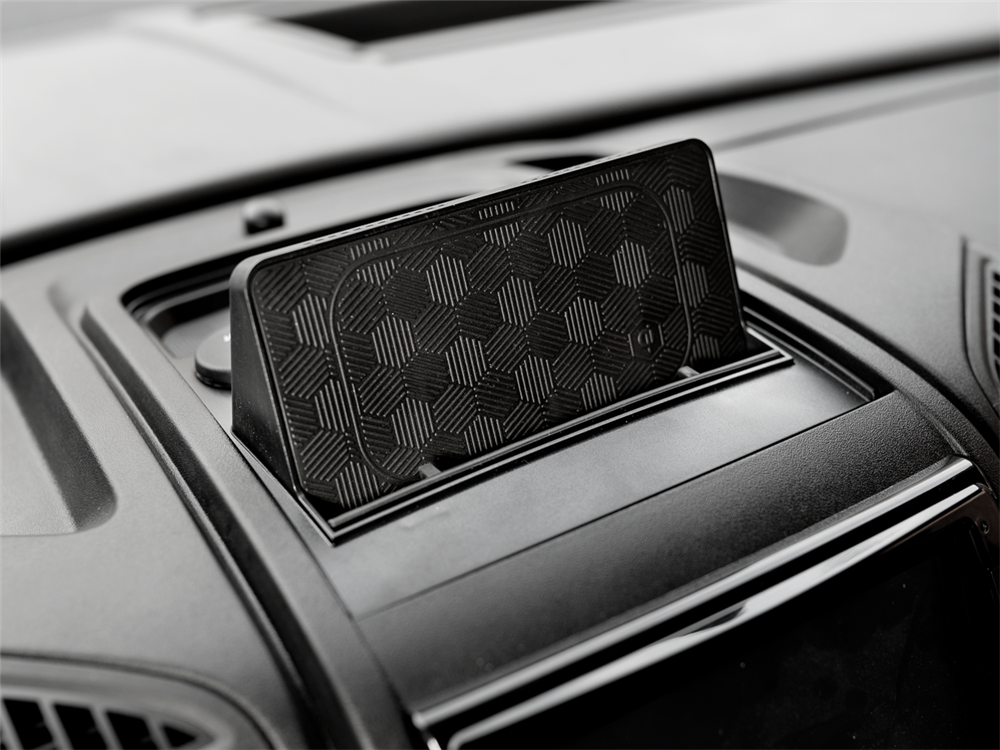

INBAY® pocket Citroen / Fiat / Opel / Peugeot

Made in Germany 10 Watt

This pocket supports wireless inductive charging of smartphones using INBAY®

All INBAY® products work with the worldwide established Qi-standard for wireless charging.

All smartphones certified by the international Wireless Power Consortium are compatible with INBAY®.

INBAY® meets the following technical specifications:

Qi certified by the Wireless Power Consortium
ECE mark of conformity > 10R - 05 15197
EMV Norm > FMC 1278
FOD - "foreign object detection"

INBAY® in the vehicle:

No interferences with the vehicle bus system
No inteferences with the vehicle electronics
No interferences with audio reception AM/FM/DAB+

Note:

vehicles with open dash
vehicles with 1-DIN OEM HU

vehicles without 10/2011> without 2-DIN OEM HU
vehicles without Delphi / Continental VP1 / VP2 OEM HU

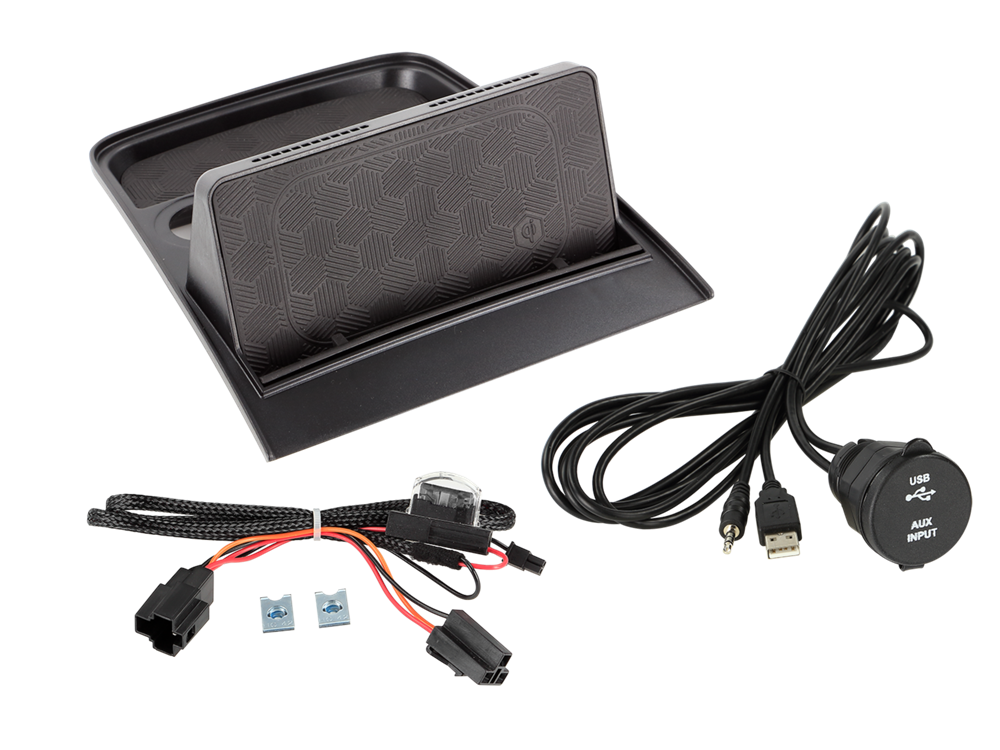

Connector:

power supply > specific Y-cable Plug & Play
USB-A > USB-A
AUX 3,5mm Jack plug > AUX 3,5mm Jack plug

Vehicle application:

Citroen
Citroen Jumper (250) 10/2006 - 11/2011
Citroen Jumper (250) 11/2011 - 05/2014*
Citroen Jumper (250) 05/2014 - 2022
Citroen Relay (250) 2006- 2022

Fiat
Fiat Ducato (ZAF 250) 06/2006 - 06/2011
Fiat Ducato (ZAF 250) 06/2011 - 05/2014*
Fiat Ducato (ZAF 250) 05/2014 -11/2021

Opel
Opel Movano Cargo C (Y) 10/2021 - 2022

Peugeot
Peugeot Boxer (Y) 02/2007 - 07/2011
Peugeot Boxer (Y) 07/2011 - 05/2014*
Peugeot Boxer (Y) 09/2014 - 2022

*vehicles without 2-DIN OEM HU

Colour:
black

Dimensions of the smartphone with protective cover:
179mm x 85mm x 8,5cm max.

Input voltage:
+12V DC

Output voltage:
5V
9V

Output current:
1,2A max.

Output power:
5W compatible Smartphones > 5W max.
7,5W compatible Smartphones > 7,5W max.
10W compatible Smartphones > 10W max.

Apple iPhone > 7,5W max.
