INBAY® QI TRÅDLØS OPLADNING 10W VW TIGUAN 1/GOLF PLUS 2004 > 2016

INBAY® pocket Volkswagen

10 Watt

This pocket supports the wireless inductive charging from smartphones with INBAY®

INBAY® products use the Qi standard
This is the worldwide standard for wireless charging
That is why all smartphones which uses the Qi standard are compatible with INBAY

INBAY® meets the following technical specification:
QI-certification
ECE mark of conformity 10R - 05 15197
EMV Norm FMC 1278
FOD - "foreign object detection"

No interferences of radio / DAB audio reception
No disruption of the bus system
No harzard for other electronics in vehicle

Note:

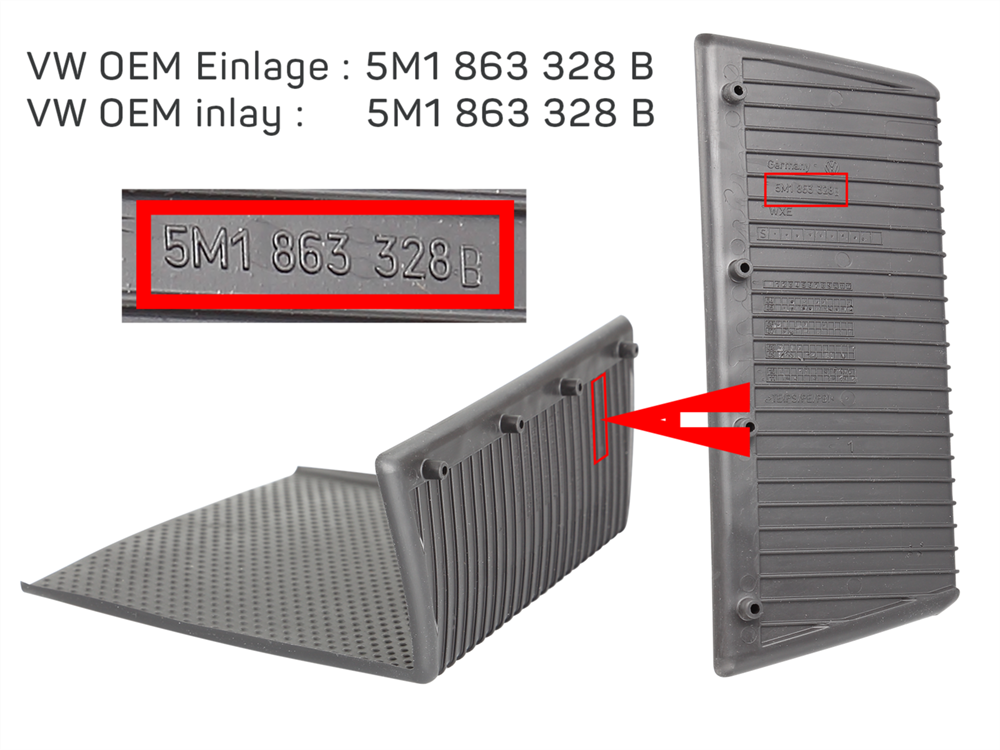

for vehicles with OEM inlay VW part-no.: 5M1 863 328 B
the VW part-no. is located on the rear side of the OEM insert (see picture no. 4)

Connector:

VW-specific Y-cable Plug & Play

Vehicle application:

VW Golf PLUS 12/2004 - 01/2014
VW Tiguan I (5N) 08/2007 - 01/2016

colour: black

max. space for smartphone 82 mm x 145 mm

charging current: DC5 - 9V / 1 - 1.2A (5W, 7.5W, 10W)
