INBAY® QI TRÅDLØS OPLADNING 15W OPEL ZAFIRA C 2012 > 2019

INBAY® pocket Opel

15 Watt

This pocket supports wireless inductive charging of smartphones using INBAY®

All INBAY® products work with the worldwide established Qi-standard for wireless charging.

All smartphones certified by the international Wireless Power Consortium are compatible with INBAY®.

INBAY® meets the following technical specifications:

QI-certification
ECE mark of conformity 10R - 05 15424
EMV Norm FMC 1278
FOD - "foreign object detection"

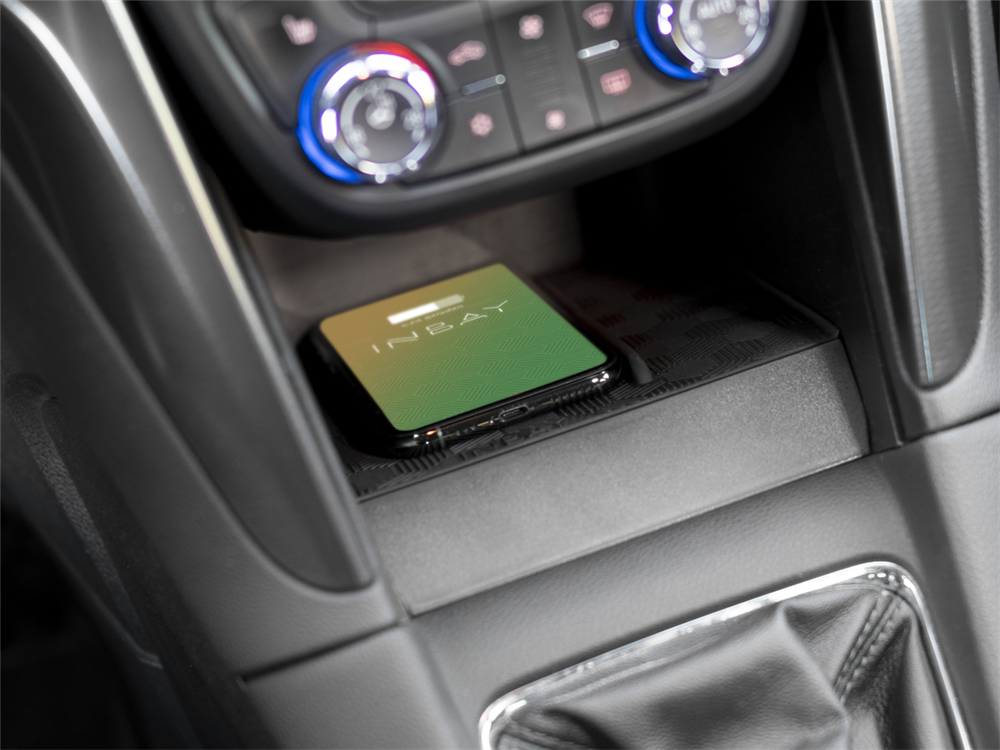

INBAY® in the vehicle:

No interferences with the vehicle bus system
No inteferences with the vehicle electronics
No interferences with audio reception AM/FM/DAB+

Note:

there must be no metallic objects between the charging unit and the smartphone

protective covers must not contain any metallic components

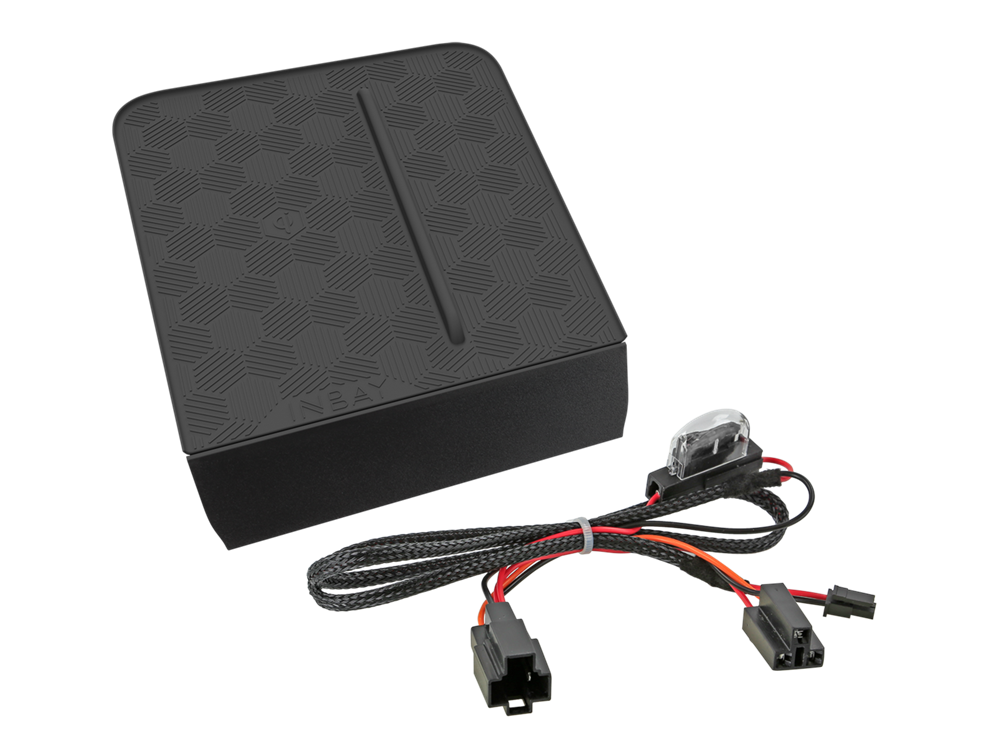

Connector:

Opel-specific Y-cable Plug & Play

Vehicle application:

Opel Zafira C (P12) 01/2012 - 06/2019

Colour:
black

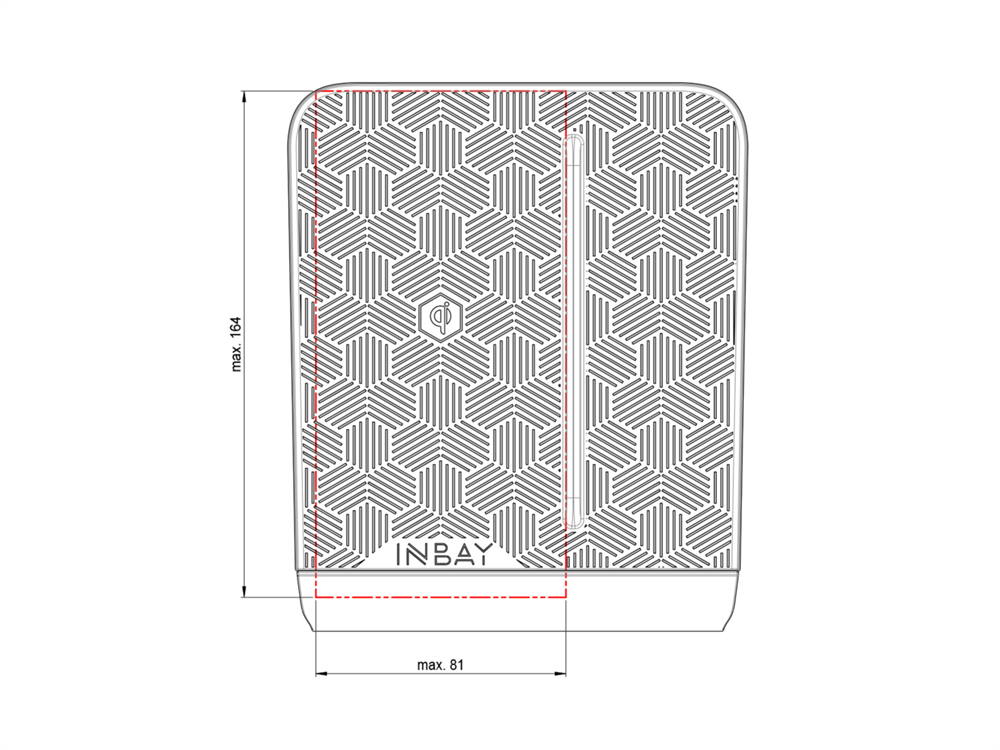

Dimensions of the smartphone with protective cover:
164mm x 81mm max.

Input voltage:
+12V DC

Output voltage:
5V
9V

Output current:
1,6A max.

Output power:
5W compatible Smartphones > 5W max.
7,5W compatible Smartphones > 7,5W max.
10W compatible Smartphones > 10W max.
15W compatible Smartphones > 15W max.

Apple iPhone > 7,5W max
