AUDIOCONTROL 8 KANAL HIGH LOW MED GTO (ARC) OG AUX-IN

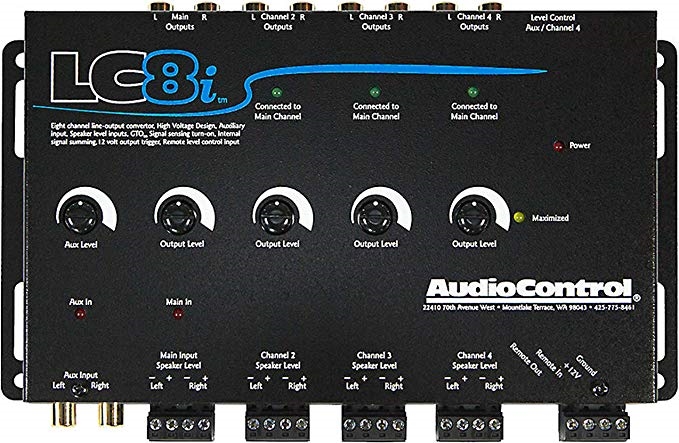

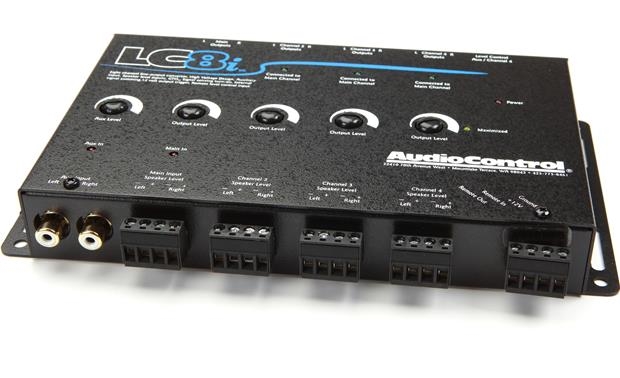

lc8i
8 channel line out converter with auxiliary input
The LC8i is a highly flexible eight-channel signal processor with active input circuitry that accepts speaker-level inputs, of up to 400 watts per channel, from factory-installed source units or amplifiers. It converts them to high-quality pre-amp signals that can then be directed to aftermarket processors and/or amplifiers. This means users will enjoy maximum sound quality while maintaining the use of factory volume and steering wheel controls.

Designed for maximum flexibility, the LC8i is equipped with an auxiliary input that allows the simple addition of secondary source units like iPods and satellite radio tuners. By tapping the dash control knob, a user can switch back and forth between the main speaker-level inputs and the auxiliary input. Additionally, the multi-function dash knob provides both volume control of the Auxiliary input and level adjustments for the subwoofer output.

The LC8i uses proven OEM integration technology derived from AudioControl’s highly popular LC6i, LC7i and The Epicenter® Plus signal processors. The speaker-level inputs accept high wattage signals (up to 400 watts per channel), either full range or crossed over, and converts them to high-quality pre-amp signals. Signals from factory radios with built-in crossovers can be summed and combined internally to provide a full-range preamp signal. Customers wanting to offer sound quality that is clearly better than OEM systems can also easily add one of AudioControl’s many crossovers or equalizers after the LC8i, providing even greater control over factory signals.

features
Eight input and output channels – will accept 400 watt signals per channel
Auxiliary input for easy interfacing of iPods or other portable audio devices
Multi-function dash control (included) allows for Source Selection, Auxiliary Input Volume plus Subwoofer Level Control
Internal channel summing
Selectable GTO™ Signal-sensing Turn-on Circuit
specifications
inputs
Speaker Level Inputs: 4 (8 channels)
Maximum Input (speaker level): 400W per channel at 4Ω
Preamp Inputs (Aux): 1 (2 channels)
Input Impedance: 20kΩ
outputs
Preamp Outputs: 4 (8 channels)
Maximum Output Level: 8.5Vrms
Output Gain: ±12dB
Output Impedance: 150Ω
performance
Total Harmonic Distortion: 0.01%
Frequency Response: 10Hz-22kHz
control
Remote In
12VDC Remote Out (always active when unit is on)
general
Power Supply: High Headroom PWM Switching
Current Draw: 350mA
Recommended Fuse Rating: 2A
weights & dimensions
Dimensions: 8.6”W x 4.75”D x 1.2”H
Weight: 3.0lbs (1.4kg)
in the box: LC8i, ACR-3 Remote, Speaker and Power connectors, Manual, Warranty
