AUDIOCONTROL 6 KANAL HIGH LOW MED GTO (ARC) OG ACCUBASS

lc7i

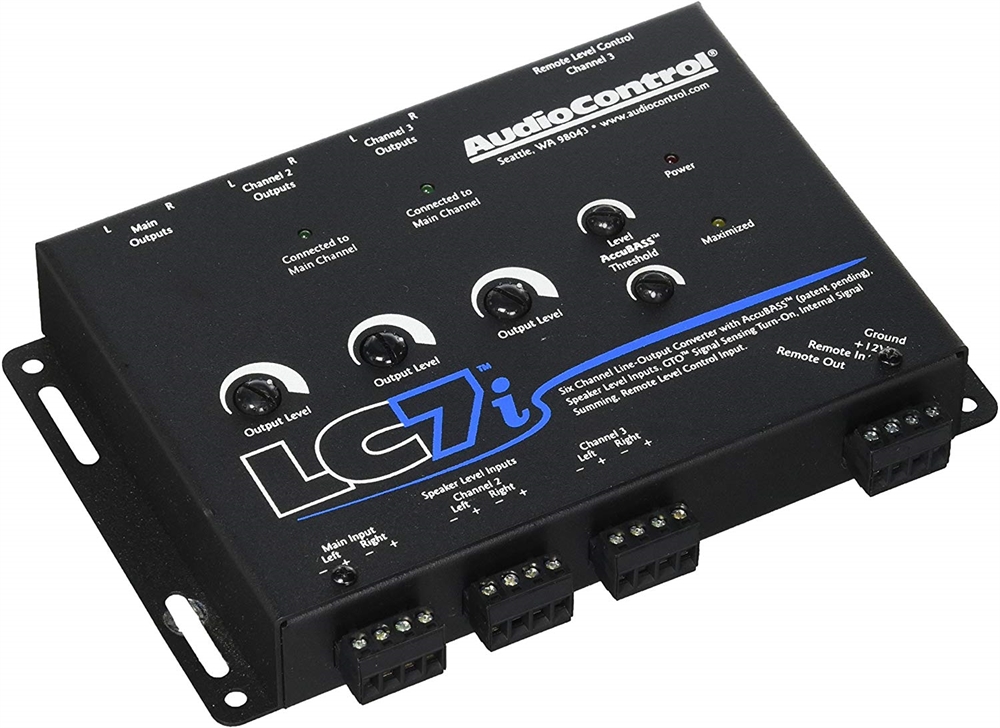

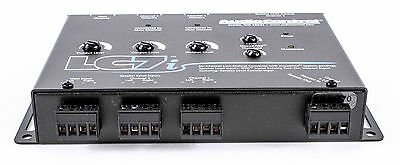

6 channel line output converter with accubass™
The AudioControl LC7i, six channel active line converter, allows all music lovers, who want a great in-car audio experience, to keep their factory installed source unit and dramatically improve their system performance. The LC7i delivers amazing sound quality and fixes one of the biggest letdowns of today’s factory systems, weak BASS!

Designed for maximum sound quality and enhanced audio performance, the LC7i incorporates AccuBASS™. This patented process automatically corrects for the bass roll-off that is common with many factory-installed audio systems and AudioControl’s unique and exclusive AccuBASS™ circuitry maintains and restores the Bass as the volume is turned up, improving the audio performance.

The LC7i allows the flexibility of powering the audio signals downstream to single or multiple factory amps maximizing sound quality & achieving high output at a great price. In addition, the LC7i is designed to fit into a compact chassis allowing an easy & flexible factory system upgrade in today’s space constrained vehicles. The ACR-1 dash remote (sold separately) allows the user to control the level of the low frequency output.
features
Six channels of active speaker level inputs – accepts up to 400 watts per channel
Patent Pending AccuBASS™ circuitry
Optional ACR-1 Remote allows for user control of the subwoofer level
Internal Channel Summing – For interfacing with factory installed amplifiers with built-in crossovers
GTO™ (Great Turn-On) Circuit – Powers up the LC7i when it detects signal on the speaker level input
Output level control
Compact chassis allowing for ease of installation
specifications
inputs
Speaker Level Inputs: 3 (6 channels)
Maximum Input (speaker level): 400W per channel at 4Ω
Input Impedance: 20kΩ
outputs
Preamp Outputs: 3 (6 channels)
Maximum Output Level: 8.5Vrms
Output Gain: ±12dB
Output Impedance: 150Ω
performance
Total Harmonic Distortion: 0.01%
Frequency Response: 10Hz-22kHz
control
Remote In
12VDC Remote Out (always active when unit is on)
general
Power Supply: High Headroom PWM Switching
Current Draw: 350mA
Recommended Fuse Rating: 2A
weights & dimensions
Dimensions: 7.5”W x 4.7”D x 1.2”H
Weight: 1.5 lbs (0.7 kg)
in the box: LC7i, Speaker and Power connectors, Manual, Warranty
