AUDIOCONTROL 6 KANAL HIGH LOW MED EQ OG SIGNAL DELAY

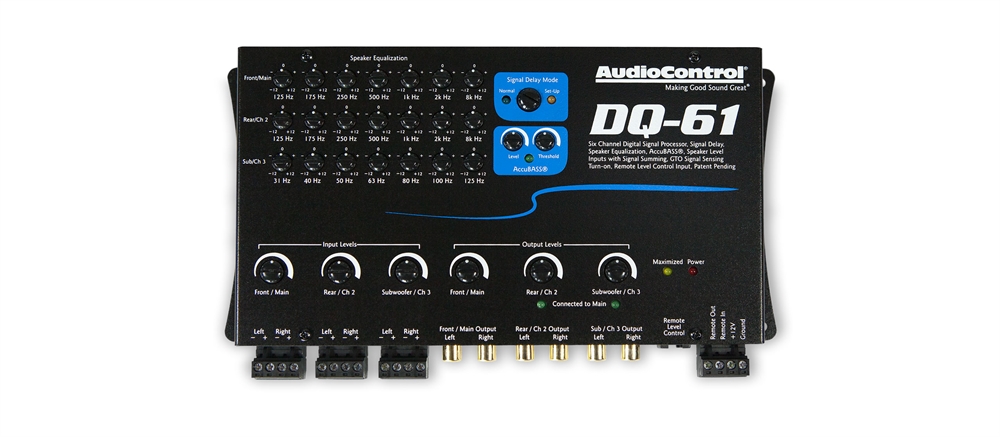

dq-61
6 channel line out converter with signal delay and eq
The environment of today’s automobiles present challenges for the installation of a performance car audio system when matched to a factory source unit. Less than ideal speaker locations coupled with an acoustically unfriendly environment can compromise the experience. Fortunately for audio enthusiasts, the new AudioControl DQ-61 delivers the processing power necessary to maximize the audio experience.

AudioControl engineers designed the DQ-61 to be an extraordinary processor, so subsequently it is equipped with a number of installer friendly features that simplify the OEM connection and calibration process.

User friendly Signal Delay controls allow the listeners the ability to align themselves between the left and right speakers plus seamlessly blend in the subwoofer to the listening environment. Discrete equalization controls provide listeners with powerful processing to properly “tune” their audio systems and enjoy truly amazing sound.

Designed for maximum sound quality and enhanced audio performance, the DQ-61 is the latest AudioControl processor to incorporate AccuBASS®. This patent pending process automatically corrects for the bass roll-off that is common with many factory-installed audio systems.
features
Free iOS Mobile Tools app with DQ-61 Delay module
User friendly Signal Delay enhances the acoustical alignment between the left and right channels plus the front and subwoofer channels
Individual equalization controls for the front, rear and subwoofer channels for simple yet precise system tuning
Six channels of active speaker level inputs – accepts up to 400 watts per channel
AccuBASS® – AudioControl’s patented pending processing to correct the bass roll-off in factory source units
ACR-3 Dash Control Remote allows for control of the subwoofer level plus processing bypass which makes it ideal for demonstrations
Internal Channel Summing – Easy interface with factory installed amplifiers with built-in crossovers
GTOTM (Great Turn-On) Circuit – Powers up the DQ-61 when it detects signal on the main speaker level input
Discrete Input and output level controls
specifications
inputs
Speaker Level Inputs: 3 (6 channels)
Maximum Input (speaker level): 400W per channel at 4Ω
Input Impedance: 20kΩ
outputs
Preamp Outputs: 3 (6 channels)
Maximum Output Level: 7.5Vrms
Output Gain: ±12dB
Output Impedance: 150Ω
performance
Total Harmonic Distortion: 0.01%
Frequency Response: 10Hz-22kHz
Equalizer Frequencies (front/rear): 125Hz, 175Hz, 250Hz, 500Hz, 1kHz, 2kHz, 8kHz
Equalizer Frequencies (sub): 31.5Hz, 40Hz, 50Hz, 63Hz, 80Hz, 100Hz, 125Hz
Signal Delay Max (Left/Right): 10ms
Signal Delay Max (Front/Sub): 35ms
control
Remote In
12VDC Remote Out (always active when unit is on)
general
Power Supply: High Headroom PWM Switching
Current Draw: 350mA
Recommended Fuse Rating: 2A
weights & dimensions
Dimensions: 8.6”W x 5”D x 1.25”H
Weight: 3.0lbs (1.4kg)
in the box: DQ-61, ACR-3 Remote, Speaker and Power connectors, Manual, Warranty
