AUDIOCONTROL 2 KANAL HIGH LOW MED AccuBASS® & Subwoofer Control

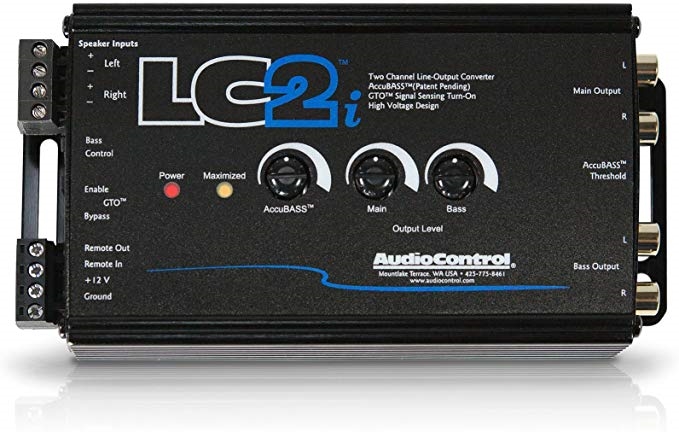

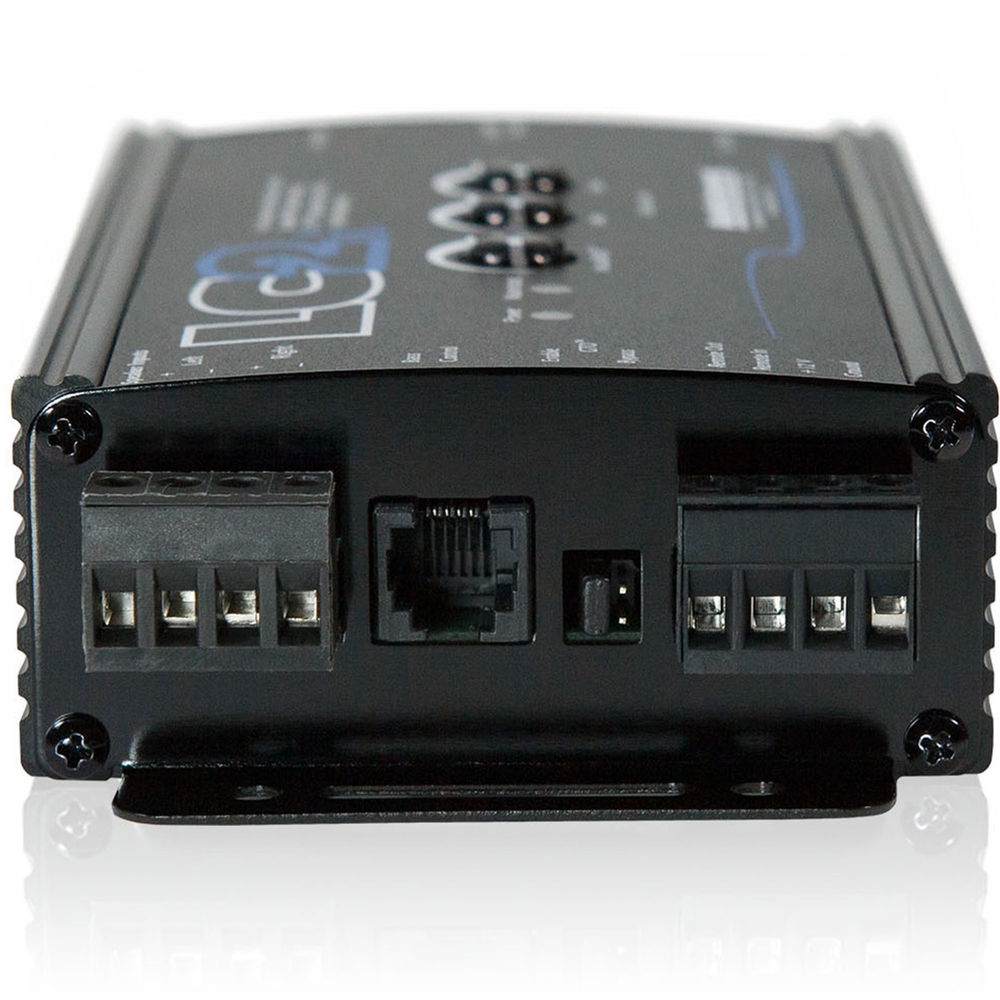

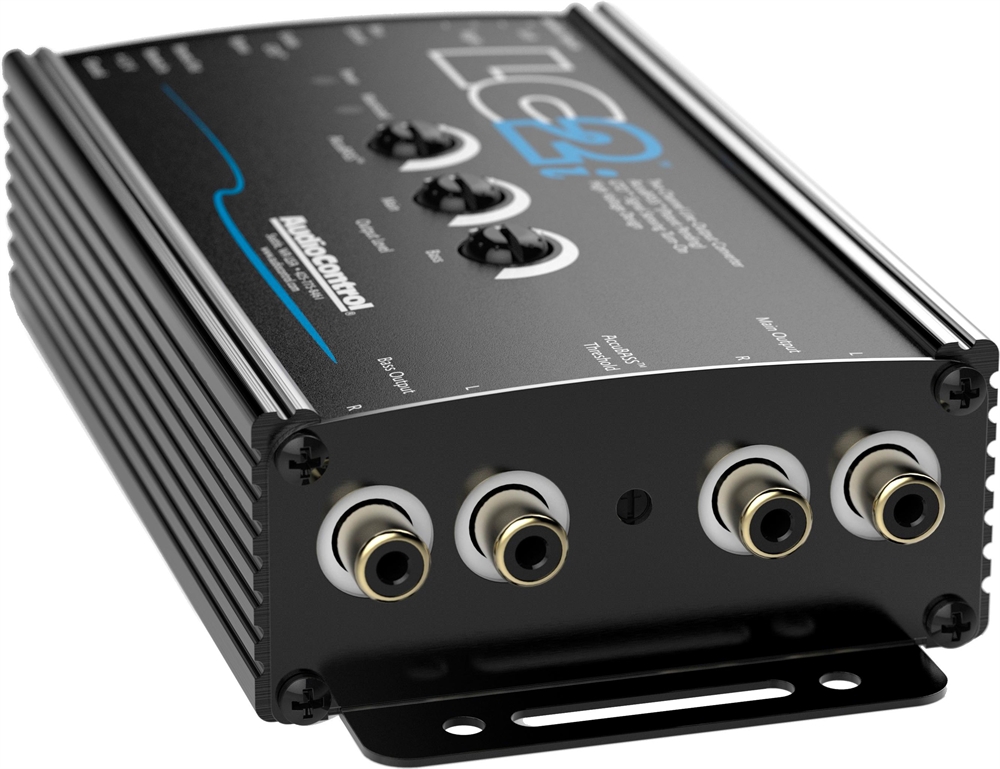

lc2i
2 channel line out converter with accubass® and subwoofer control
The LC2i, is a compact, two-channel processor with active input circuitry, which allows it to accept speaker-level signals of up to 400 watts per channel from factory-installed source units or amplifiers. It converts them to high-quality pre-amp signals that can then be directed to after-market processors and/or amplifiers. Users can enjoy maximum sound quality while maintaining the use of factory volume and steering wheel controls.

features
Two channels of Active speaker level inputs – Accept 400 watt signals per channel
Fixed and variable outputs with discrete level controls
AccuBASS® processing for correction of bass roll-off
GTOTM Signal Sensing
Input For Optional Remote Level Control
Compact design
specifications
inputs
Speaker Level Input: 1 (2 channels)
Maximum Speaker Level Input: 400W per channel at 4Ω
Input Impedance: 20kΩ
outputs
Preamp Outputs: 2 (2 channels main, 2 channels bass)
Maximum Output Level: 9.5Vrms/13V peak
Output Impedance: 150Ω
performance
Total Harmonic Distortion: 0.01%
Signal to Noise: >110 dB
Frequency Response: 33 Hz – 100 kHz ±1 dB
control
Remote In
12VDC Remote Out (always active when unit is on)
general
Current Draw: 150mA
Recommended Fuse Rating: 1A
weights & dimensions
Dimensions: 5.4″L x 3.25″D x 1.5″H (6.5″L including mounting brackets)
Weight: 1.0lbs (0.5kg)
in the box: LC2i, Speaker and Power connectors, Manual, Warranty
