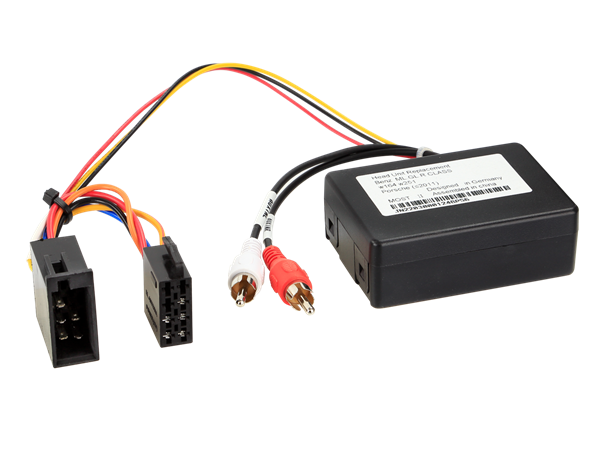

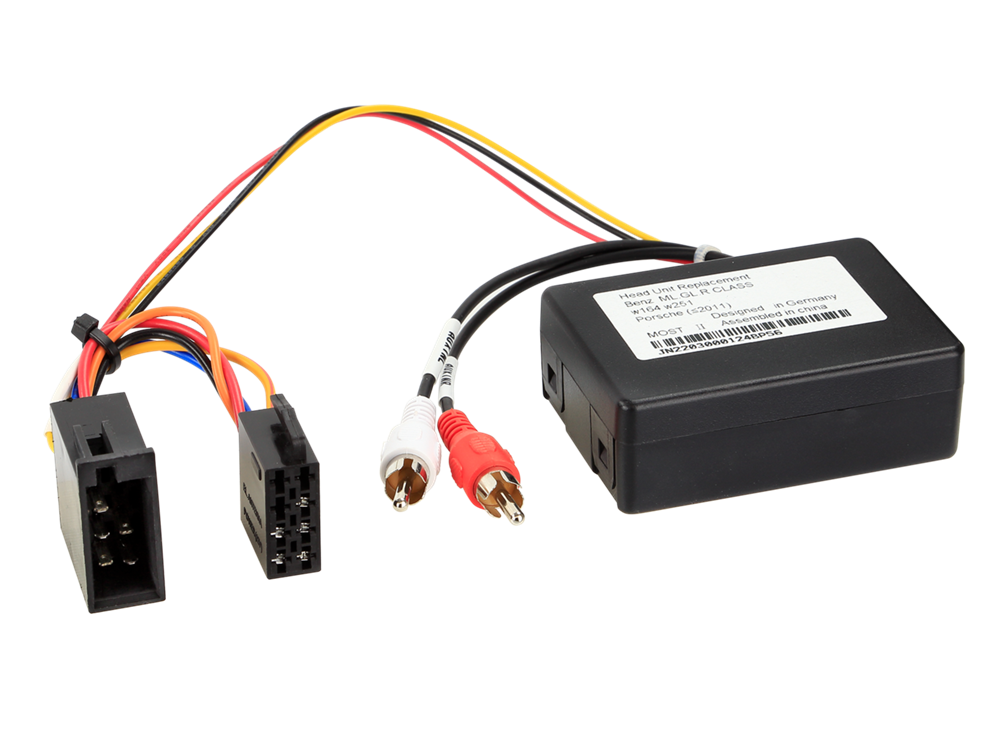

AKTIV SYSTEM INTERFACE MERCEDES/PORSCHE MOST>RCA ISO

Note:

connector: OEM amplified system MOST > RCA(m) red/white
connector: loose wires

vehicles with MOST25 OEM amplified system

Mercedes:
vehicles with Audio 50 Comand NTG2 / NTG2.5 OEM Sat Nav
vehicles with 40 Pin Quadlock connector

vehicles without Comand 2.0 / 2.5 OEM Sat Nav
vehicles without D2B Optical Bus

Porsche:
vehicles with CDR24 / CDR30 / CDR31 OEM HU
vehicles with PCM2.0 / PCM2.1 / PCM3.0 / PCM3.1 OEM OEM Sat Nav

vehicles with PCM4.0 Sat Nav:
Active system adapter Porsche PCM4.0 OEM HU MOST>RCA > item: 13-1323-50

vehicles 986 / 911 / 996 without YAZAKI Optical Bus System

Connection:
yellow: +12V current power clamp 30
black: GND clamp 31
red: +12V switched ignition clamp 15 / Amp remote / antenna remote

RCA > front preamp output retrofit HU
fader not supported

OEM devices > CD-Changer / TV-Tuner / Phone Modul must be bypassed from the MOST ringsystem
Fibre optic connector MOST-ring > item: 771000-2100
Fibre optic loop(f) MOST-ring > item: 771000-2101

Vehicle applications:

Mercedes
Mercedes A-class (W169) 10/2004 - 04/2012
Mercedes A-class (C169) 11/2004 - 07/2011
Mercedes B-class (T245) 6/2005 - 06/2011
Mercedes C-class (W203) 02/2004 - 09/2007
Mercedes GL-class (X164) 09/2006 - 05/2009
Mercedes GL-class (X164) 05/2009 - 07/2012
Mercedes M-class (W164) 07/2005 - 04/2008
Mercedes M-class (W164) 10/2008 - 07/2011
Mercedes ML (W164) 07/2005 - 04/2008
Mercedes ML (W164) 10/2008 - 07/2011
Mercedes R-class (W251) 09/2005 - 05/2007
Mercedes R-class (W251) 05/2007 - 05/2010

Porsche
Porsche 911 (997) 07/2004 - 08/2009
Porsche 911 (977) 08/2008 - 05/2013
Porsche 911 (991) 12/2011 - 01/2017
Porsche Boxster (987) 10/2004 - 01/2009
Porsche Cayenne (9PA/955) 09/2002 - 12/2006
Porsche Cayenne (9PA/955) 02/2007 - 02/2010
Porsche Cayenne (92A/958) 05/2010 - 12/2017
Porsche Cayman (987C) 11/2005 - 01/2008
Porsche Macan (95B) 04/2014 - 08/2018
Porsche Panamera (970) 09/2009 - 07/2016
