Varenr.: 13-1270-51
På lager hos vores leverandør

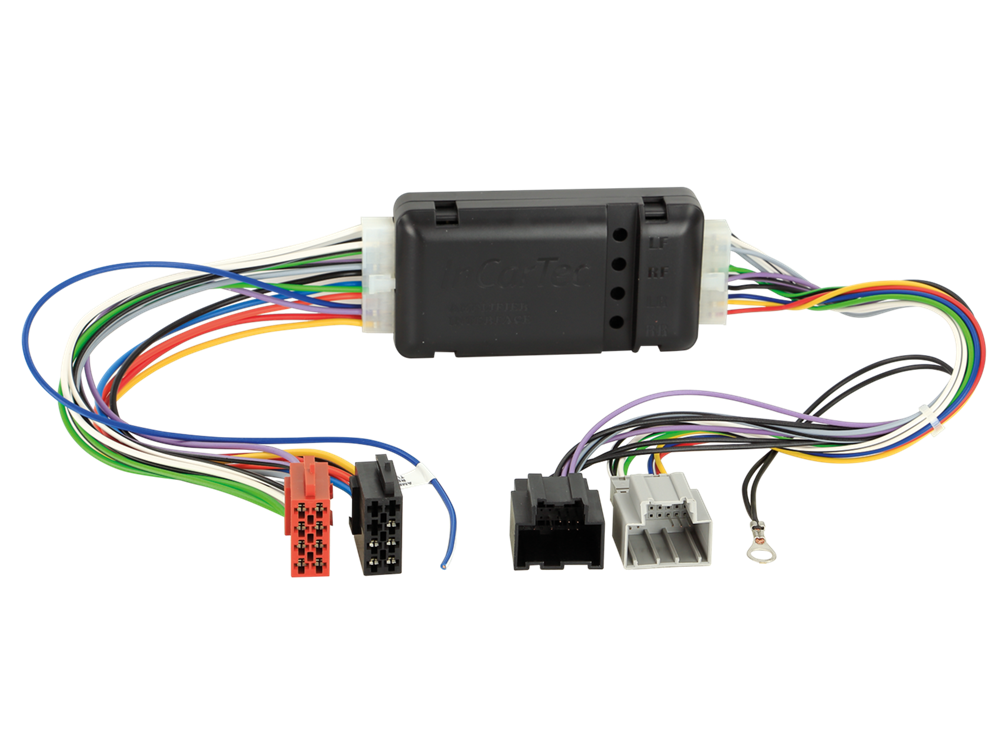

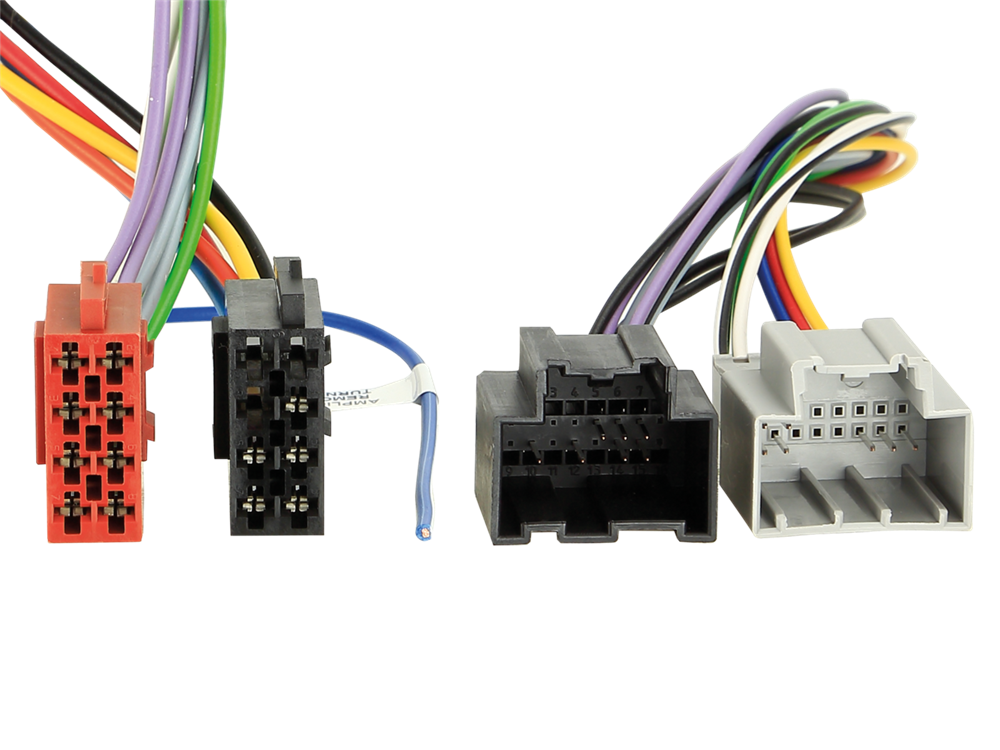

connector: 14 Pin / 16 Pin Saab plug > ISO plug

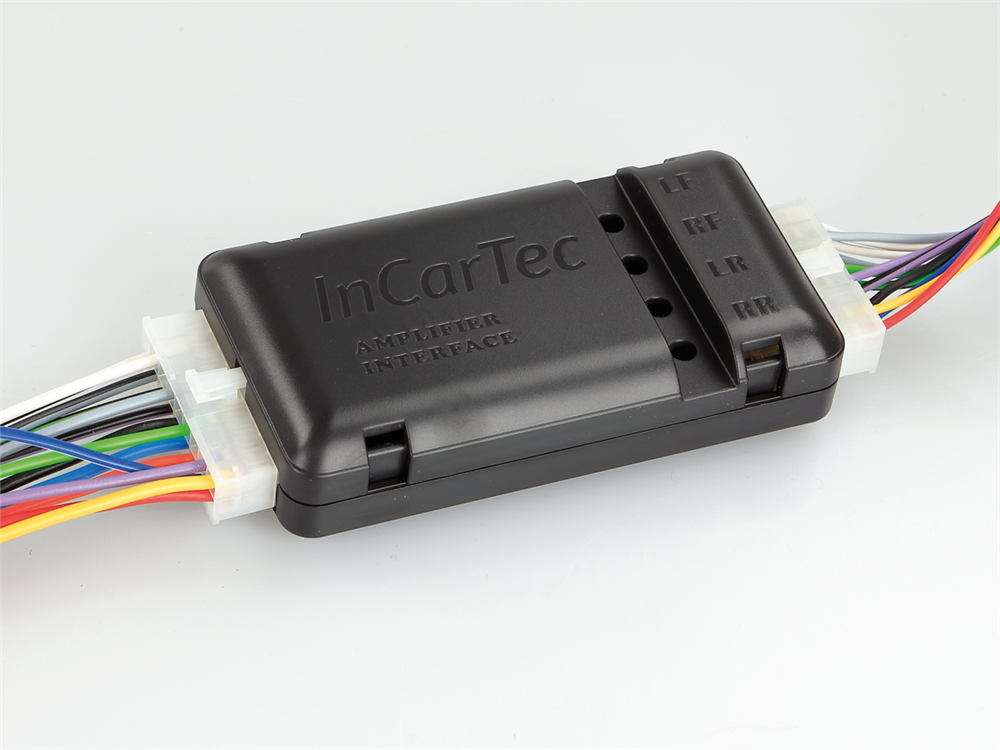

output: OEM amplified system 4 channel adjustable
vehicles with Denso OEM Sat Nav
blue: +12V Amp remote
black: GND clamp 31
Vehicle applictation:
Saab 9.5 (YS3E) 09/2005 - 06/2010
There is normally a Black, Grey and Green connector in the car.
Because the OEM navigation units fitted to these Saabs were not compatible with the new GM LAN bus, you need to use steering control 29-694.V2 or 29-742 (connected under the steering cowling)
Fitting instructions for the amplifier interface are included. The amp turn on wire to the car is already wired in the vehicle connectors, the amp turn on wire to the radio needs to be connected.
