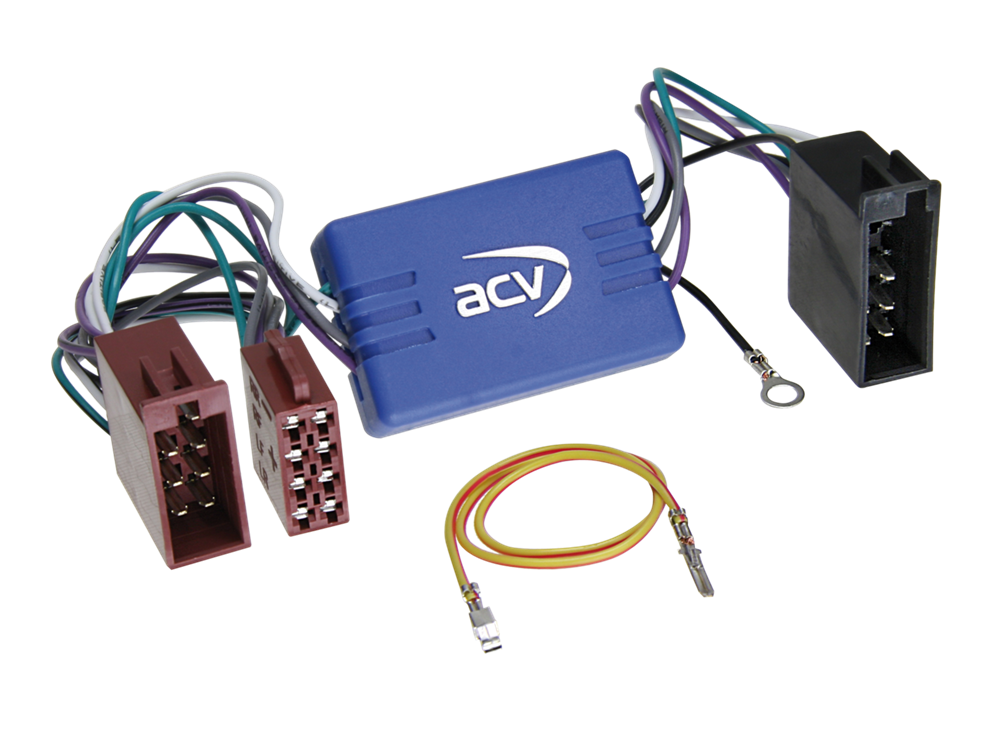

AKTIV SYSTEM INTERFACE AUDI/VW MED ISO-10 PIN (IKKE NOKIA OG BOSE)

Amplified system adapter Audi / VW

Active system adapters maintain the function of an OEM amplified system.

This allows the connection of an aftermarket HU to an OEM amplified system while retaining the OEM amplifier and connected speakers by adapting, matching or converting the output signals of the signal source to the signal input of the OEM amplifier.

Depending on the vehicle and the installed OEM amplified system, various functions such as fader, sound or subwoofer settings might be lost.

In individual cases, depending on the OEM system and the retrofit radio, increased noise or a switch-on or switch-off noise may occur.

Check functionality before final assembly.

Note:

connector: ISO speaker plug / 10 Pin ISO plug > ISO speaker plug

vehicles with 2 channel / 4 channel OEM amplified system

vehicles without BOSE / Nokia DSP OEM amplified system

yellow/red: +12V Amp remote according to vehicle wiring diagram
yellow/red: +12V Amp remote check with OEM HU: 10 Pin ISO plug Pin 6
yellow/red: +12V Amp remote check with OEM HU: ISO power plug Pin 3 / Pin 5
black: GND clamp 31

Vehicle applictation:

Audi
Audi 80 (B3/89) 07/1986 - 12/1991
Audi 80 (B4/8C/P1) 09/1990 - 03/1996
Audi 80 Convertible (B4/8C) 02/1997 - 06/2000
Audi 90 (B2/81/85) 04/1086 - 10/1986
Audi 90 (B3/89) 05/1987 - 12/1991
Audi 100 (C3/44) 10/1982 - 01/1988
Audi 100 (C3/44) 01/1998 - 12/1990

VW
VW Corrado (531) 08/1988 - 07/1991
VW Corrado (531) 07/1991 - 12/1995
VW Golf II (19E) 08/1983 - 08/1987
VW Golf II (19E/1G1) 08/1987 - 12/1992
