Varenr.: 13-1320-52
På lager hos os

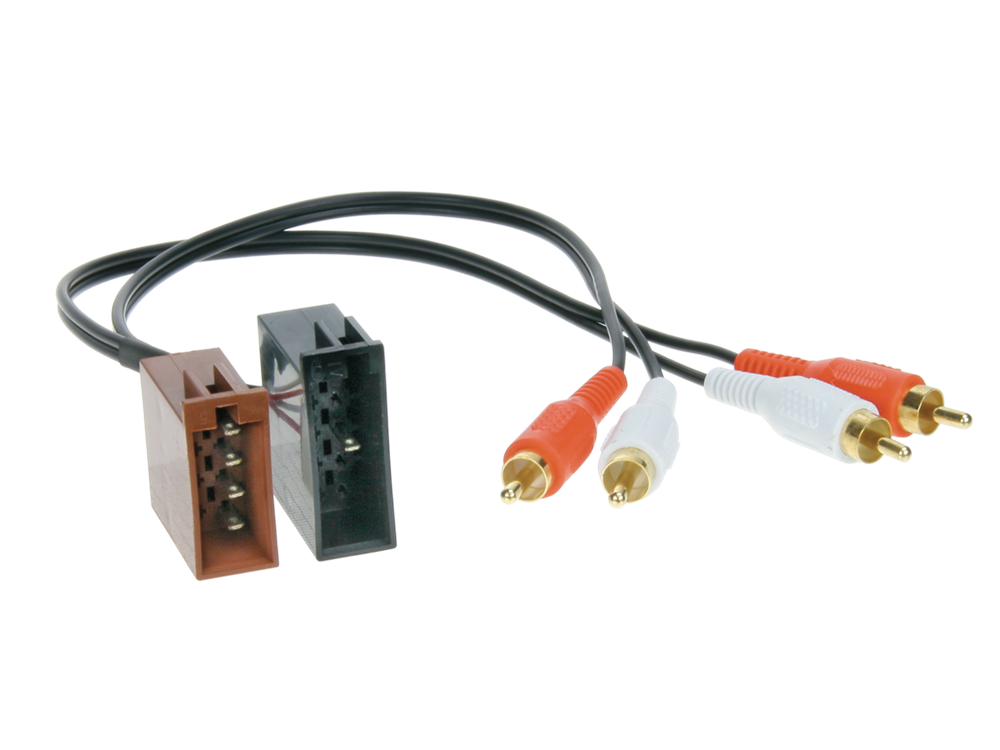

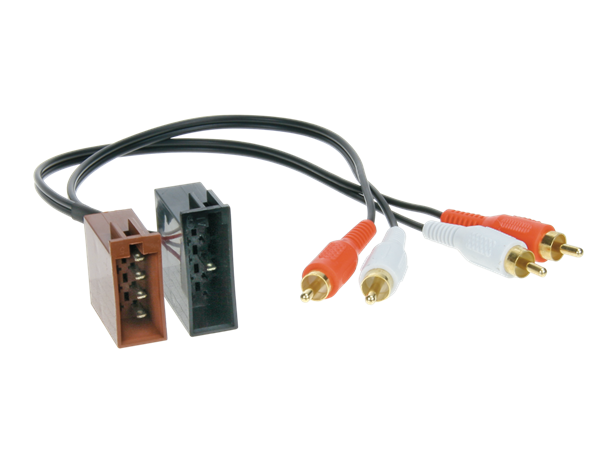

Active system adapter VW
Active system adapters maintain the function of an OEM amplified system.
This allows the connection of an aftermarket HU to an OEM amplified system while retaining the OEM amplifier and connected speakers by adapting, matching or converting the output signals of the signal source to the signal input of the OEM amplifier.
Depending on the vehicle and the installed OEM amplified system, various functions such as fader, sound or subwoofer settings might be lost.
In individual cases, depending on the OEM system and the retrofit radio, increased noise or a switch-on or switch-off noise may occur.
Check functionality before final assembly.
Note:
connector: RCA(m) > OEM amplified system ISO speaker plug
connector: RCA(m) > OEM amplified system 10 Pin ISO plug
+12V Amp remote check with OEM HU: 10 Pin ISO plug Pin 6
+12V Amp remote check with OEM HU: ISO power plug Pin 3 / Pin 5
vehicles with Nokia OEM amplified system
Vehicle applictation:
VW Corardo (531) 07/1991 - 12/1995
VW Golf III (1H) 09/1991 - 02/1998
VW Passat (B4) 08/1993 - 08/1996
VW Vento (1H5) 01/1992 - 03/1998
