Varenr.: Z-EACC-DWDIF
På lager hos os
Adapter så man kan bruge de indlagte kabler i auto-campere med zenec og acv kameraer med 4-pin stik. Passer på både 1 og 2 linsers kamera.
Cable adapter set for ZENEC cameras – for motorhomes with factory pre-routed DOMETIC 6-Pin camera cable.

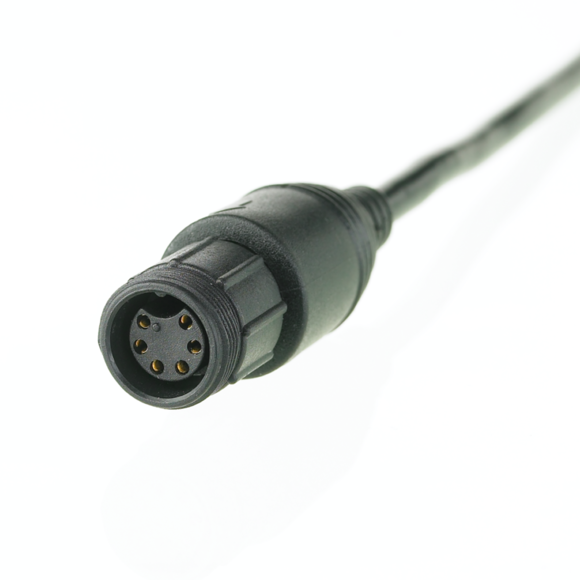

For DOMETIC camera cable (gray cable with threaded lock screw) and direct connection of ZENEC camera models with Mini 4-Pin connector (m) on camera side and Mini 4-Pin (f) RCA/power adapter to infotainers/
moniceivers/naviceivers with rear view camera video input, or ZENEC multi-view input.
Z-EACC-DWDIF for DOMETIC camera cable (grey): e.g. for DETHLEFFS, BÜRSTNER, HOBBY, CARTHAGO, MALIBU motorhomes
Since the various ZENEC cameras have different equipment features (e.g. with Mic, without Mic or Multiview), the monitor side is adapted to Mini 4-Pin, so that the Power/Cinch cable end-piece contained in the camera set content can be used.

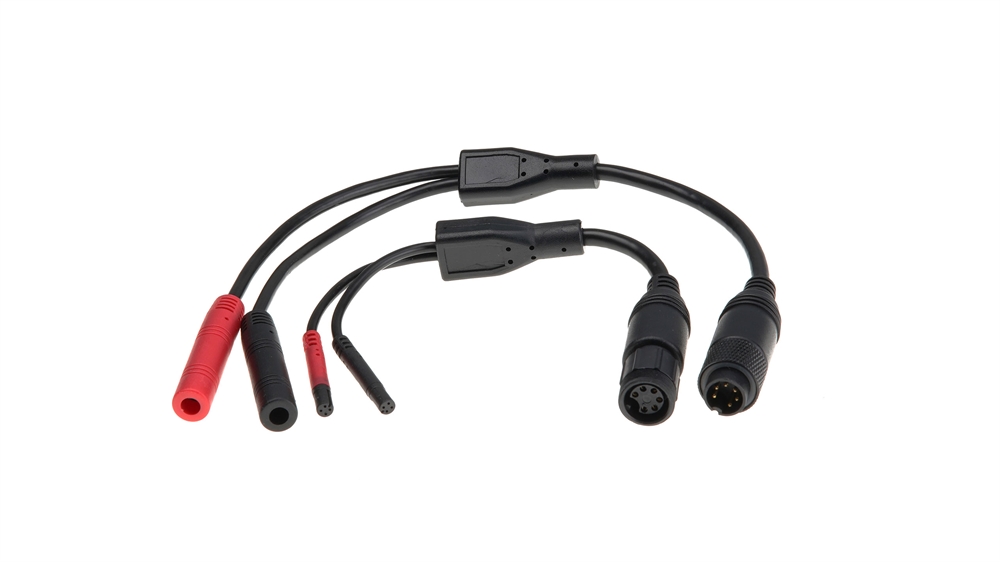

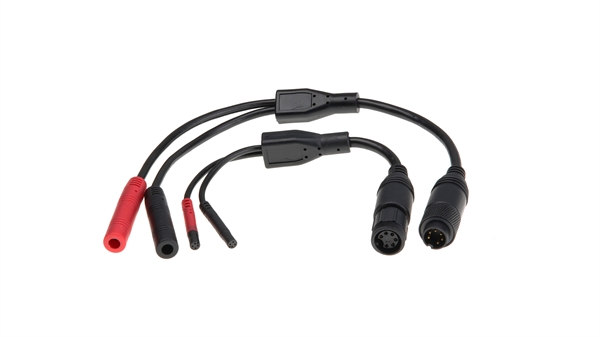

The adapters are intentionally designed as Y-version (red/black) with 2 x Mini 4-Pin plug and socket, so that the adapters can also cover new dual sensor camera models in the future.
Due to the pre-routed 6-Pin system cable, only red is fully assigned for MV and MIC with power and video, the black one is purely for power and video signal.
