Varenr.: Z-EACC-CADIF
På lager hos os
Adapter så man kan bruge de indlagte kabler i auto-campere med zenec og acv kameraer med 4-pin stik. Passer på både 1 og 2 linsers kamera.
Adaptor sets for pre-routed main cables
Camera adapter sets suitable for selected ZENEC cameras and the factory pre-routed main cable for various motorhomes, e.g. ADRIA, BÜRSTNER, CARTHAGO, DETHLEFFS, HOBBY, HYMER, PÖSSL etc.
The uppermost three camera adapter sets are suitable for the current ZENEC single camera models fitted mini 4-pin connectors (e.g. ZE-RCE3701-MK2-S, ZE-RVC82MT) and the new multi-view camera models which also deploy mini 4-pin connectors (ZE-RCE3703MV, ZE-RVC150MV, ZE-RVC80MV).
The four N-ZER adapter sets further down below are model-specific sets, suitable for individual ZENEC cameras.
The camera adapter sets simplify camera installation and connection immensely, as they directly adapt to the factory pre-routed main cable in the motorhome.
able adapter set for ZENEC cameras – for motorhomes and campervans with factory pre-routed CAMOS 6-Pin camera cable.
For CAMOS 6-Pin camera cable (with threaded lock screw) and direct connection of ZENEC camera models fitted with Mini 4-Pin connector (m) camera side and Mini 4-Pin (f) RCA/power adapter infotainers/moniceivers/naviceivers with rear view camera video input, or ZENEC multi-view input.
Z-EACC-CADIF for CAMOS camera cable: e.g. for HYMER and ADRIA motorhomes and in ADRIA campervans
Since the various ZENEC/Acv cameras have different equipment features (e.g. with Mic, without Mic or Multiview), the monitor side is adapted to Mini 4-Pin, so that the Power/Cinch cable end-piece contained in the camera set content can be used.

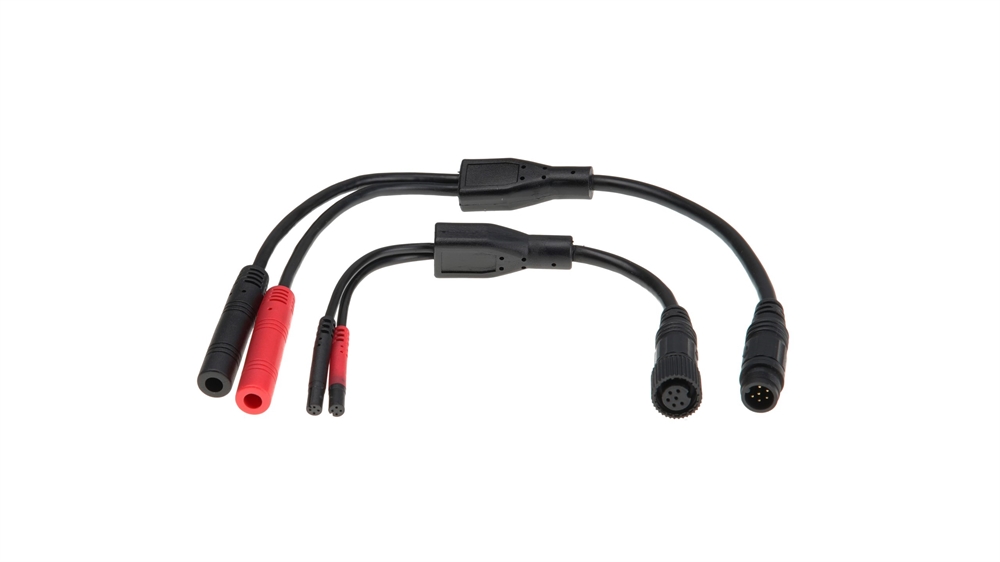

The adapters are intentionally designed as Y-version (red/black) with 2 x Mini 4-Pin plug and socket, so that the adapters can also cover new dual sensor camera models in the future.
Due to the pre-routed 6-Pin system cable, only red is fully assigned for MV and MIC with power and video, the black one is purely for power and video signal.
