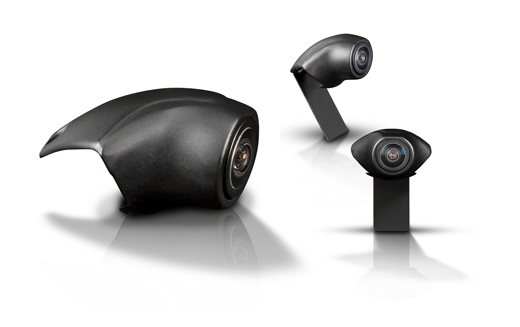

UNIVERSALT MINI NUMMERPLADE KAMERA

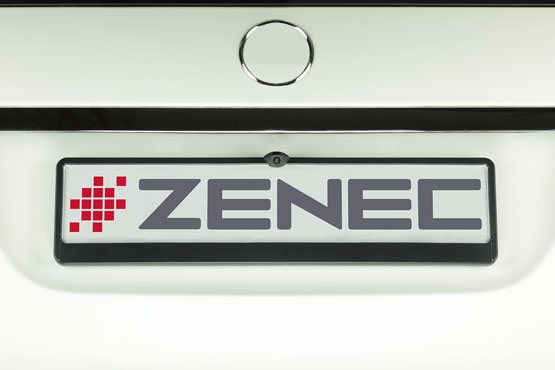

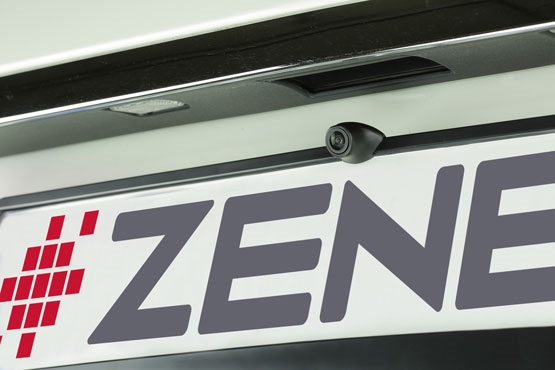

The ZENEC license plate cam model ZE-RVC55LP was developed for use on almost any license plate holder, allowing retrofitting of a great variety of vehicles. The picture can be outputted as normal or mirror image, for mounting and utilization of this model as front or as rear view camera.
With two different mounting options, the ZE-RVC55LP is ideal for use on almost any vehicle.
This product is compatible with a wide variety of 2-DIN A/V receivers of the aftermarket.
Compact, high-resolution camera for license plate holder
System design allows front- or rear-mounting and use
Normal or mirror image picture output selectable
Detailed high contrast picture ideally suited for twilight conditions
Separable 3-part system cable, with cable lengths of 0.7 m + 7.0 m + 0.7 m
Two different mounting solutions included in set content.
Image device 1/4” / 6.4 mm Aptina ASX340 CMOS sensor
Lens focal length F 1.5
TV system NTSC / 60 Hz
View angles 180°(D) x 140°(H) x 90°(V)
Native sensor resolution 680 (H) x 512 (V) pixels
Resolution of video-out > 420 TV lines
Frame rate 60 fields/sec.
Signal to noise ratio > 48 dB
Light sensitivity 0.5 Lux/F1.2/50IRE
Video output 1.0 Vp-p, 75 ohms CVBS
White balance Auto
Backlight compensation Auto
Gamma correction 0.45
Gain control Auto
Sync system Auto
Power supply 12 DCV (9 V – 16 V)
Current consumption 40mA (DC12V) / ≤ 480mW
IP protection rating IP69K
Operating temperature -30°C~+75°C
Dimensions screwed 20 x 32 x 32 mm (H x W x D), glued 37 x 32 x 32 mm (H x W x D)
