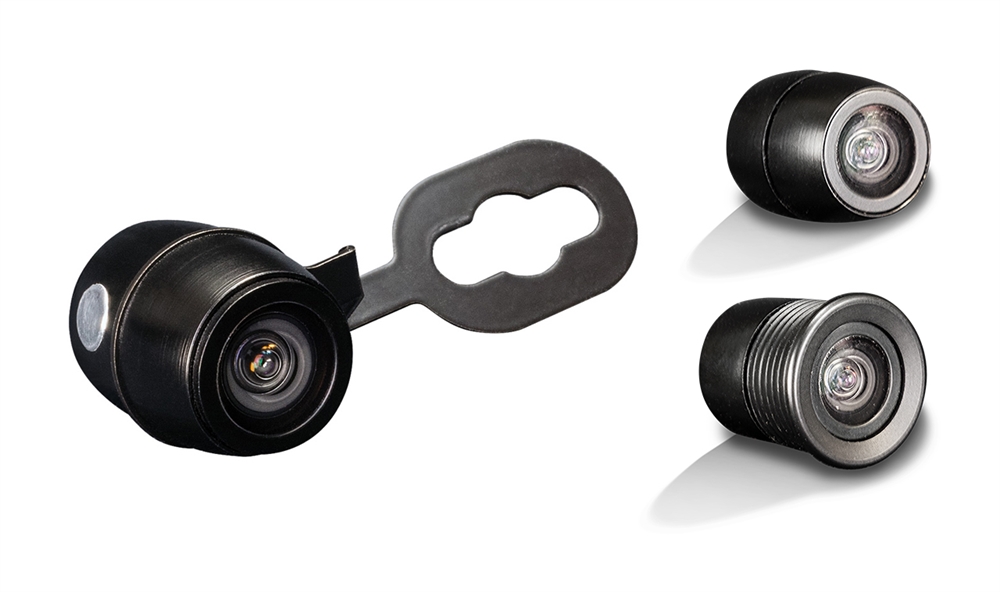

UNIVERSALT MINI KAMERA(12,5MM)

The ZENEC universal cam model ZE-RVC125MT can easily be retrofitted to almost any vehicle due to the very compact design and the three different mounting options.
The outputted normal or mirror image allows the utilization of this model as front or as rear view camera.
The usage of high quality materials, together with the sophisticated housing design results in IP69K protection class, for best possible weather resilience and long lifetime.
This product is compatible with a wide variety of 2-DIN A/V receivers of the aftermarket.
Compact, high-resolution universal rear view camera
System design allows front- or rear- mounting and use
Normal or mirror image picture output selectable
Detailed high contrast picture ideally suited for twilight conditions
Three different mounting solutions included in set content
Separable 3-part system cable, with cable lengths of 0.7 m + 7.0 m + 0.7 m.

Image device 1/4” / 6.4 mm Aptina ASX340 CMOS sensor
Lens focal length f 1.5
TV system NTSC / 60 fps
View angles 180°(D) x 140°(H) x 90°(V)
Native sensor resolution 680 (H) x 512 (V) pixels
Resolution of video-out > 420 TV lines
Frame rate 60 fields/sec.
Signal to noise ratio > 48 dB
Light sensitivity 0.5 Lux/F1.2/50IRE
Video output 1.0 Vp-p, 75 ohms CVBS
White balance Auto
Backlight compensation Auto
Gamma correction 0.45
Gain control Auto
Sync system Auto
Power supply DC 12V
Current consumption 40mA (DC12V) / ≤ 480mW
IP protection rating IP69K
Operating temperature -30°C~+75°C
Dimensions (H x W x D) 12.5 mm x 12.5 mm x 18.5 mm
