UNIVERSALT KAMERA WIDE ANGLE

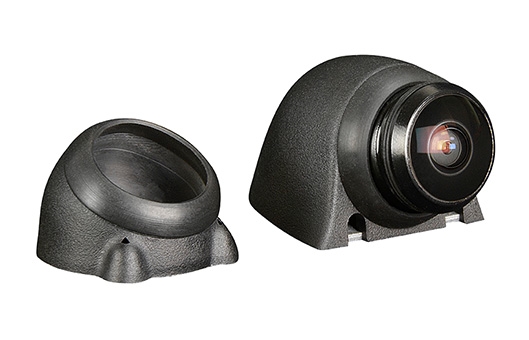

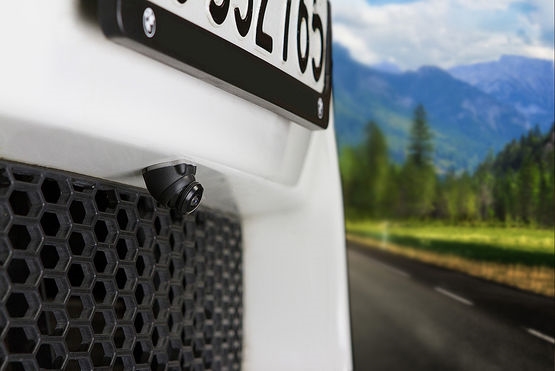

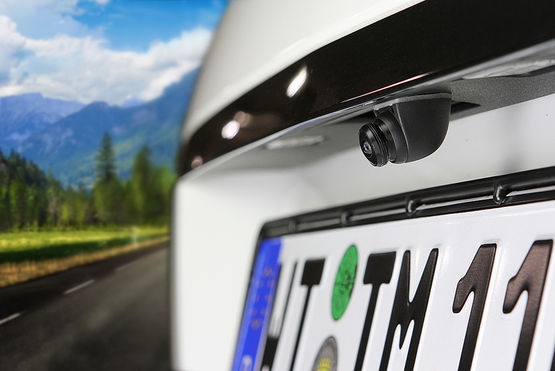

The ZENEC wide angle cam model ZE-RVC85WA was developed for universal use, allowing retrofitting of a great variety of vehicles due to its extremely compact housing shape. The picture can be outputted as normal or mirror image, for mounting and utilization of this model as front or as rear view camera. The set contains two housing/mounting adaptors to grant a most simple installation process.

Image device ¼“ / 6.4 mm Aptina ASX340 CMOS sensor
Lens focal length f1.05
TV system NTSC / 60 Hz
Viewing angle 210° (D) x 190° (H) x 140° (V)
Sensor resolution 680 (H) x 512 (V) pixels
Resolution of video-out > 420 TV lines
Frame rate 60 fields / sec.
Signal to noise ratio > 48 dB
Light sensitivity 0.5 Lux / F1.2 / 50 IRE
Video output 1 Vp–p, 75 ohms, CVBS
White balance auto
Backlight compensation Auto
Gamma correction 0.45
Gain control Auto
Sync system Auto
Power supply DC 5 - 16 V
Current consumption 60 mA (DC12 V) / ≤ 720 mW
IP protection rating IP69K
Max. Operating temperature -30° to +75° C
Dimensions front housing 22 x 25 x 27 mm
Dimensions rear housing 27 x 23 x 35 mm
Weight 20 g
