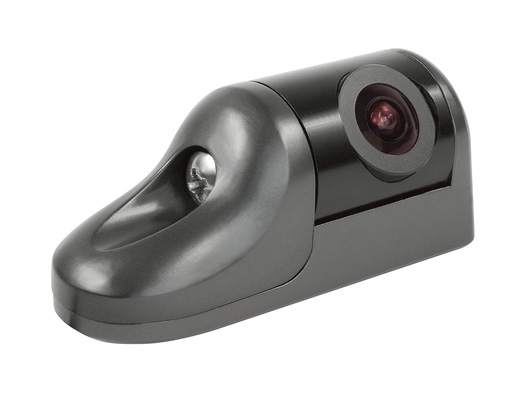

UNIVERSALT KAMERA JUSTERBART

Due to its compact size the ZE-RVC80MT rear view camera is suitable to be installed at the upper edge of the license plate or below the rear bumper, depending on car model or customer preferences. The connection cable of the camera can often be routed alongside the license plate illumination wires – allowing for a quick and trouble free installation process. The high quality CMOS camera sensor also offers an extended temperature operating range, a waterproof lens assembly (IP68) and housing, made of durable die cast aluminium.

Image device 0.25" CMOS Sensor
TV system NTSC
Viewing angle 140° horizontal
Sensor resolution 720 x 480 pixels
Resolution of video-out 480 TV lines
Minimum illumination 0.3 lux
Video output 1 Vp-p, 75 ohms
White balance Auto
Power supply DC 12 Volt typ.
Current consumption 60 mA max.
IP protection rating IP68 water and dust protected
Operating temperature 30°C to +75°C
