UNIVERSALT KAMERA I ALUMINIUM

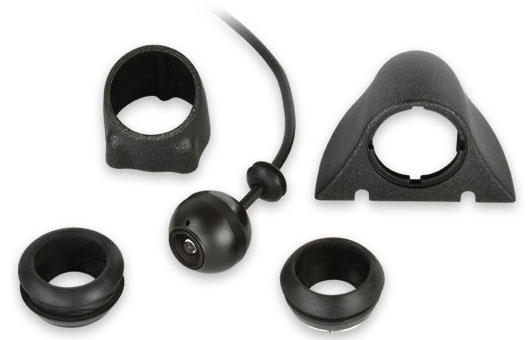

With the ZE-RVC90MT, ZENEC has an extremely compact backup camera in its product range. Its universal installation options and the outstanding image quality are convincing. Designed as a ball-type, the ZE-RVC90MT is shipped with special installation adapters and can therefore easily be fitted on almost any vehicle.

Image device 0.25“/6.4 mm Micron Aptina CCD sensor
Lens focal length F 1.9
TV system NTSC / 60 fps
Viewing angle 115° horizontal / 80° vertical
Sensor resolution 680 x 512 pixels
Resolution of video-out 420 TV lines
Signal to noise ratio > 48 dB
Minimum illumination 0.5 lux
Video output 1 Vp–p, 75 ohms, composite
White balance auto
Gain control Auto
Sync system Auto
Power supply DC 5 ~ 24 V
Current consumption 60 mA (DC12 V) / ≤ 2.5 W
IP protection rating IP68
Max. Operating temperature -20° to +60° C
Dimensions 18 mm Ø
Weight 20 g
