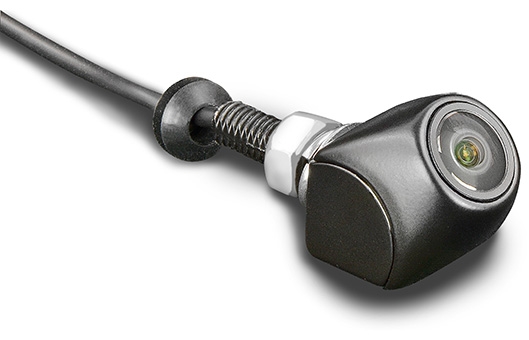

UNIVERSALT COMPAKT 45° UNDERHÆNGT KAMERA

The ZENEC ZE-RVC45DT rear view camera model was developed for universal use, allowing retrofitting of a great variety of vehicles due to its extremely compact housing shape. The picture can be outputted as normal or mirror image, for mounting and utilization of this model as front- and as rear view camera. Besides, the ZE-RVC45DT offers a large horizontal viewing angle of 140° for good overview.
This product is compatible with a wide variety of 2-DIN A/V receivers of the aftermarket.

Image device 0.25" / 6.4 mm Aptina ASX340AT CMOS sensor
Lens focal length f1.5
TV system NTSC / 60 fps
Viewing angle 180° diagonal, 140° horizontal, 90° vertical
Native sensor resolution 680 x 512 pixels
Resolution of video-out 420 TV lines
Frame rate 60 fields/sec.
Signal to Noise ratio > 48 dB
Light sensitivity 0.5 lux/F1.2/50IRE
Video output 1.0 Vp–p, 75 ohms, CVBS
White balance auto
Backlight compensation auto
Gamma correction 0.45
Gain control auto
Sync system auto
Power supply 12 DCV (9 V - 16 V)
Current consumption 60 mA (DC12V) / ≤ 720 mW
IP protection rating IP69K
Max. operating temperature -30° to +75° C
