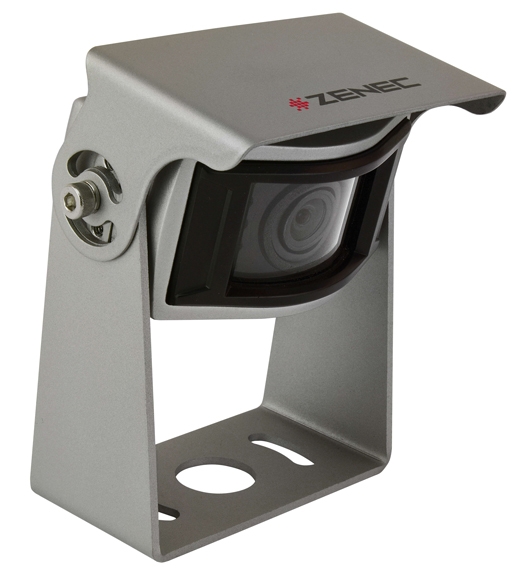

UNIVERSALT CAMPER/KASSE BAK-KAMERA

The compact, high resolution rear view camera is equipped with a high quality CCD camera sensor. With a horizontal viewing angle of 170°/125° vertical, this camera offers a very good view when maneuvering. Night vision IR LEDs ensure excellent vision, even in the dark. The changeover between day and night mode is automatic and controlled via a LDR. The video signal allows for normal and mirrored image video processing on the device, so that a camera can be used for both rear-view and side/front camera duty. Mounting brackets for 38 mm or 60 mm mounting clearance included in the set.

Image device ⅓" / 8.5 mm Sony CCD sensor
Lens focal length f2.3
TV system NTSC / 60 Hz
View angles 150°(D) x 105°(H) x 80°(V)
Native sensor resolution 811 (H) x 507 (V) pixels
Resolution of video-out > 600 TV lines
Signal to noise ratio > 60 dB
Light sensitivity 0.1 Lux (IR On)
Video output 1,0 Vp-p, 75 ohms
White balance Auto
Gain control Auto
Sync system Auto
Power supply DC 12V ±1V
Current consumption 130mA (DC12V) / ≤ 1.5W
IP protection rating IP69K
Operating temperature -20°C~+70°C, RH 95% max.
Dimensions w/short bracket (HxWxD) 74 x 85 x 65 mm
Dimensions w/long bracket (HxWxD) 101 x 85 x 65 mm
Weight 333 g
