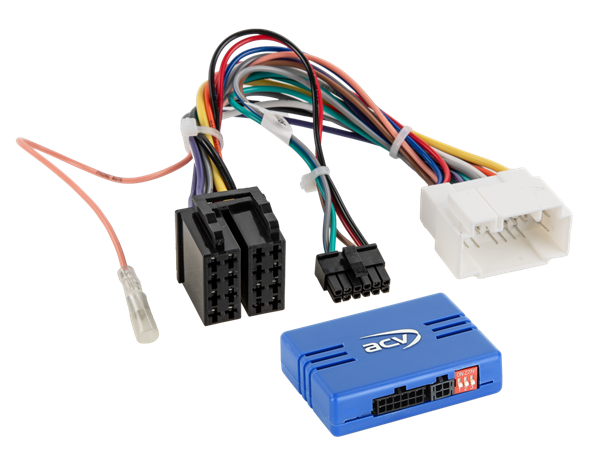

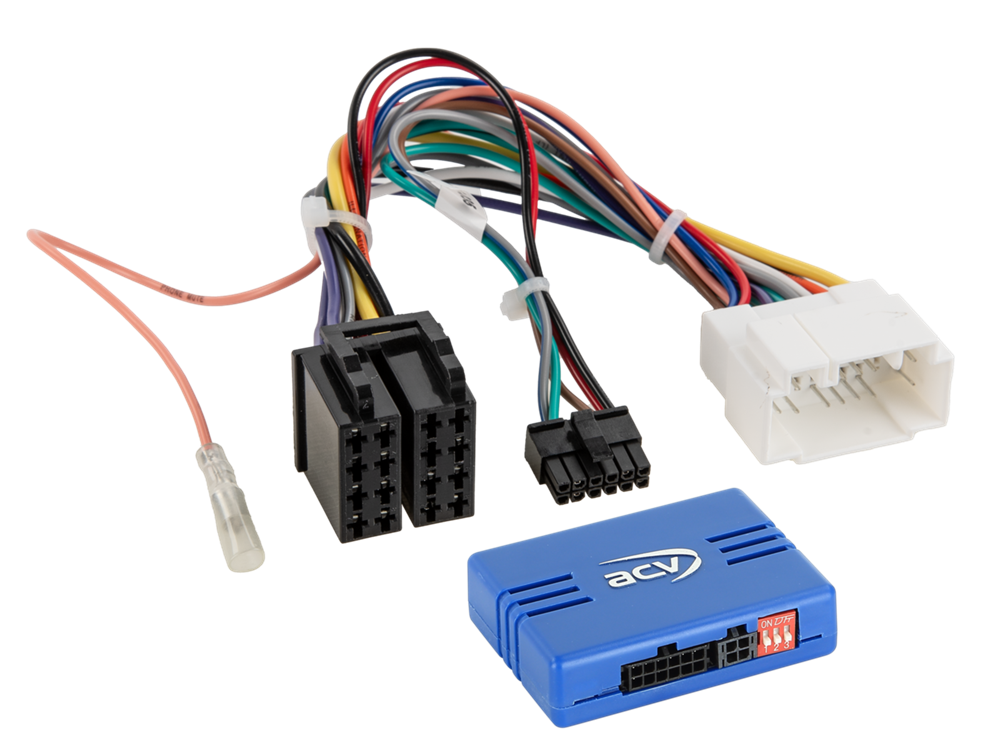

RAT INTERFACE TIL FIAT/OPEL/SUZUKI MED 20 PIN SUZUKI STIK

Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening.
Det gør det muligt at styre primær funktioner på radioen.

Passer til følgende modeller:
analog

connector: 20 Pin Suzuki

vehicles with Siemens / VDO PACR 01/PACR 02/PACR 06/SUKNR301 OEM HU
vehicles with Panasonic OEM Sat Nav

vehicles without Siemens / VDO PACR 05/PACR 07/PACR 08 OEM HU

dip switch settings for the retrofit device manufacturer

diagnostic LED:
blue constant > Interface active +12V ignition power supply present
red > steering wheel remote control button function recognised

Vehicle application:

Fiat
Fiat Sedici (FY) 06/2006 - 08/2009
Fiat Sedici (FY) 08/2009 - 10/2014

Opel
Opel Agila B (H-B) 04/2008 - 12/2014

Suzuki
Suzuki Dzire 2008 - 2010
Suzuki Grand Vitara (JT) 10/2005 - 09/2008
Suzuki Grand Vitara (JT) 09/2008 - 12/2012
Suzuki Kizashi (FR) 10/2010 - 08/2015
Suzuki Ritz 2009 - 2011
Suzuki Splash (EX) 04/2008 - 05/2012
Suzuki Swift (MZ/EZ) 05/2005 - 08/2010
Suzuki Swift (MZ/EZ) 01/2008 - 09/2010
Suzuki SX4 (EY/GY) 06/2006 - 01/2010
Suzuki SX4 (EY/GY) 09/2009 - 12/2014

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

pink: speed pulse signal if assigned

SWC
Der skal bruges et af nedennævnte kabler
