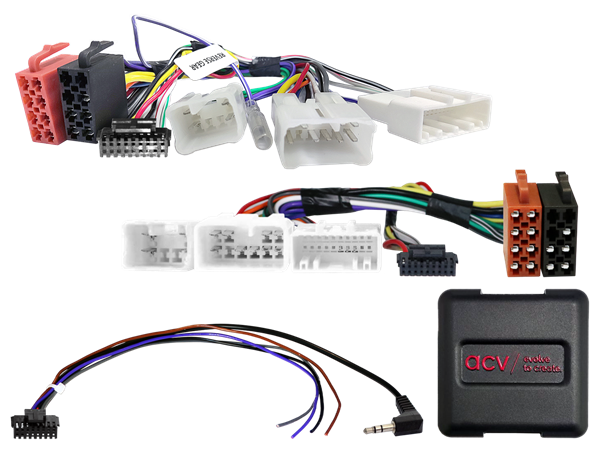

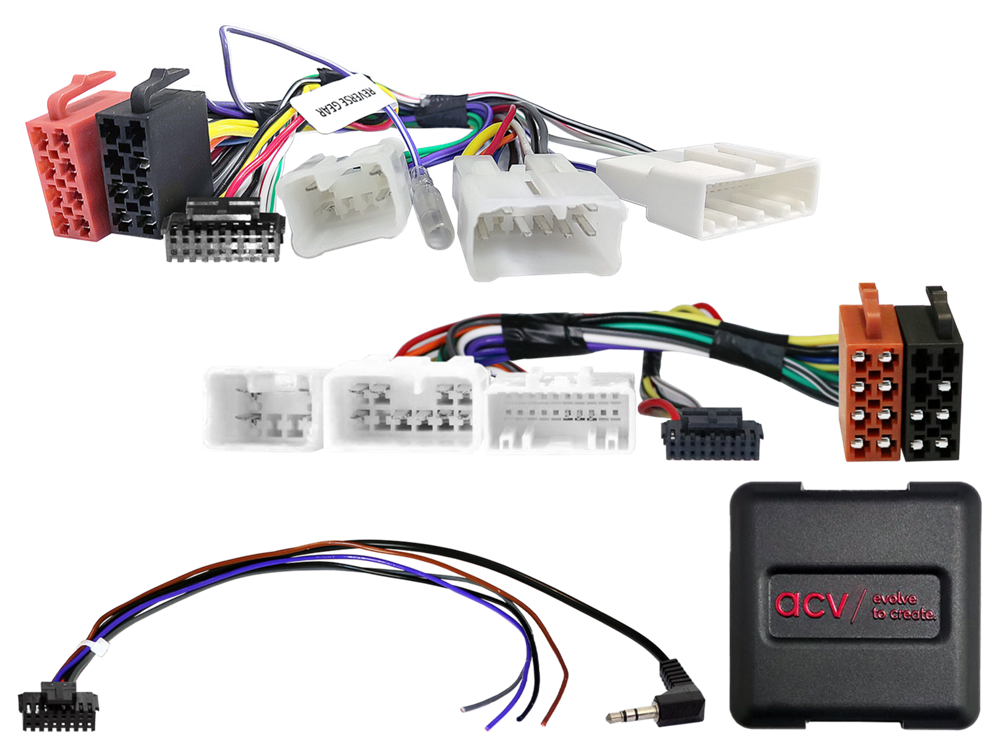

RAT INTERFACE TIL TOYOTA/LEXUS 1998 > (ALL INCL)

Varenr.: 42xty00c
  • PRIS ER PR. Stk
    Pris ved køb af 1 Stk,489,95  DKK
På lager hos os

Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening.
Det gør det muligt at styre primær funktioner på radioen.
Ratinterface til Toyota som dækker både de specifikke løsninger 42xTY001 & 42xTY002, da 42xTY00C leveres med begge typer ledningsnet. Passer til følgende modeller:
Note:

analog

connector: 10 Pin / 6 Pin / 20 Pin Toyota
connector: 10 Pin / 6 Pin / 28 Pin Toyota
connector: OEM SWC > 3,5mm Jack / loose wire

vehicles on year of construction limit > item: 42xty00c with 20 Pin and 28 Pin wiring harness

vehicles with Matsushita / Fujitsu Ten OEM HU
vehicles with OEM rear view camera*

vehicles without 360° OEM camera system**

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:
Lexus
Lexus IS (XE1) 10/2001 - 11/2005
Lexus IS (XE2) 12/2005 - 11/2008
Lexus IS Cabriolet (XE2) 07/2009 - 11/2010
Lexus IS (XE2) 11/2008 - 11/2010
Lexus IS Cabriolet (XE2) 11/2010 - 10/2013

TOYOTA
Toyota Auris (E150) 03/2010 - 01/2013
Toyota Avensis (T27) 01/2012 - 06/2015
Toyota Corolla (E170) 04/2014 - 12/2016
Toyota Fortuner 2011 - 2015
Toyota Hilux (N25) 12/2011 - 08/2016
Toyota Hilux (AN1P) 11/2016 - 09/2020
Toyota Innova 2011 - 2015
Toyota Prius ZVW30/ZVW35 (XW3) 04/2012 - 02/2016
Toyota Prius+ (XW3/XW4) 06/2012 - 01/2015
Toyota RAV4 (XA3) 04/2009 - 05/2010
Toyota RAV4 (XA3) 05/2010 - 02/2013
Toyota RAV4 (XA3/XA4) 04/2013 - 01/2016
Toyota RAV4 (XA3/XA4) 01/2016 - 12/2018**
Toyota Verso (AR2) 04/2009 - 01/2013
Toyota Verso (AR2) 04/2013 - 06/2018
Toyota Verso-S (XP12) 03/2011 - 07/2014
Toyota Verso-S (XP12) 07/2014 - 12/2015
Toyota Yaris (XP13) 11/2011 - 08/2014
Toyota Yaris (XP13) 09/2014 - 03/2017
Toyota Yaris (XP13) 04/2017 - 08/2020

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

SWC

*vehicles with rear view camera SWC Toyota different vehicles 28Pin USB/antenne/camera > item: 42xty015
**vehicles with 360° OEM camera system SWC Toyota different vehicles 10Pin/6Pin/28Pin/24Pin > item 42sty019

General installation instructions:

Verification:
1: Check all operating functions and vehicle setting functions of the OEM HU.
2: Disconnect the OEM HU voltage-free.
3: Check all interface connections for correctness voltage-free.

Connection and connection sequence:
1: Check settings and hardware configuration of the interface voltage-free.
2: Check configuration of the HU connection cable voltage-free.
3: Connect the HU connection cable according to the operating instructions of the retrofit HU.
4: Connect all other connections according to the operating instructions of the retrofit HU.
5: Connect the entire installation to the vehicle with the main connection last.
6: Software configuration of the interface according to the instructions in the item text and in the manual.
7: Configure the retrofit HU according to the operating instructions of the retrofit device steering wheel remote control/camera/handsfree kit/antenna phantom powering and others.
8: Function test of steering wheel remote control and vehicle

Changes to the configuration of the interface and the HU connection cable:
1: Change configuration voltage-free
2: Reconnection see above 5 to 8

In case of malfunction of the interface or the vehicle:
1: Reinstall the OEM HU
2: Operate the OEM HU
3: Establish CAN bus shut down
4: Check the hardware configuration of the interface
5: Reconnection after CAN Bus shut down see above 5 and 6

More connections, connection changes, alternative connections, connections of loose cables or connection extensions of loose cables specified in the information text or the manual are for orientation purposes only and for the information of trained specialist installer.

More connections, changes to the cable configuration of the wiring harness or use of alternative connections or connection extensions:
1: Connections and changes are to be carried out exclusively by trained specialist installer.
2: Connections and modifications must be checked before connection for any manufacturer approvals or manufacturer warranty conditions that may be affected by the modifications.
3: Connections and modifications must be checked for function and correctness by measuring and comparing them with the vehicle's cable assignment diagram before connection.
4: Connections and modifications are made on the user's own responsibility without guarantee of function.
5: Connections and modifications are made on the user's own responsibility without any guarantee of damage to the vehicle, the retrofit device or the interface.
6: Modifications to the pre-assembled wiring harness may invalidate the product's warranty.
