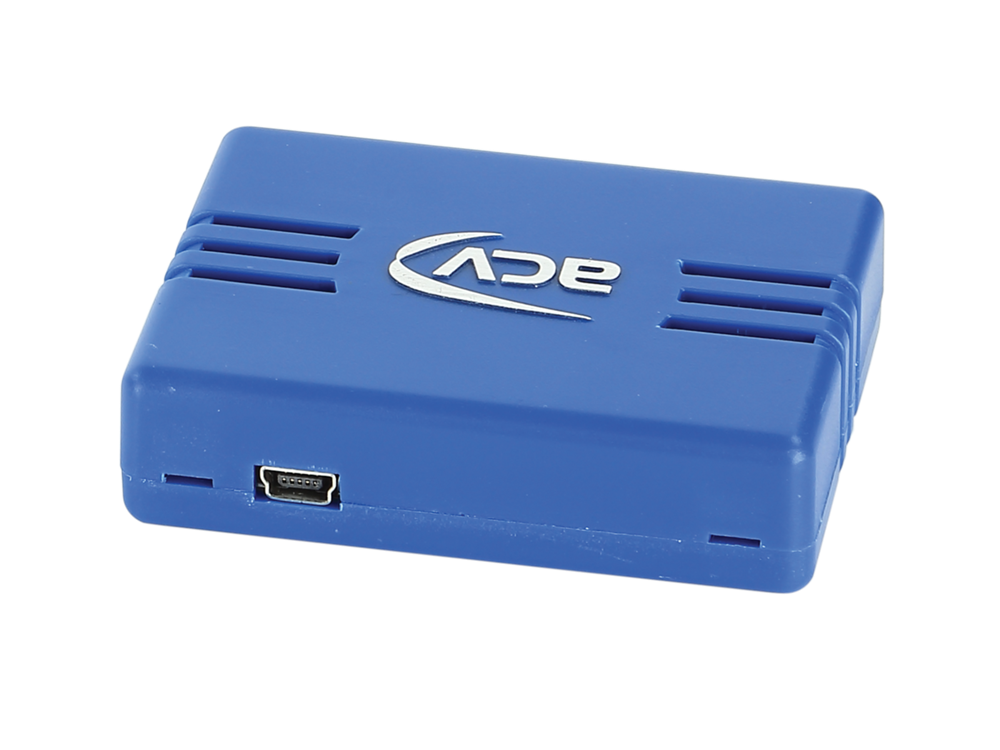

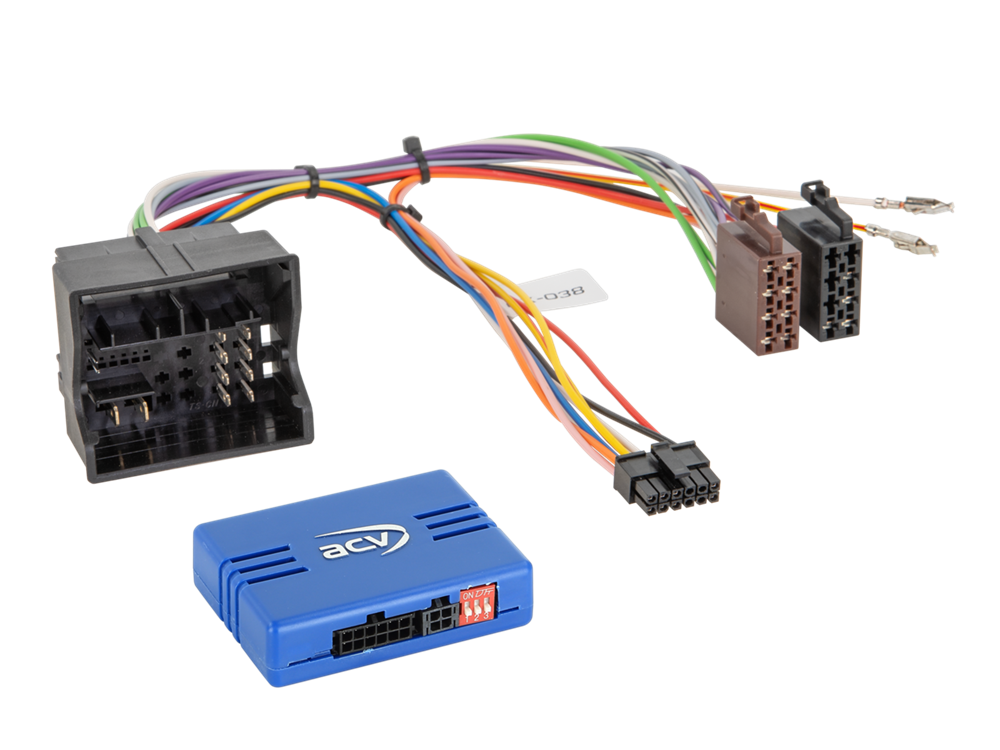

RAT INTERFACE TIL AUDI/MAN/SEAT/SKODA/VW 52 PIN MIB PQ

Husk tilkøb radiokabel som findes under produktet.

Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening.
Det gør det muligt at styre primær funktioner på radioen.

Passer til følgende modeller:
Note:

CAN Bus

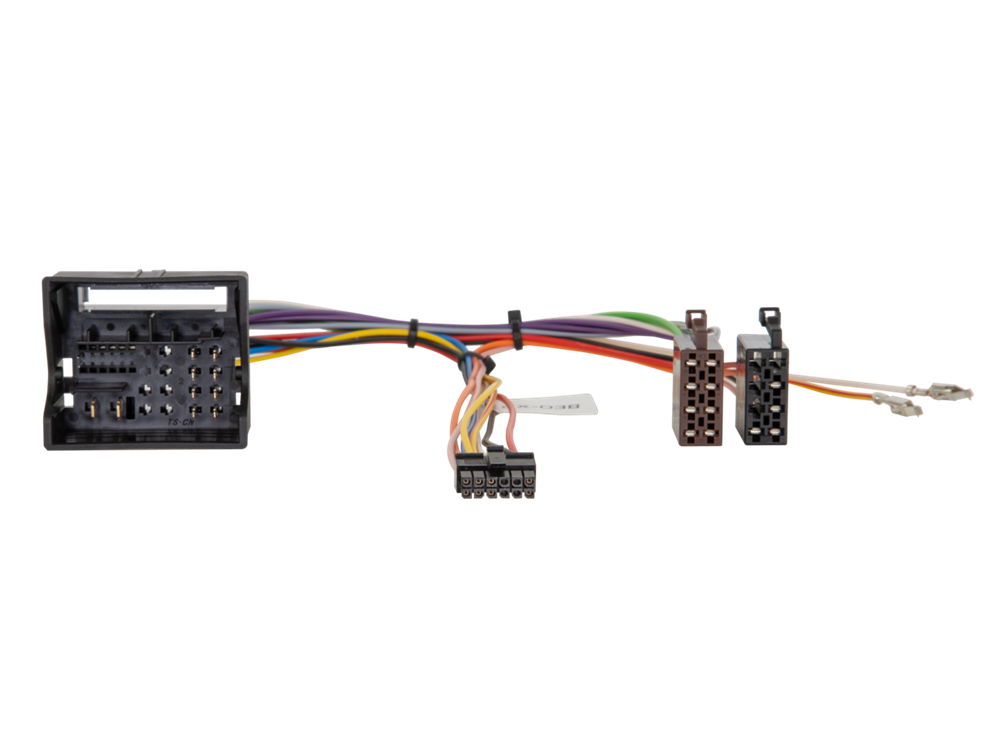

connector: 52 Pin VAG > item: 42cx38

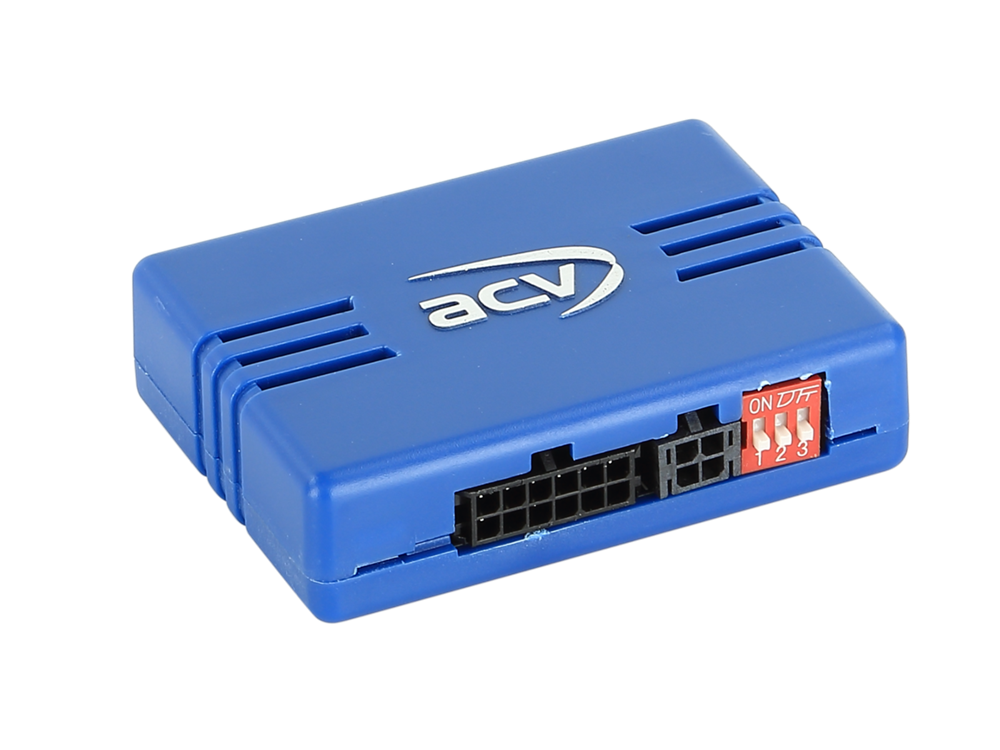

check dip switches for retrofit HU

vehicles MAN / Seat / Skoda / VW with MIB-PQ system

vehicle settings not supported
E-Call not supported

vehicles MAN / Seat / Skoda / VW with E-Call:
E-Call function retention MAN/Seat/Skoda/VW 52 Pin Quadlock > item: 1424-28

vehicles MAN / Seat / Skoda / VW with rear view camera:
Rear view camera adapter OEM VW different vehicles MIB-PQ > item: 771324-1037

diagnostic LED:
blue flashing > CAN Bus search
blue constant > CAN Bus active
red > +12V ignition current active

Vehicle application:

Für folgende Fahrzeuge geeignet:

Audi
Audi A1 (8X) 07/2010 - 11/2014*
Audi A1 (8X) 11/2014 - 04/2018*
Audi A3 (8V) 02/2013 - 05/2016
Audi A3 (8V) 07/2016 - 03/2020
Audi Q3 (8U) 10/2011 - 11/2014
Audi Q3 (8U) 02/2015 - 08/2018

MAN
MAN TGE 04/2017 - 2023

Seat
Seat Alhambra (7N) 06/2015 - 01/2022
Seat Arona (KJ) 11/2017 - 06/2021
Seat Ateca (5FP) 08/2016 - 08/2020
Seat Ateca (5FP) 08/2020 - 2023
Seat Ibiza (6P) 07/2015 - 04/2017
Seat Ibiza (KJ) 07/2017 - 03/2021
Seat Mii (AA) 05/2015 - 04/2018
Seat Mii (AA) 01/2020 - 02/2021
Seat Leon (5F) 11/2012 - 12/2016
Seat Leon (5F) 11/2016 - 01/2020
Seat Toledo (NH) 03/2013 - 08/2018

Skoda
Skoda Citigo (AA) 05/2017 - 06/2019
Skoda Fabia III (5J) 11/2014 - 08/2018
Skoda Fabia III (5J) 08/2018 -05/2021
Skoda Karoq (NU) 11/2017 - 11/2021
Skoda Kodiaq (NS) 03/2017 - 06/2021
Skoda Octavia III (5E) 02/2013 - 12/2016
Skoda Octavia III (5E) 01/2017 - 01/2020
Skoda Rapid (NH) 04/2015 - 05/2017
Skoda Rapid (NH) 05/2017 - 02/2019
Skoda Superb (3V) 06/2015 - 06/2019
Skoda Yeti (5L) 10/2013 - 07/2017

VW
VW Amarok (2H) 09/2016 - 07/2020
VW Arteon (3H) 11/2017 - 06/2020
VW Beetle (16) 06/2016 - 03/2018
VW Caddy IV (DU) 06/2015 - 09/2020
VW Crafter II (SY/SZ) 03/2017 - 2023**
VW Golf VII (AU) 11/2012 - 12/2016
VW Golf VII (AU) 03/2017 - 05/2020
VW Grand California (SY/SZ) 03/2019 - 2023
VW Passat B8 10/2014 - 05/2019
VW Polo V (6R) 04/2014 - 07/2017
VW Polo VI (AW) 11/2017 - 05/2021
VW Scirocco (13) 08/2014 - 10/2017
VW Sharan II (7N) 07/2015 - 10/2021
VW T6 (7HC) 07/2015 - 08/2019
VW T6.1 (7HC) 11/2019 - 2023
VW T-Roc (A1) 11/2017 - 10/2021
VW Taigo (CS) 10/2021 - 2023
VW Tiguan II (5N) 05/2016 - 05/2021
VW Touran (5T) 09/2015 - 2023
VW UP! (AA) 07/2016 - 12/2020

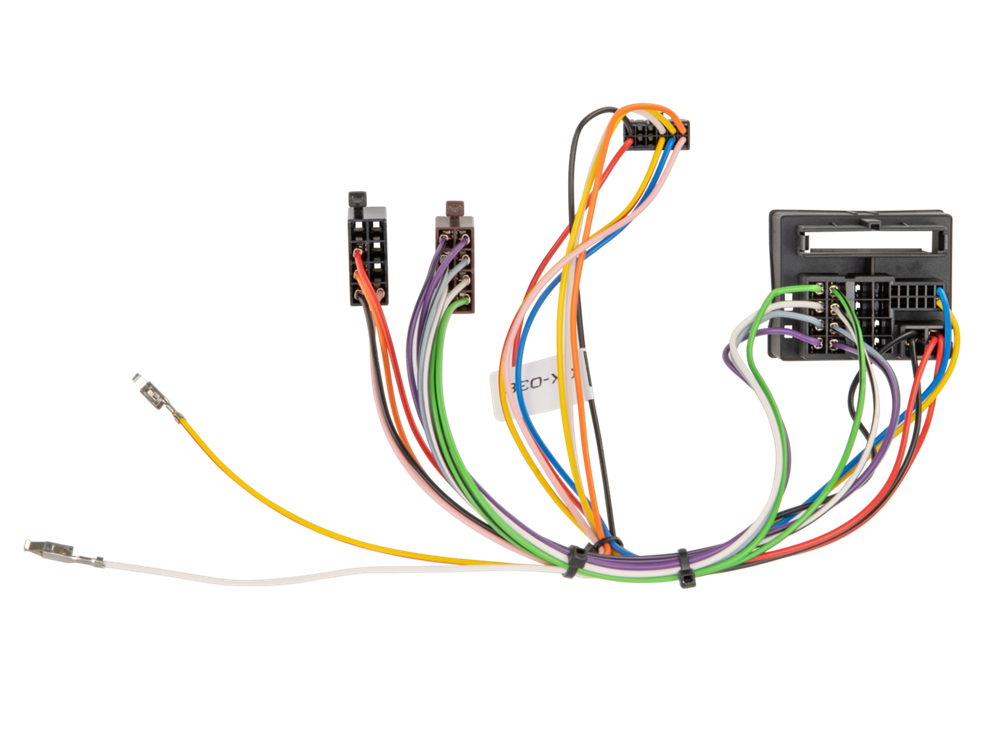

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

pink: +12V ignition clamp 15 1,5A max.
orange: +12V illumination clamp 58 0,1A max.
white: +12V reverse gear signal 1,5A max.
yellow/green yellow/red: speed pulse signal

SWC

*vehicles with Concert OEM HU with dash mount colour monitor
*vehicles with Chorus OEM HU with monochrome display > item: 42cx25
**reveres gear signal only by running engine

Der skal bruges et af nedennævnte kabler
