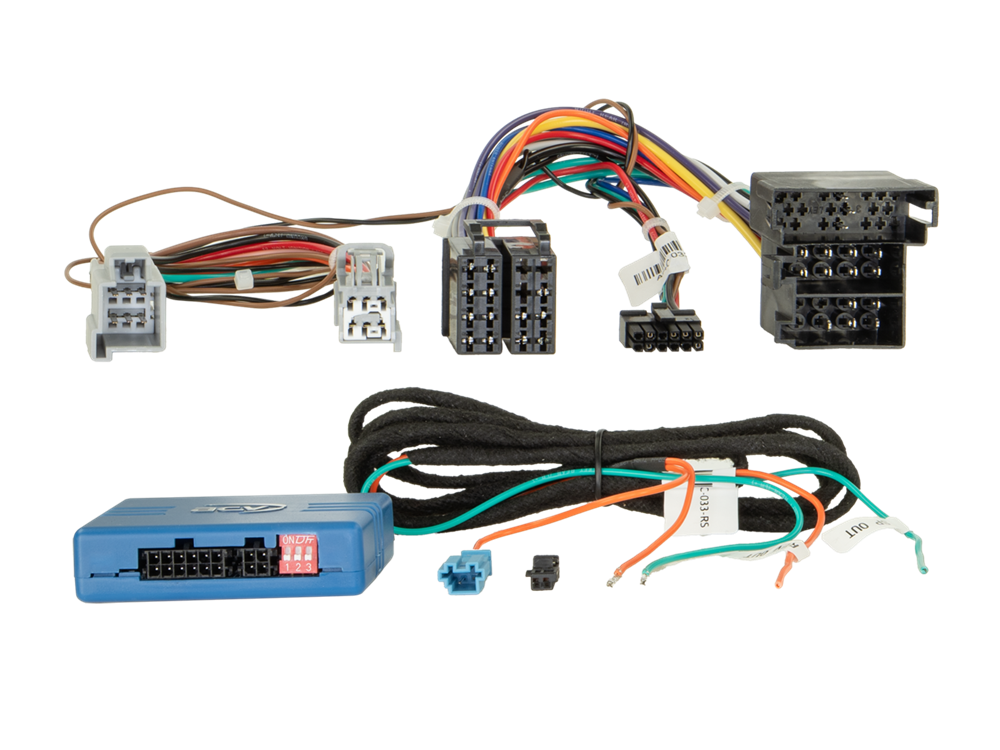

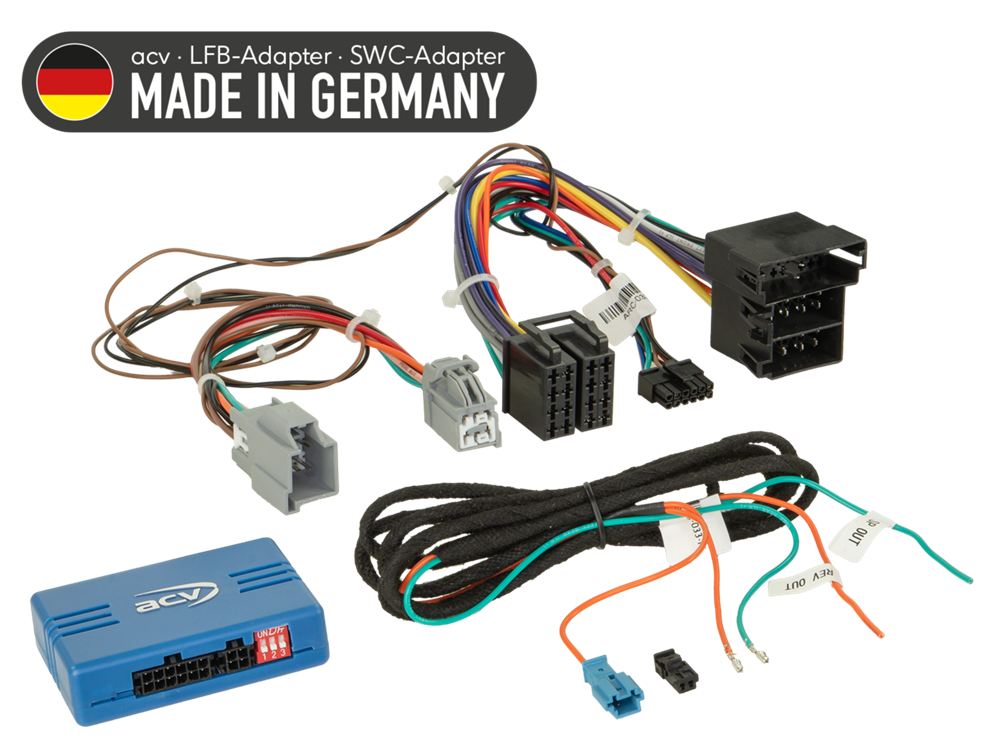

RAT INTERFACE TIL FIAT DUCATO 8 2021> MED TLF-SUPPORT

Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening.
Det gør det muligt at styre primær funktioner på radioen.

Passer til følgende modeller:
analog

connector: ISO / Mini ISO
connector: 6 Pin Fiat T-Harness > telephone
connector: Harness fuse box > speedpuls / reverse gear signal (look into the manual)

vehicles with open dash

vehicles with inductive charging device > telephone function supported

SWC buttons > backside steering wheel

telephone function supported

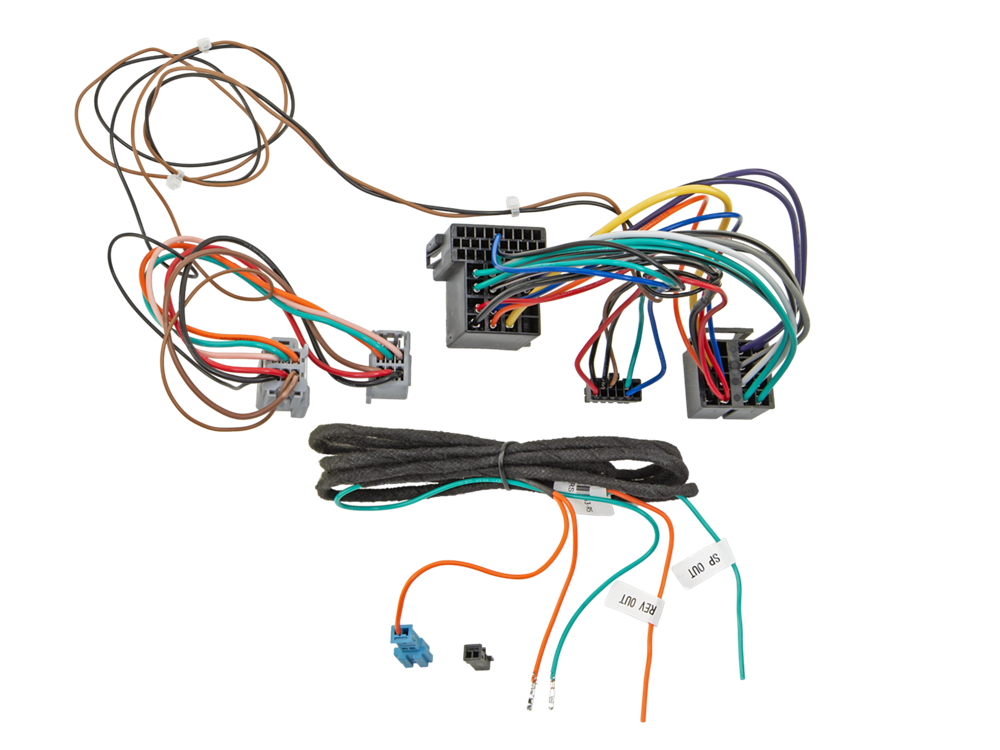

connection harness fuse box:
green: speed pulse signal black 60 Pin connector > Pin 22
orange: reverse gear signal +12V green 60 Pin connector > Pin 17

Vehicle application:

Fiat Ducato (ZAF 250) 11/2021 - 2024

The following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.
Der skal bruges et af nedennævnte kabler
