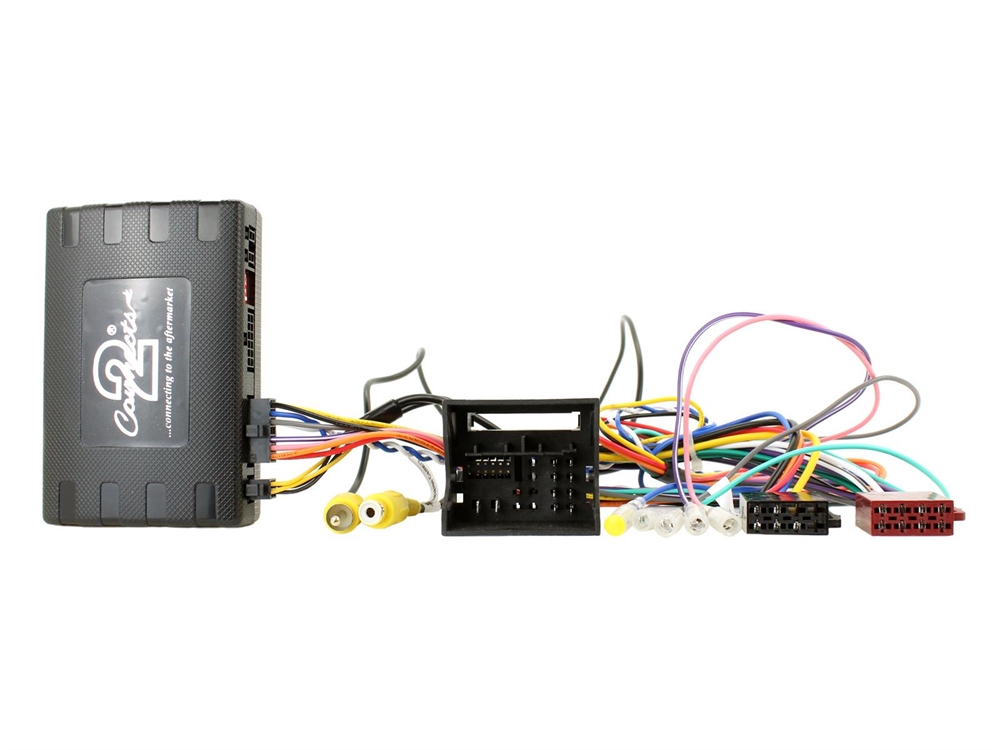

RAT INTERFACE (INFOADAPTER) VW MED 52 PIN MIB/PQ

Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening.
Det gør det muligt at styre primær funktioner på radioen. Optisk parkerings sensor og clima visualitation på eftermarkeds av headunits

Passer til følgende modeller.
Note:

vehicles with SWC

connector: 52 Pin Quadlock VAG

call up menu settings > purple/white reverse signal output connect to the HU
visualise menu settings > RCA(m) yellow connect to the rear view camera input and configure
vehicle settings and vehicle information > mirrored on the retrofit monitor rear view camera input

depending on the vehicle equipment and software:
not all vehicle settings are supported
not all vehicle functions are supported
not all vehicle information is visualised

vehicles with MIB-PQ OEM system

vehicles without amplified system*

E-Call not supported

vehicles with E-Call:
E-Call function retention MAN/Seat/Skoda/VW 52 Pin Quadlock > item: 1424-02

Not for vehicles:
with OEM Most amplified system
with open dash
without any OEM preparation > SWC / speakers / HU

vehicles with parking assistance front PDC > front PDC is shown after ignition in display
exit the display > acknowledge via vehicle PDC button

Vehicle application:

Skoda
Skoda Yeti (5L) 10/2013 - 07/2017*

VW
VW Beetle (16) 06/2016 - 03/2018*
VW Caddy IV (DU) 06/2015 - 09/2020
VW Jetta (16) 2015 - 2018
VW Sharan II (7N) 07/2015 - 10/2021
VW T6 (7HC) 07/2015 - 08/2019
VW Tiguan II (5N) 05/2016 - 05/2021

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse signal
pink: speed pulse signal
green: GND park brake signal

load capacity total outputs: 100 mA max.

current requirement more than 100 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.

SWC

visualisation climate control
visualisation OPS supported
CAR vehicle settings supported

*Skoda Yeti Active Sound OEM amplified system supported
*VW Betle Composition Media OEM HU Dynaudio OEM amplified system supported
*VW Beetle Fender OEM amplified system not supported

Optional:

Rear view camera adapter OEM VW different vehicles MIB-PQ: 771324-1037

Ratbetjeningsinterface, standard lydsystem og Fakra stik. Til can-bus


Der skal bruges et af nedennævnte kabler og passer til rammerne herunder
