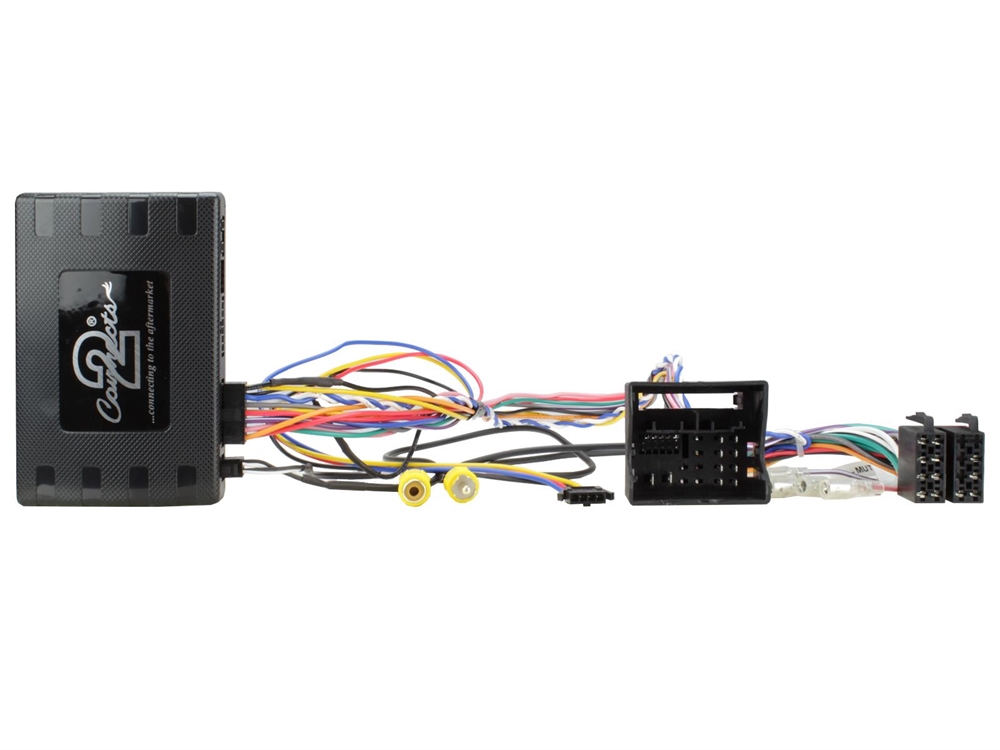

RAT INTERFACE (INFOADAPTER) MAN/SEAT/SKODA/VW MED 52 PIN MIB II

Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening.
Det gør det muligt at styre primær funktioner på radioen. Optisk parkerings sensor og clima visualitation på eftermarkeds av headunits

Passer til følgende modeller. CTUVW04, CTUST02 og CTUSK03 er identiske
Note:

vehicles with SWC

connector: 52 Pin Quadlock VAG

to enter settings connect the reverse signal output (purple/white) to HU
visualisation of the settings connect and configure the rear view camera input of the HU

for vehicles with MIB II systems and composition media 8" touch screens
operate the CAR vehicle setting menue with the SWC keys /no swich panel necessary

E-Call not supported
E-Call interface for different vehicles E-Call function retention MAN/Seat/Skoda/VW 42 Pin Quadlock: 1424-28

Not for vehicles:
with OEM Most amplified system
with open dash
without any OEM preparation (SWC, Speakers, Head Unit)

vehicles with parking assistance front PDC is shown after ignition in display

Vehicle application:

MAN TGE 2017 - 2021*/******

Seat Ibiza (6P/6F) 2015 - 2021*/**/***
Seat Arona 2015 - 2021*/**
Seat Leon (5F) 2012 - 2020*/***/****

Skoda Fabia 2014 - 2018
Skoda Rapid 2016 - 2019

VW Crafter 2017 - 2021*/****
VW Golf 2013 - 2020*/*******
VW Golf Sportsvan 2013 - 2020*/*******
VW Grand California 2017 - 2021*/****
VW Polo 2014 - 2021*/*******
VW T6.1 2019 - 2021*
VW Touran (5T) 2016 - 2021*/****
Volkswagen - Taigo (2021 >)
Volkswagen - T-Cross (2019 >)
Volkswagen - T-Roc (2017 >)

Following signals are provided:

Ignition
Illumination
Reverse
Speedpulse
Parkingbreak

SWC
visualisation climate control
visualisation OPS
vehicle settings

*MIB II OEM Plattform
**5"OEM Touchscreen coulour monitor
***6,5" OEM Touchscreen coulour monitor
****8" OEM Media Plus / Composition Media
*****8"OEM Composition Media
****** 8" OEM Media Advanced
*******OEM Composition Media

Optional:

Rear View Camera Adapter VW MIB II PQ MQS: 771324-1037(CAM-VW3-RT)

Ratbetjeningsinterface, standard lydsystem og Fakra stik. Til can-bus


Der skal bruges et af nedennævnte kabler og passer til rammerne herunder
