Varenr.: ZE-RCE2001EL
På lager hos vores leverandør Download manual

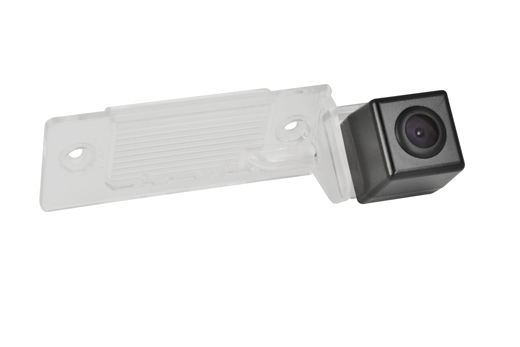

Camera unit: 6.4 mm/1/4" CMOS sensor
Sensor resolution: 644 x 484 pixels
Grid lines in the camera picture
Integrated illumination according to OE specifications
Separable 3-part system cable of 5.0 m length with waterproof
connectors for simplified cable routing
TV system: NTSC
Viewing angle: horizontal 170°
Viewing angle: vertical 90°
Resolution of video out: 500 TV lines
Minimum illumination: 0.5 lux
White balance: auto
IP protection rating: IP69K
Video output: 1.0 Vp-p, 75 ohms
Power supply: DC 12 V
Operating temperature: -20° C – +70°C
Current consumption: 40 mA - 90 mA (DC12V) / < 1080 mW
Relative humidity: 95 % max.
Golf V Variant 1K 2007 – 2009
Passat Lim. 3B 2001 – 2005
Touareg 7L 2002 – 2010
Tiguan 5N as of 2008
Important: Only for vehicles with license plate light part number: 1J5.943.021.D
