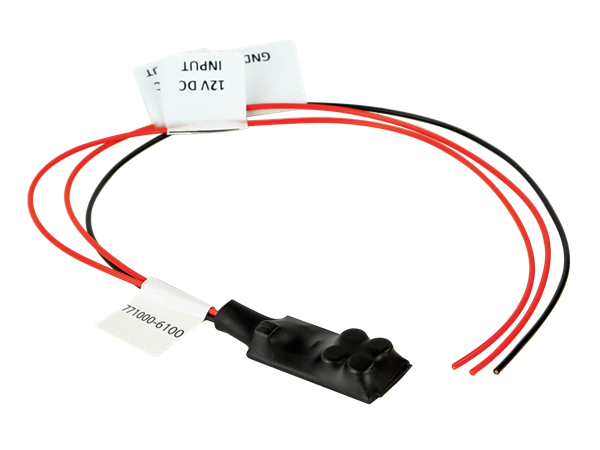

KAMERA STABILATOR TIL EFTERMONTERET KAMERA

Bruges til systemer der her monteret kamera 12V fra baklys pæren så man har ustabilt kamera billede.
Rear view camera voltage stabilizer

This stabiliser enables the reversing signal to be picked up at the reversing light in vehicles with bulb monitoring and CAN Bus vehicles with clocked reversing signal.

No error message in the CAN Bus system

Use case:

reverse switch signal for retrofit units
power supply for rear view cameras

Connection:

input: red +12V > reversing signal reversing light
input: black GND > car body direct
output: +12V / 1A max> +12V camera
