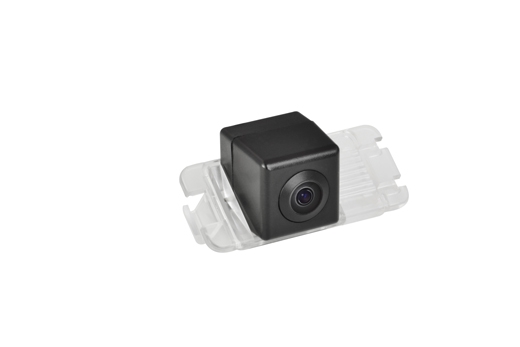

KAMERA MERCEDES A-KLASSE W176 2012 >

Camera unit: 6.4 mm/1/4" CMOS sensor
Sensor resolution: 644 x 484 pixels
Grid lines in the camera picture
Integrated illumination according to OE specifications
Separable 3-part system cable of 5.0 m length with waterproof
connectors for simplified cable routing
TV system: NTSC
Viewing angle: horizontal 170°
Viewing angle: vertical 90°
Resolution of video out: 500 TV lines
Minimum illumination: 0.5 lux
White balance: auto
IP protection rating: IP69K
Video output: 1.0 Vp-p, 75 ohms
Power supply: DC 12 V
Operating temperature: -20° C – +70°C
Current consumption: 40 mA - 90 mA (DC12V) / < 1080 mW
Relative humidity: 95 % max.
Mercedes A-class W176 2012
