Varenr.: 771000-6251
På lager hos vores leverandør

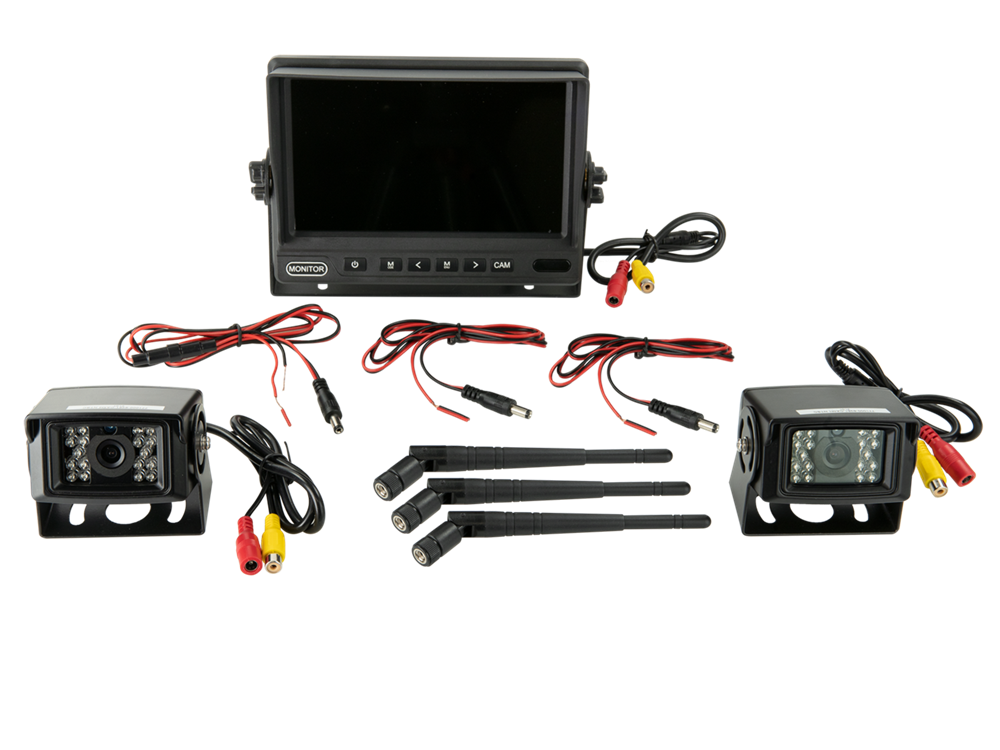

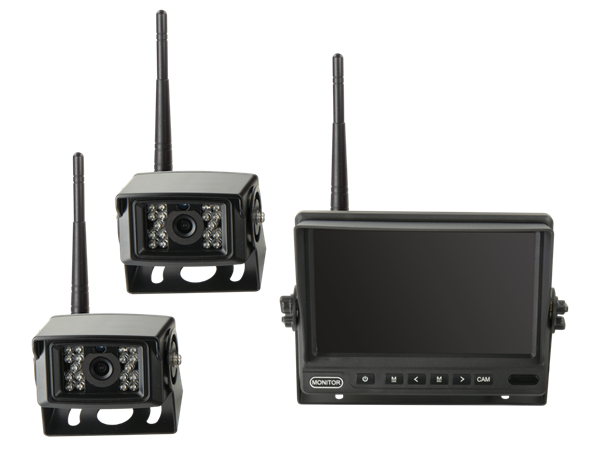

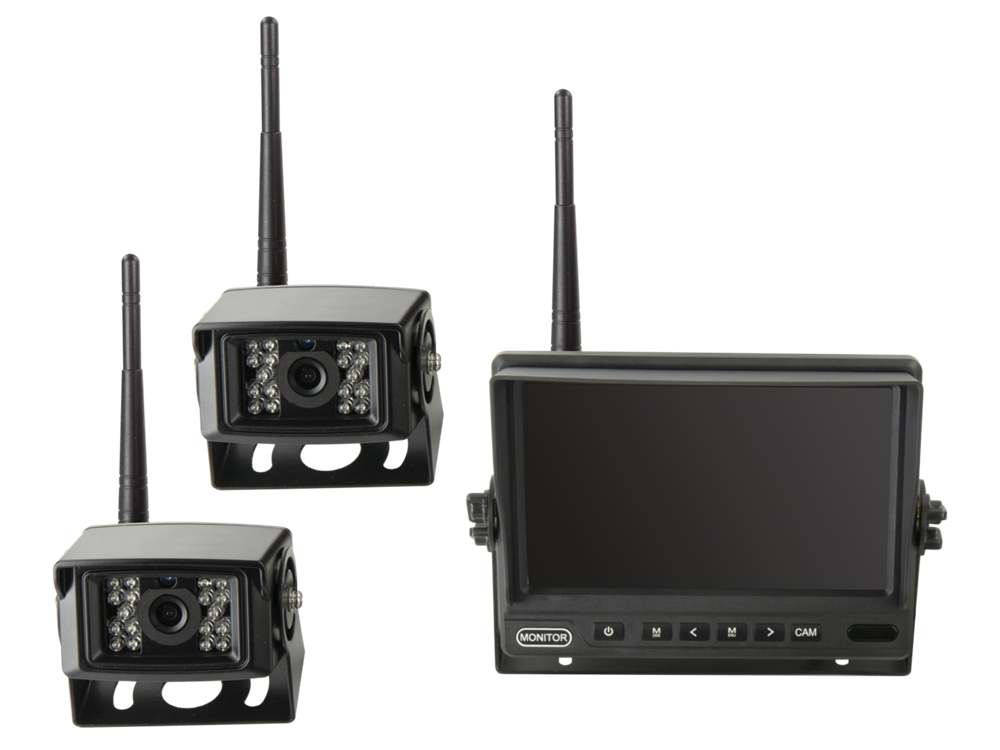

Rear view camera monitor kit
Design: Transporter / Motor Home
Installation: build-up-construction / roof system
2 x camera analog HD 1080 Pixel / nightview / video transmitter digital
Monitor 7" Video Transmitter digital / glare protection / guiding lines / mirror function
Note:
acv cameras are suitable for continuous operation
before installation > check the viewing angle and camera alignment at the installation site with a test monitor
monitor operating voltage: +12V / +24V
camera power supply: +12V / +24V
camera operating voltage: +12V / +24V
camera power supply: +12V / +24V
connection camera:
red +12V / +24V switched load-stable fused
black ground car body direct
connection monitor:
red: +12V / +24V switched load-stable fused
black: ground car body direct

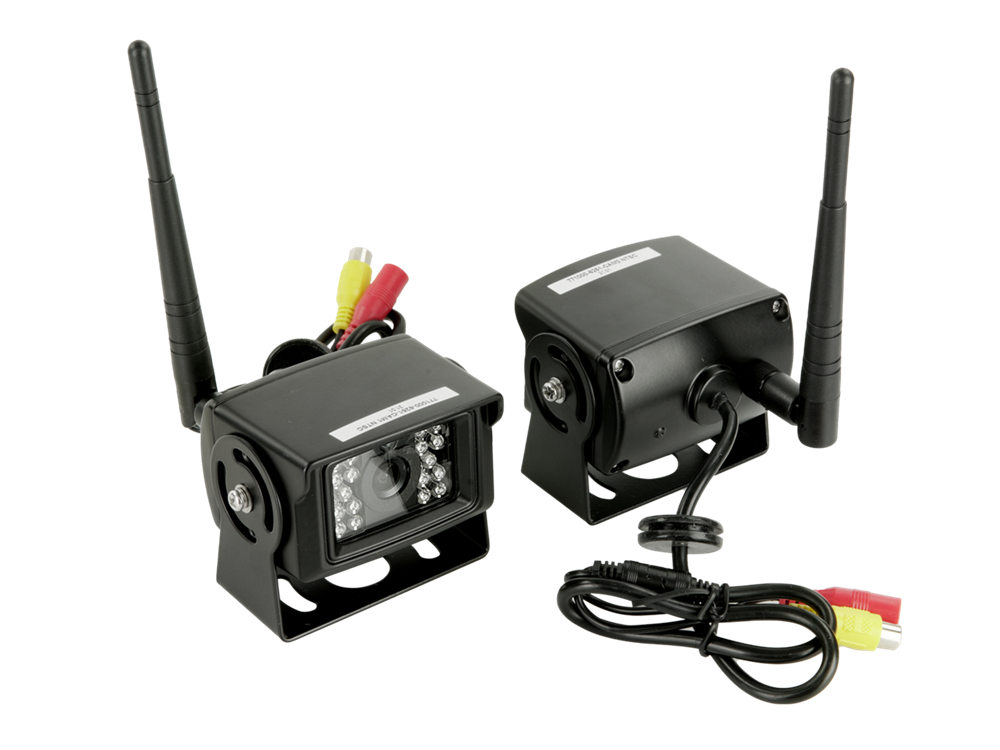

Product characteristic camera:
Design: metal
Color: black
Extras: video transmitter digital / nightview
Image sensor: 1/3" AHD
TV system: NTSC color
Effective pixels: 1280 x 720
Min.Lux: 0 Lux with active nightview
Resolution: AHD analog HD
Lens angle: 120°
View angle: horizontal 90° vertical 55° +5°
IP Rating: IP 68
Terminal: +12V / +24V connector
Power supply: +12V / +24V DC
Current consumption: 200mA during active night vision function
Operating temperature: -30°C - 75°C
Storage temperature: -40°C - 85°C

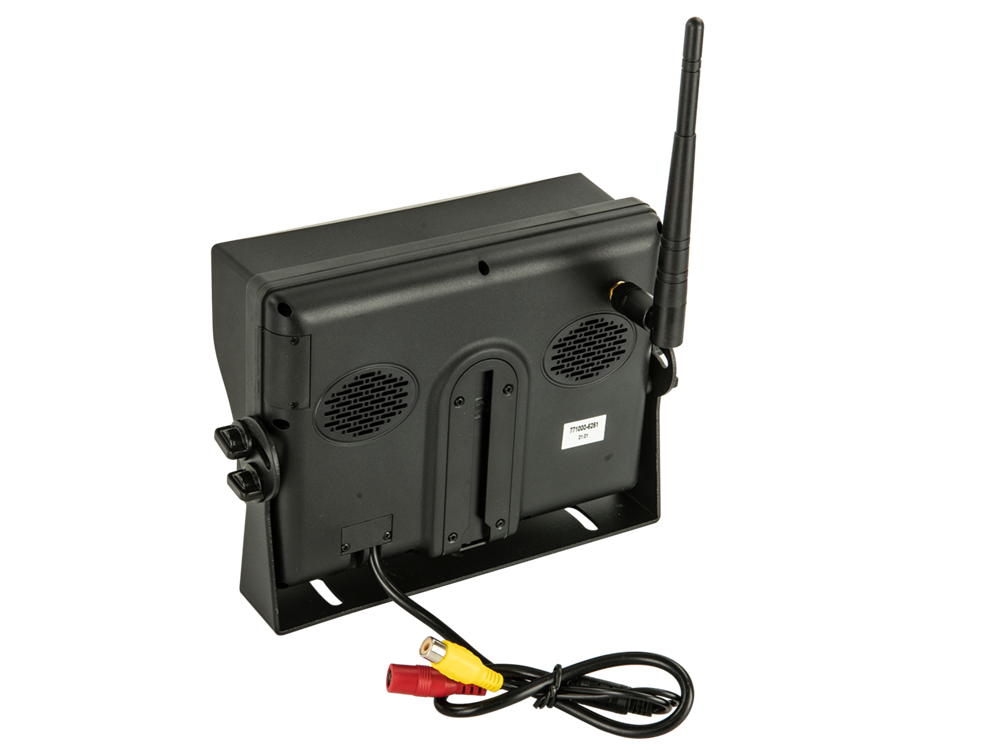

Product characteristic Monitor:
Design: Plastic with metal bracket
Color: black
Extras: glare protection / guiding lines / mirror function
Input: 1 Video RCA(f)
Resolution: 16:9 with 1024 x 600 Pixel RGB
TV System: PAL / NTSC
Terminal: +12V / +24V connector
Power supply: +12V / +24V DC
Pigtail at the monitor:
+12V / +24V connector
RCA(f) yellow: Video
Pigtail at the camera:
+12V / +24V connector
