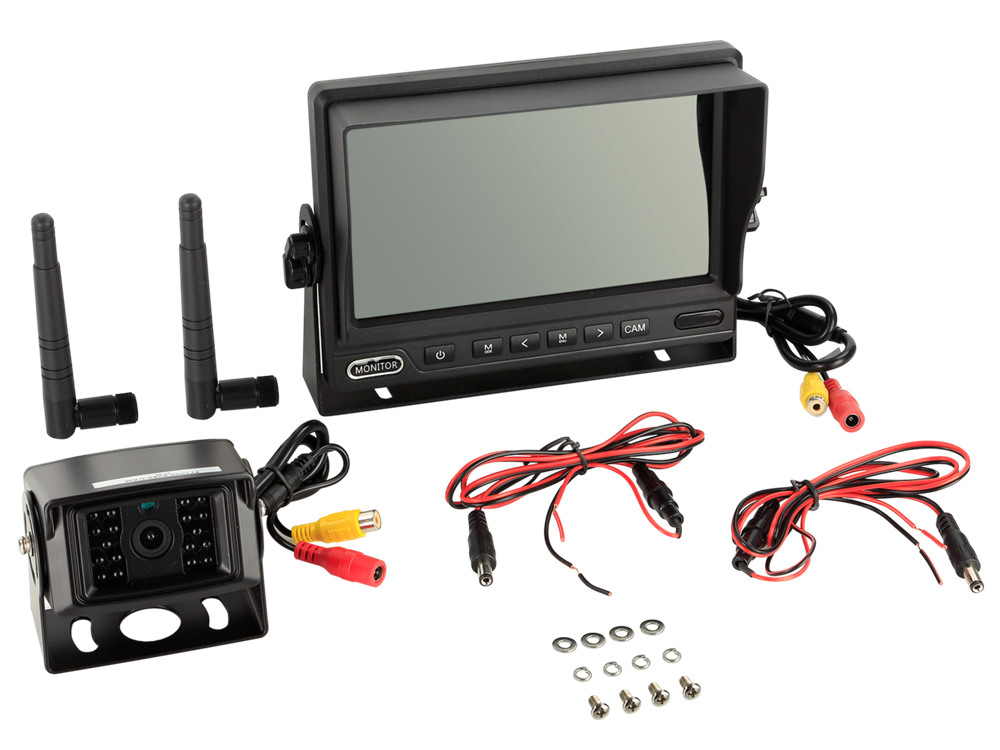

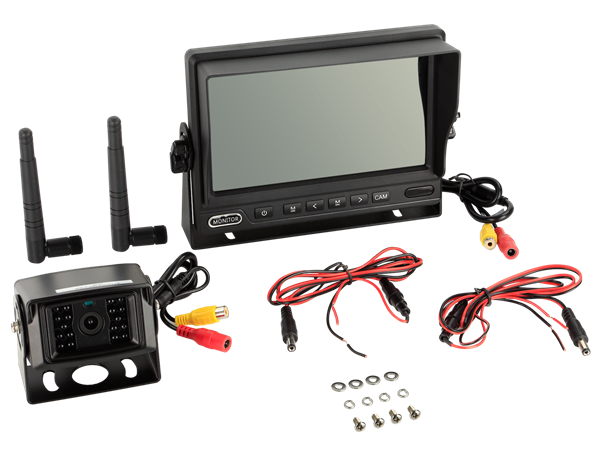

KAMERA KIT TIL KASSE ELLER CAMPER 7" DAG/NAT TRÅDLØS VIDEO OVERFØRSEL

Rear view camera monitor kit

Rear view camera universal video transmitter digital

Design: Transporter / Motor Home
Installation: build-up-construction / roof system

camera Analog HD 1080 Pixel
with nightview

Monitor 7" video transmitter digital

Note:

all acv cameras are suitable for +12V continuous operation

connection camera:
red +12V / +24V switched load-stable (fused)
black ground car body direct

connection monitor:
red +12V / +24V switched load-stable (fused)
black ground car body direct

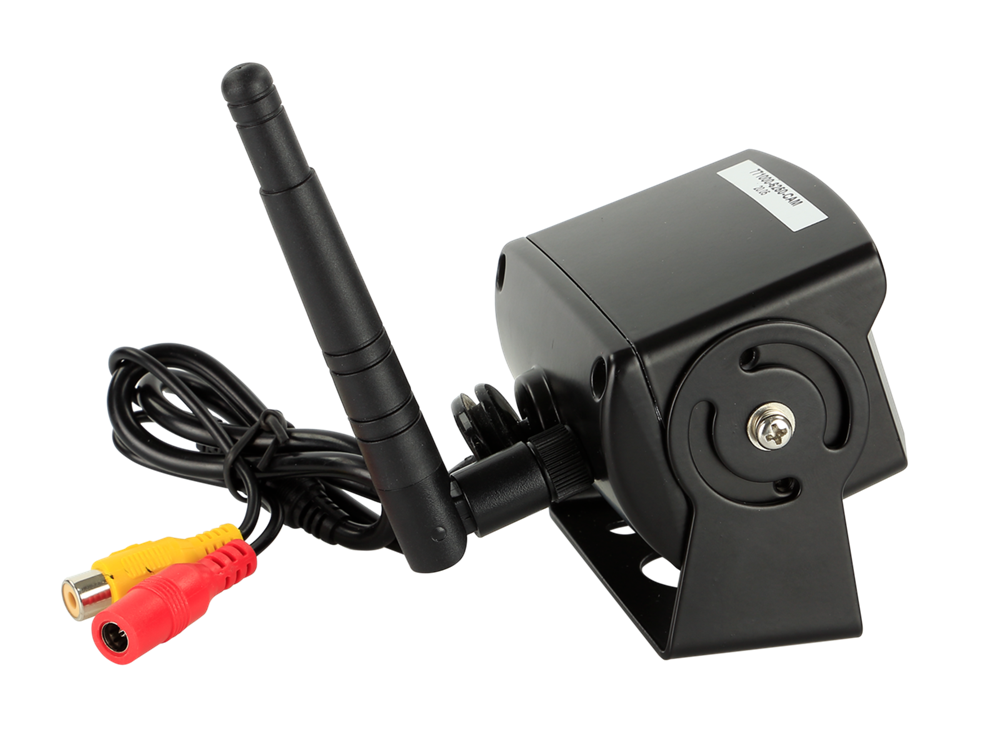

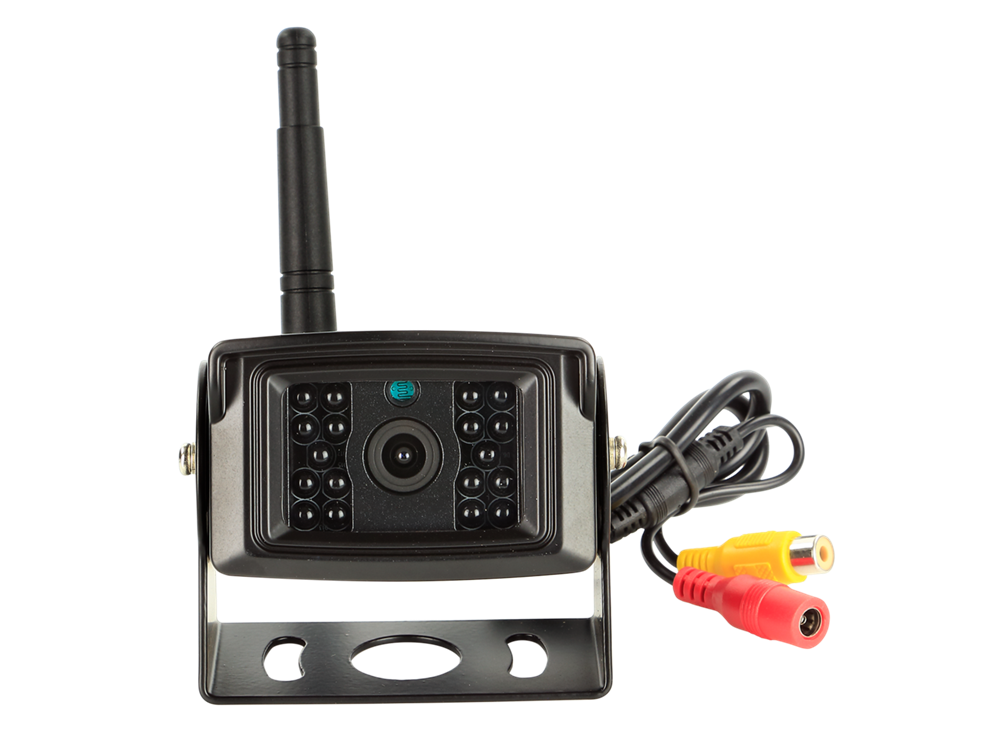

Product characteristic camera:

Design: metal
Color: black
Extras: digital video transmitter and nightview
Image sensor: 1/3" AHD
TV system: NTSC color
Effective pixels: 1280 x 720
Min.Lux: 0 Lux with active nightview
Resolution: AHD (analog HD)
Lens angle: 120° (diagonal)
View angle: horizontal 90° vertical 55° + 5°
IP Rating: IP 68
Terminal: 12V DC connector
Power supply: DC 12V - 24Volt + 10% DC
Current consumption: 200mA during active night vision function
Operating temperature: -30°C - 75°C
Storage temperature: -40°C - 85°C
Measurements: (with brackets) L / W / H - mm / mm / mm

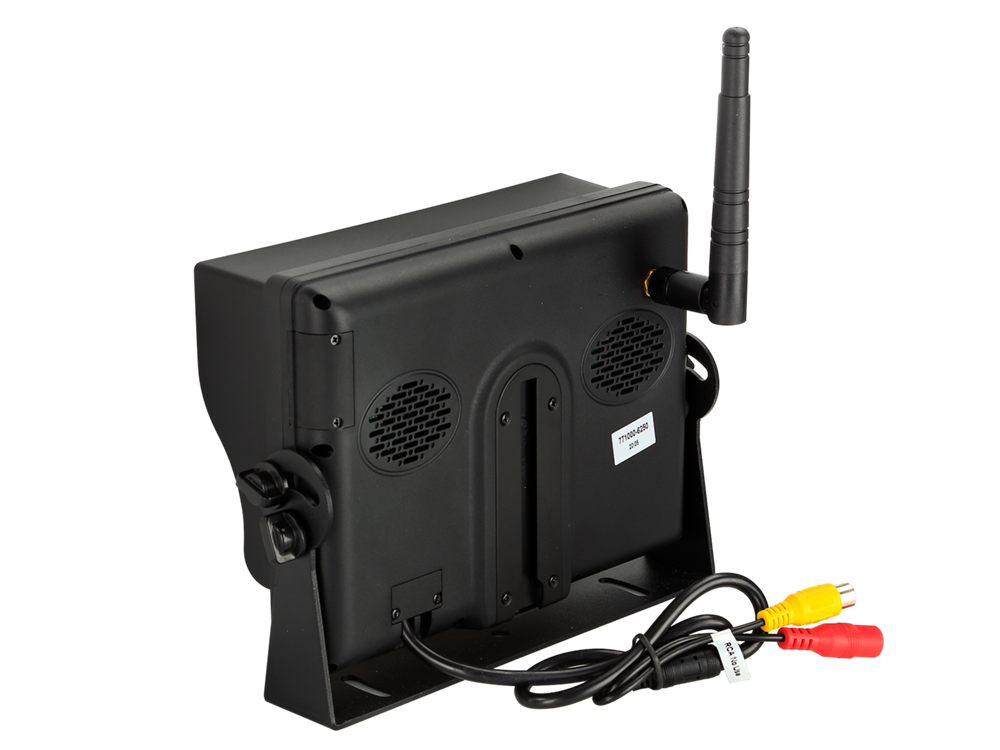

Product characteristic Monitor:

Design: Plastic with metal bracket
Color: black
Extras: glare protection, remote control,
guiding lines and mirror function
1 Video input
Resolution: 16:9 with 1024 x 600 Pixel (RGB)
TV System: PAL / NTSC
Power supply: 12-24V DC + 10%
Measurements: L / W / H - mm / mm / mm

Pigtail at the camera:

Power cable with DC connector for power supply
