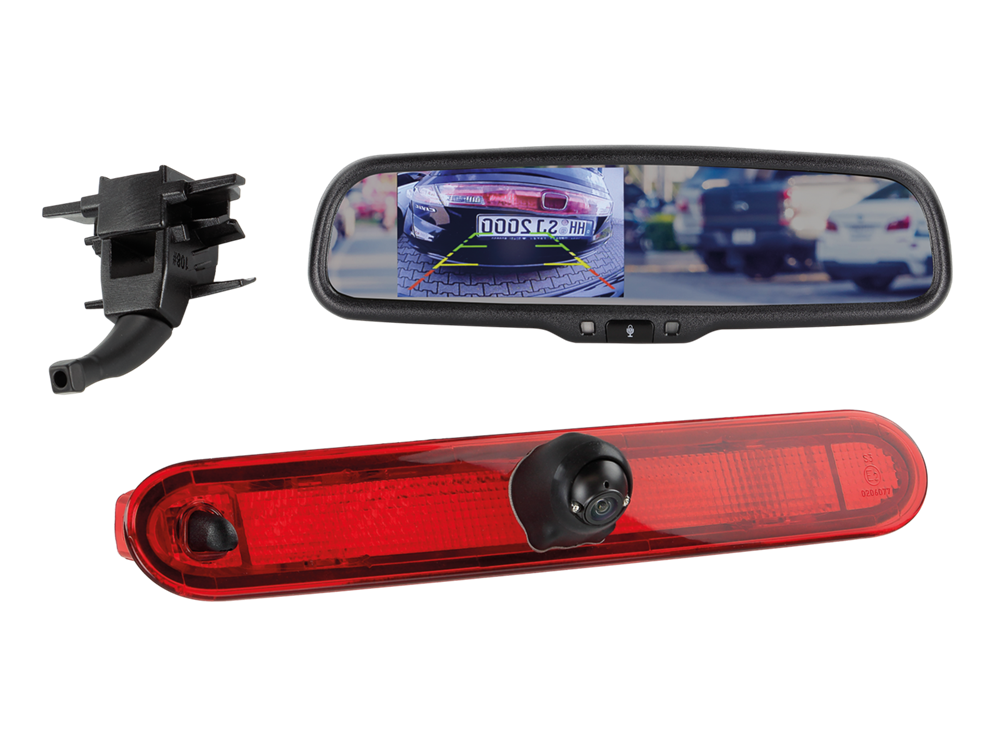

KAMERA KIT CITAN/KANGOO 4.3" SPLIT BAKSPEJL

Rear view camera Mirror moitor Kit 1 Mercedes / Renault

Camera to replace the OEM 3rd brake light:
guiding lines / night view / adjustable view angle

Mirror to replace the OEM mirror:
Mirror monitor 4.3" OEM design / 2 video inputs / extreme high brightness monitor

Vehicle specific bracket for mirror monitor Mercedes/Renault

Note:

all acv cameras are suitable for +12V continuous operation

camera operating voltage: +3V
connection without voltage converter damages the camera

vehicles with single back door
vehicles with double rear door

connection camera:
red +12V switched load-stable (fused)
black ground car body direct

Vehicle application:

Mercedes
Mercedes Citan (W415) 01/2012 - 2021

Renault
Renault Kangoo (W) 03/2013 - 12/2020
Renault Kangoo Rapid (W) 03/2013 - 05/2021
Renault Kangoo Z.E. (W) 05/2013 - 05/2021

Product characteristic camera:

Design: plastic / metal
Color: black
Extras: guiding lines and mirror function via jumper / night view
Image sensor: 1/4" CMOS
TV system: NTSC
Effective pixels: 720 x 576
Lens: 1,9mm / F 2.0
Min.Lux: 0 Lux with activ night view
Resolution: 420 TV lines
Lens angle: 140°
View angle: horizontal 115° vertical 80° + 5°
IP Rating: IP 68
Terminal: 4-pin mini-plug ( male ) 5,2 mm
Power supply: 12Volt DC + 10%
Current consumption: 60mA
Operating temperature: -30°C - 75°C
Storage temperature: -40°C - 80°C
Measurements: diameter 24mm

Pigtail at the camera:

1 Meter cable with 4-pin mini plug (male) 5,2 mm incl. 2 jumpers

6,5 Meter extension cable incl. 3 meter power wire to connect at the reverse light and inlay cable to connect at the power from the device
4-pin mini plug (female) 10 mm and plug (male) 5,2 mm

0,2 Meter power wire harness incl. fuse and video connector (RCA)

Product characteristics monitor:

Design: plastic with metal bracket

Color: black

Extras: extreme high brightness / automatically adjusts brightness of monitor /automatically switches on via trigger wire / remote control included /guiding lines adjustable and can be deactivated

Inputs: 2 video (video/rear view camera)

Resolution: 480 x 272

Aspect ratio: 16:9

Brightness: 2000-2600 lux

Video System: PAL/NTSC (automatically identification)

Power supply: DC 12V

Current consumption: max. 400mA

Operating temperature: -20°C up to +75°C

Storage temperature: -40°C up to +85°C

Measurements: L / W / H 270mm / 85mm / 50mm (without bracket)

Installation accessories:

camera connection to interfaces > Relay solid state close 2V-12V/1,5A max: 40-AD-REMOTE
camera connection to reversing light > Rear viev camera voltage stabilizer reverse switch signal: 771000-6100
