Varenr.: ZE-RCE3804
  • PRIS ER PR. Stk
    Pris ved køb af 1 Stk,1.499,00  DKK
På lager hos vores leverandør

Download manual

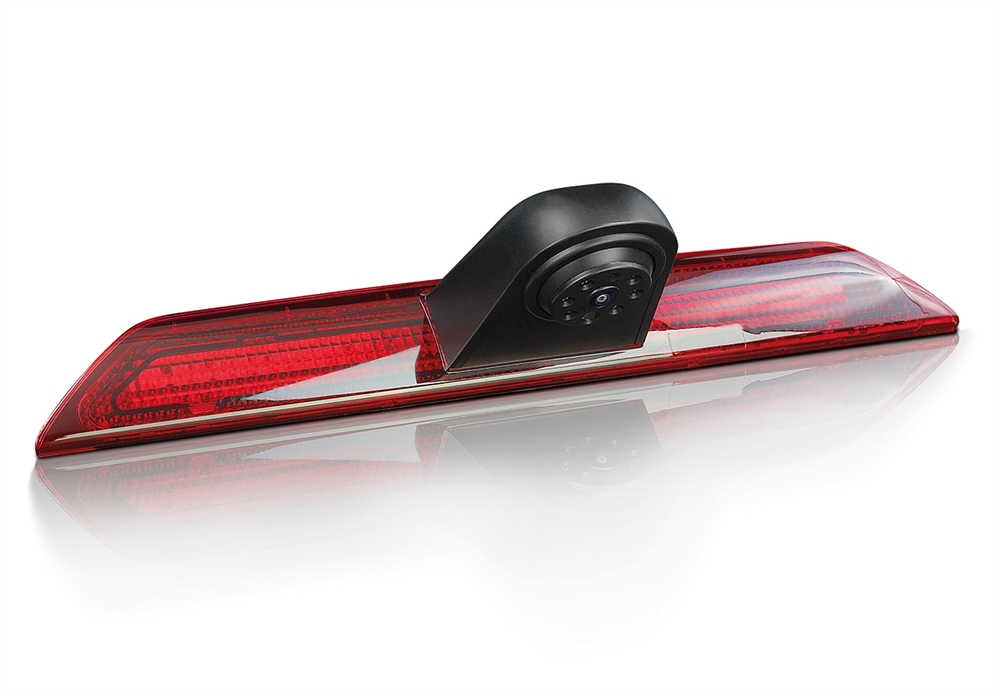

The ZE-RCE3804 from ZENEC is a vehicle-specific, high-resolution rear view camera, specially developed for FORD Transit vehicles and other models identical in construction.
This camera product deploys high quality parts and materials through out, to provide reliable operation and appropriate longevity in the target vehicles mentioned.
The ZE-RCE3804 offers a large diagonal viewing angle. The camera complies with a great variety of moni- and naviceiver models made for rear view cam signal input.

Compatible with
Model Type Model Year
FORD Transit, all versions* 7th Generation 2014 - 2019
FORD Transit, all versions* 7th Generation, 2019er Facelift as of 2019
*Commercial vehicles, vans, minibuses and other versions based on 7th Gen vehicle hull structure such as motorhomes with swing out rear doors and 3rd brake light at rear top section.
Image device Cam: SHARP RJ2331 CCD sensor (with AA9050)
Image sensor type: 1/3“ / 8.5 mm CMOS sensor
TV system: NTSC / 30 fps
View angle: 140° diagonal
Native sensor pixel matrix: 976 (H) x 494 (V)
Image relevant resolution: 700 TV lines
Lens focal length: 2.6 mm
Frame rate: 30 fields/sec., interlaced
Signal to noise ratio: > 48 dB
Dynamic contrast: > 60 dB
Light sensitivity: 30 Lux with IR-LED ON
Video output: 1.0 ±0.2 Vp-p, 75 Ω, CVBS
White balance: Auto
Backlight compensation: Auto
Gamma correction: 0.45
Gain control: Auto
Sync system: Auto
Power supply: 12 DCV
Current consumption (@12 V DC): 80 mA ±10 mA
IP protection rating: IP68
Operating temperature: -20° C ~ +70° C
