KAMERA DUCATO/JUMPER/BOXER 2006 >

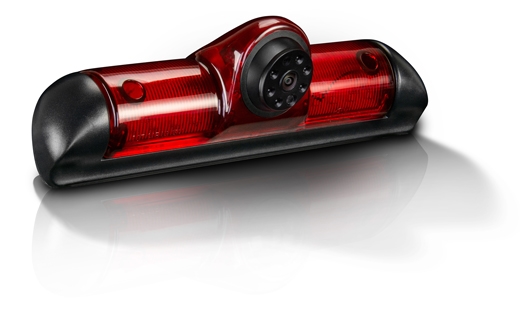

ZENEC‘s rear view camera ZE-RCE3702 replaces the original third brake light of your FIAT Ducato, CITROËN Jumper or Peugeot Boxer.
Of course, you don‘t have to do without the third brake light. An LED brake light is integrated in the ZENEC camera module, for simple “Plug & Play“ retrofit connecting to the specific OE vehicle connector.
An integrated microphone and an IR-LED night illumination system are part of the ZE-RCE3702 cam as well.
This product is compatible with a wide variety of 2-DIN A/V receivers of the aftermarket.
Compact, high-resolution rear view camera for FIAT Ducato, CITROËN Jumper and Peugeot Boxer vehicles
Easy “Plug & Play“ installation
Integrated microphone
LDR controlled day / night mode with 6 night vision IR-LEDs
Manual adjustment of vertical image section in 3 steps
Separable 3-part system cable, with cable lengths of 0.7 m + 15 m +
0.7 m

Image device 1/3“ / 8.5 mm Sony CCD Sensor
Lens focal length f2.6
TV system NTSC / 60 Hz
View angle 120° (D) x 102° (H) x 77° (V)
Native sensor resolution 752 (H) x 494 (V) pixels
Resolution of video-out > 600 TV lines
Frame rate 60 fields/sec
Signal to noise ratio > 48 dB
Light sensitivity 0.1 Lux, 0 Lux if IR on
Video output 1.0 Vp-p, 75 ohms CVBS
White balance Auto
Backlight compensation Auto
Gamma correction 0.45
Gain control Auto
Sync system Auto
Power supply DC 12 V
Current consumption 150 mA (DC 12 V) / ≤ 1800 mW
IP protection rating IP68
Operating temperature -20° C ~ +70° C

Fiat Ducato III 250/251 as of 2006
Citroen Jumper II 250/250D/250L as of 2006
Peugeot Boxer 250/251 as of 2006
