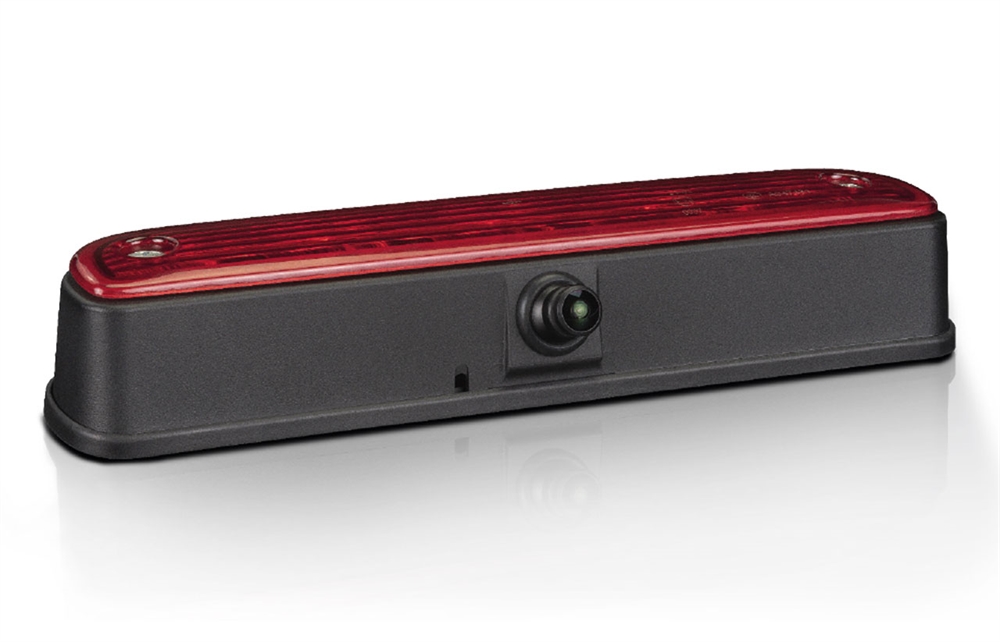

The ZENEC ZE-RCE3703AHD rear view camera has been developed for use with FIAT Ducato III based vehicles and motorhomes in particular. This camera model deploys high quality parts and materials throughout, to provide reliable operation and appropriate longevity in the target vehicles mentioned.
ZENEC‘s AHD camera models (“Analog High Definition“) offer increased image quality due to the newer analog image transmission standard. AHD offers a higher signal transmission bandwidth with optimized color space and, due to the analog transmission, is less susceptible to interference and more cost-effective than digital systems. In practice, AHD camera models therefore have a clear advantage due to the visibly sharper, more natural image.
The special technical feature of the ZE-RCE3703AHD reversing camera model is the selectable output signal via the green function cable. The camera provides 720p AHD or a CVBS video signal at the RCA signal output. Which means, both conventional and newer AHD-capable head units can be combined with this camera model.
The vertically swiveling sensor module allows easy manual adjustment to the desired image capture area.
The large diagonal viewing angle of 160° allows a good overview of the area behind the vehicle, enabling safe backing and parking at all times.
The 15 m long main system cable of the ZE-RCE3703AHD is equipped with mini 4-PIN connectors.
Model Model Type Model Year
FIAT Ducato III 250 2006 - 2023
FIAT Ducato III Series 8 / 9 2021 - 2024
FIAT Ducato III Series 2 as of 2024
CITROËN Jumper II 250 2006 - 2024
CITROËN Jumper II Series 2 as of 2024
PEUGEOT Boxer II 250 2006 - 2024
PEUGEOT Boxer II Series 2 as of 2024
OPEL Movano 250 2021 - 2024
OPEL Movano Series 2 as of 2024
Toyota Proace Max as of 2024
Image device: 1/4“ / 6.09 mm SONY IMX225LQR CMOS sensor
TV system: NTSC
View angle: 160°(D) x 130°(H) x 100°(V)
Native sensor resolution: 1280 (H) x 960 (V) pixels
Video signal resolution: 1280 (H) x 720 (V) pixels
Image frame rate: 30 fields/sec.
Lens focal length: f 1.2
Light sensitivity: 0.5 Lux / 50IRE
Image S/N Ratio: > 48 dB
Video output: 1.0 Vp-p (±0.2 V), 75 ohms, CVBS + AHD
White balance: Auto
Backlight compensation: Auto
Gamma correction: 0.45
Gain control: Auto
Sync system: Auto
Power supply: 5.0 – 24 V DC
Current consumption: 70 mA @12VDC, ≤ 840 mW
IP protection rating: IP69K
Operating temperature: -30° C ~ +75° C
Dimensions (L x W x H): 278 x 35 x 62 mm
AHD rear view camera for FIAT Ducato III vehicles and identical vehicle types for use with selected ZENEC device models and infotainers from other brands which support AHD video signal with 720p / 1080p resolution
Video scaler with selectable AHD or CVBS video output signal
System design integrating the original Ducato brake light, retaining the road use homologation
High quality CMOS picture sensor with AHD 720p output signal and low power consumption
Mechanically adjustable cam angle, to optimize the vertical field of view
Plastic injection main housing with stainless steel fixation bolts
15 m long separable system cable equipped with mini 4-PIN connectors
Protection rating: IP69K certified
*The red brake light reflector is not included in the scope of delivery.
