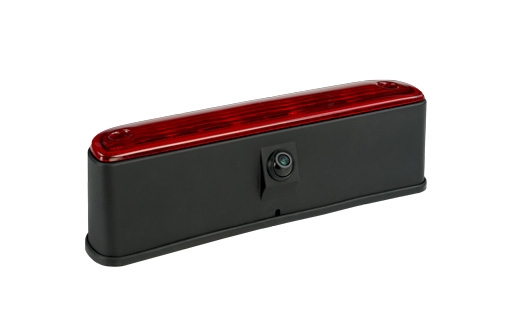

KAMERA DUCATO BASERET CAMPER 2006 >

Image device: 1/4” / 6.4 mm Aptina ASX340AT CMOS sensor
Lens focal length: f 1.9
TV system: NTSC / 60 fps
Viewing angle: 150° (D) x 130° (H) x 85° (V)
Native sensor resolution: 720 (H) x 480 (V) pixels
Resolution of video-out: > 420 TV lines
Frame rate: 60 fields/sec.
Signal to noise ratio: > 48 dB
Light sensitivity: 0.3 Lux
Video output: 1.0 Vp-p, 75 ohms CVBS
White balance: Auto
backlight compensation: Auto
Gamma correction: 0.45
Gain control: Auto
Sync system: Auto
Power supply: DC 6 - 24 V
Current consumption: 40 mA (DC12V) / ¤ 480 mW
IP protection rating: IP69K
Operating temperature: -30° C ~ +75°C, RH 95 % max.

Fiat Ducato III 250/251 as of 2006
Citroen Jumper II 250/250D/250L as of 2006
Peugeot Boxer 250/251 as of 2006
