KAMERA BIBEHOLDELSE FIAT 52PIN / FORD 32PIN 2012 >

Bibeholdelse af originalt kamera ved skift til uoriginal skærm i bilen. Passer til:
Note:

connector: 52 Pin Fiat contacts

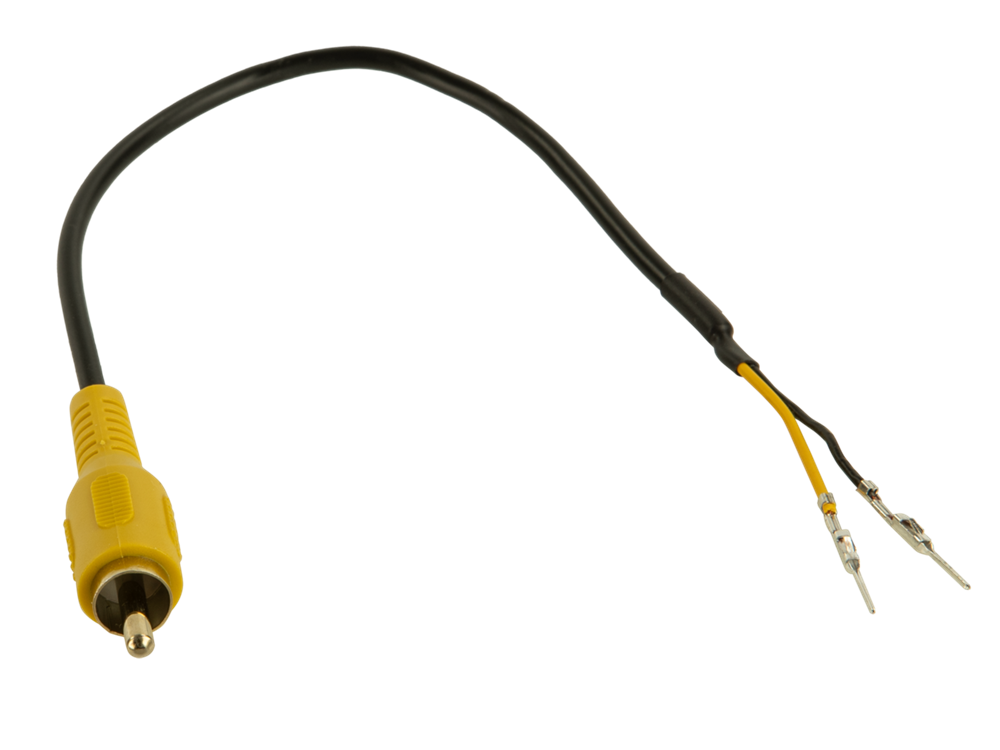

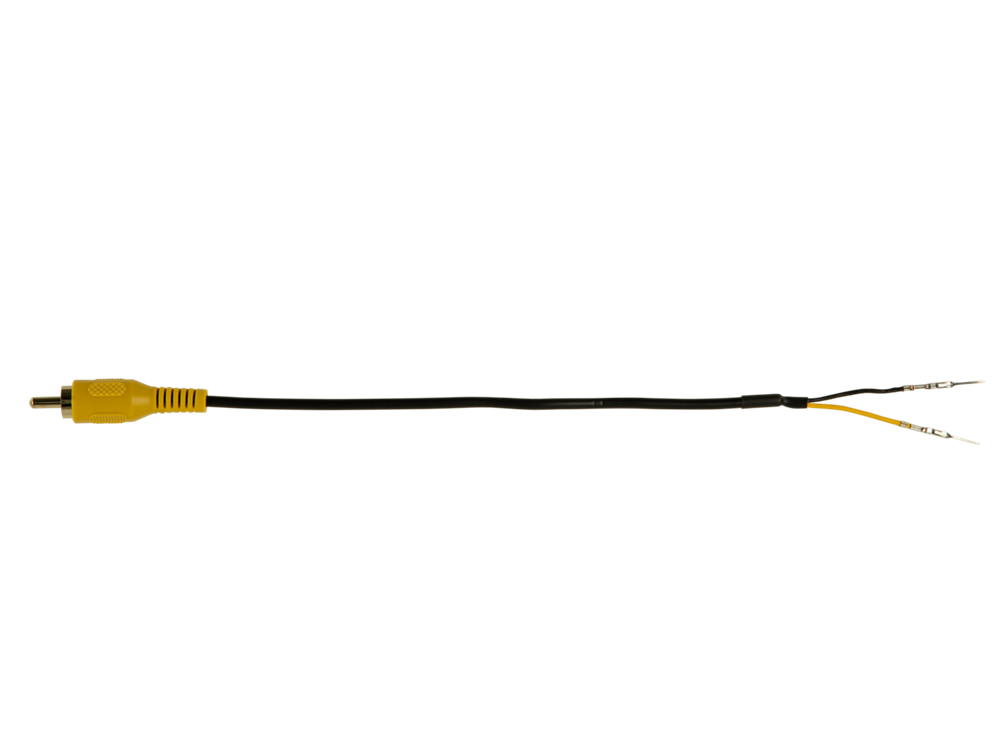

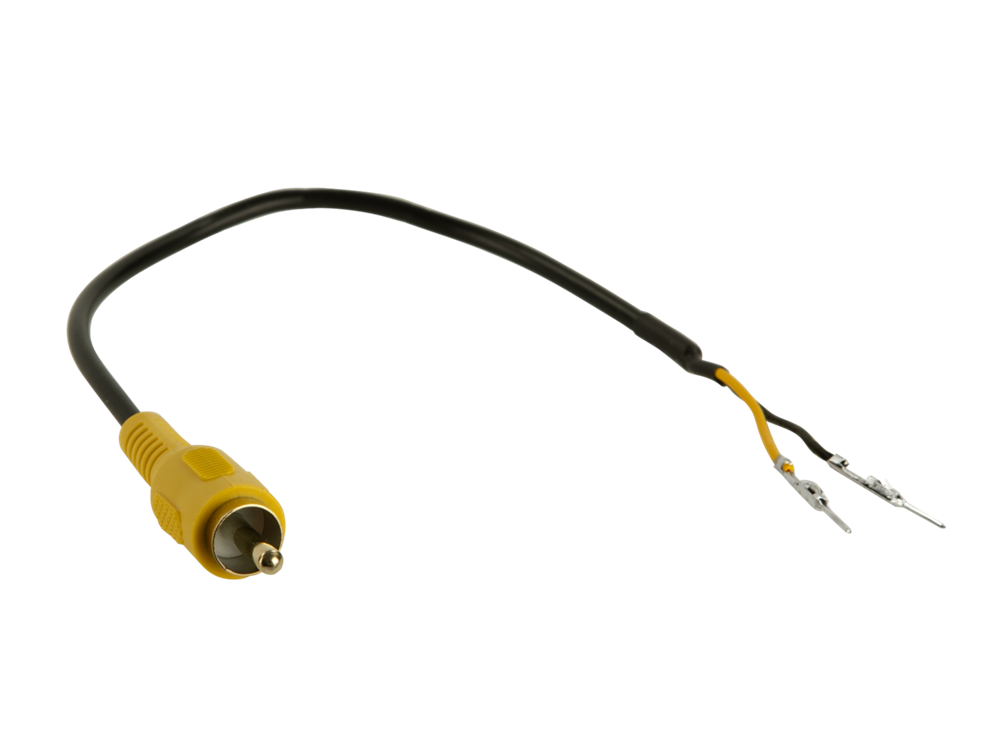

connector: OEM rear view camera > RCA(m) yellow

yellow: Video+
black: Video-

check assignment by measuring before installation

vehicles with 52 Pin Fiat connector OEM rear view camera connection:
red: Pin 31 Video+
white: Pin 32 Video -
black: Pin 33 shield

troubleshooting for flickering camera image: connect shield Pin 33 to GND contact

Ford vehicles with 32 Pin Ford connector OEM rear view camera connection:
Pin 14: Video+
Pin 25: Video-

troubleshooting for flickering camera image: connect Video- Pin 25 to Pin 24

Vehicle application:

Alfa Romeo
Alfa 4C (960) 01/2014 - 08/2018
Alfa Romeo Giuletta (940) 10/2013 - 04/2016
Alfa Romeo Giuletta (940) 04/2016 - 12/2021
Alfa Romeo MiTo (955) 12/2013 - 08/2016
Alfa Romeo MiTo (955) 08/2016 - 08/2018

Citroen
Citroen Jumper (250) 05/2014 - 2024
Citoren Relay (250) 2014- 2024

Fiat
Fiat 500 (ZAF 312) 07/2015 - 2024
Fiat 500L (ZAF 199) 10/2012 - 07/2017
Fiat 500L (ZAF 199) 07/2017 - 03/2022
Fiat 500X (ZAF 334) 01/2015 - 08/2018
Fiat 500X (ZAF 334) 09/2018 - 2024
Fiat Doblo (ZAF 263) 01/2015 - 06/2022
Fiat Ducato (ZAF 250) 05/2014 -11/2021

Iveco
Iveco Daily 2019 - 2024*

Opel
Opel Movano Cargo C (Y) 10/2021 - 2024

Peugeot
Peugeot Boxer (Y) 09/2014 - 2024

*vehicles with Hi-Connect OEM touchscreen HU

General installation instructions:

More connections, connection changes, alternative connections, connections of loose cables or connection extensions of loose cables specified in the information text or the manual are for orientation purposes only and for the information of trained specialist instaler.

More connections, changes to the cable configuration of the wiring harness or use of alternative connections or connection extensions:
1: Connections and changes are to be carried out exclusively by trained specialist installer.
2: Connections and modifications must be checked before connection for any manufacturer approvals or manufacturer warranty conditions that may be affected by the modifications.
3: Connections and modifications must be checked for function and correctness by measuring and comparing them with the vehicle's cable assignment diagram before connection.
4: Connections and modifications are made on the user's own responsibility without guarantee of function.
5: Connections and modifications are made on the user's own responsibility without any guarantee of damage to the vehicle, the retrofit device or the interface.
6: Modifications to the pre-assembled wiring harness may invalidate the product's warranty.
