Bibeholdelse af originalt kamera ved skift til uoriginal skærm i bilen.

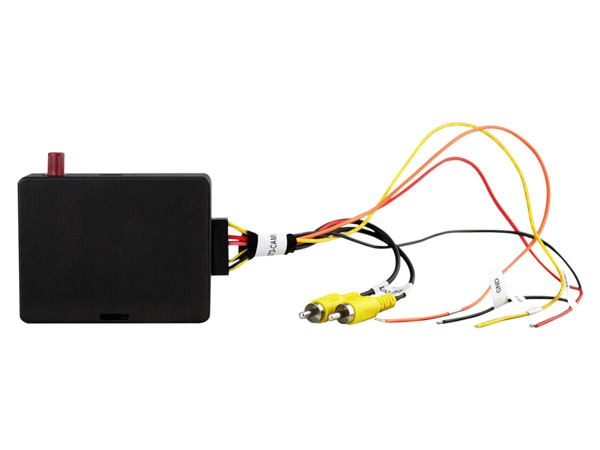

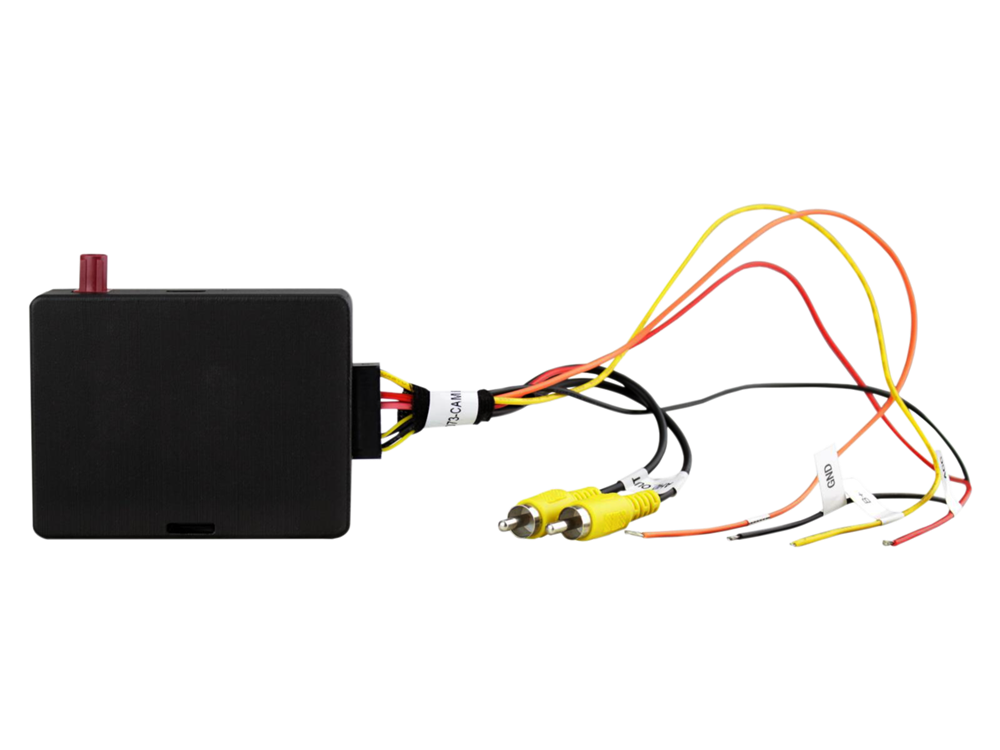

Rear view camera adapter Fiat
Rear view camera adapters are required to maintain the OEM rear view camera.
These allow the connection of a factory pre-equipped camera to an aftermarket device with camera input.
Depending on the vehicle and equipment, the adapter provides the video signal RCA, a power supply +6V/ground for the OEM camera and the +12V revere gerar signal or this must be connected in the vehicle.
Vehicles with a 360° camera system or systems with moving distance lines may not be compatible.
Before installation check the correct assignment of the adapter to the OEM connector.
Many retrofit devices must be set to the camera function in the menu.
Note:
connector: loose wires
connector: OEM camera Fakra(D) > RCA(m) yellow
connection:
yellow: +12V continous current clamp 30 fused
red: +12V ignition clamp 15 fused
black: GND clamp 31
orange: +12V illumination clamp 58 fused for AHD function
Kamerasignal:
RCA(m) yellow > CVBS
RCA(m) yellow > AHD function cut loop pink
RCA(m) yellow > AHD 1060p function cut loop pink / grey
Vehicle application:
Fiat Ducato (ZAF 250) 11/2021 >
